Build Your Recon RIM AM724

All wheels are 100% customizable at Light Bicycle. If your preferred specs are not listed, feel free to contact us (sales@lightbicycle.com) with your special requirements described.

Buy wheelset

Global Shop

NA Shop

EU Shop

AU Shop

Ships worldwide. See what's on sale>>

Drain Hole This is a required option.

With Drain Holes

Center Channel Hole This is a required option.

No Access Holes

Version This is a required option.

Front Flyweight / Rear Standard

Weave This is a required option.

Braided UD

DEFAULT SETTINGS

RIMS

Matte, UD, hook, blank (no decal), 24h

Paintless, UD, blank (no decal), 28h, with access holes

Standard, paintless, hook, blank (no decal), 24h, with drain holes, without access holes

HUBS

DT Swiss 350 Straightpull Centerlock Shimano Road 11s 36t

12/100mm (F) & 12/142mm (R)

DT Swiss 350 Straightpull Centerlock Sram XD 18t

15/110mm (F) & 12/148mm (R) boost

DT Swiss 350 straightpull centerlock Shimano Road 11s 36t

12*100mm (F) & 12*142mm (R)

SPOKES & NIPPLES

Sapim CX Sprint-rear drive side / CX Ray-other sides

Sapim aluminum black external

Sapim CX Ray & Sapim aluminum black external

Sapim CX Sprint-rear drive side / CX Ray-other sides

Sapim aluminum black external

ACCESSORIES

2 valves & 1 spare 18t ratchet

2 valves & 2 adapters (centerlock to 6-bolt)

2 valves & 1 spare 18t ratchet

Note: the wheelset price includes the warehouse transfer cost ($80).

Piece Weight: g+/-

Subtotal: USD +

Lead time: typically ships in 2 days

ADD TO CART You missed some options.

We do not stock this item at the European warehouse. See what we stock currently.

You can order this product from our Global or North American warehouse.

Please fill out this form with your special requests if you want to customize it. We will get back to you in 24hrs via email.

Center Channel Hole This is a required option.

No Access Holes

DEFAULT SETTINGS

RIMS

Matte, UD, hook, blank (no decal), 24h, with drain holes

Paintless, UD, blank (no decal), 28h, with access holes

HUBS

DT Swiss 350 Straightpull Centerlock Shimano Road 11s 36t

12*100mm (F) & 12*142mm (R)

DT Swiss 350 Straightpull Centerlock Sram XD 18t

15/110mm (F) & 12/148mm (R) boost

SPOKES & NIPPLES

Sapim CX Sprint-rear drive side / CX Ray-other sides

Sapim aluminum black external

Sapim CX Ray & Sapim aluminum black external

ACCESSORIES

2 valves & 1 spare 18T ratchet

2 valves & 2 adapters (centerlock to 6-bolt)

Note: the wheelset price includes the warehouse transfer cost ($80).

Piece Weight: g+/-

Subtotal: USD + (discount price)

Lead time: typically ships in 3 business days

ADD TO CART You missed some options.

We do not stock this item at the Australian shop. See what's available.

You can order this product from our Global / NA shops.

Please fill out this form if you are looking for a custom wheelset.

We'll get back to you soon to study the customization requests via email.

Our apologies, we do not offer this item at the Global warehouse.

Please order from other warehouses. Feel free to contact us (sales@lightbicycle.com) if you want to customize. We’ll get back to you in 24hrs.

Our apologies, we do not stock this item at the North American warehouse. Check this link to see what items we stock, or send us an email to discuss.

Our Global warehouse can make any rim model and ship worldwide. Please fill out this form with your special requests if you want custom rims/wheelset. We will get back to you via email to discuss in 24hrs.

Shopping Style

Options Features	Quick Buy	Full Custom
Options Features	Inventory	Parts in stock (Assembled upon order)	Manufactured upon order
Customization	Least customizable	100% Customizable
Lead Time	≤ 3 days	4 weeks typically
Availability	Limited models	All models
Shipping	Worldwide	Worldwide

Quick Buy (In Stock)

Full Custom (Made to Order)

DEFAULT SETTINGS

Rims

Hook, matte, UD, with drain holes

Hook, matte, UD, with access holes, with drain holes

Standard, hook, paintless, UD, 5-year warranty, with access holes, with drain holes

Front Flyweight / Rear Standard, paintless, UD, 5-year warranty, no drain holes

Paintless, UD, 5-year warranty, no drain holes

Grooved graphene surface, hook, matte, UD, with access holes, with drain holes

Grooved graphene surface, hook, matte, UD, no access holes, with drain holes

Matte UD, 32H, Centered (Staggered)

Hubs

Hope Pro 4 Fatsno J-bend 6-bolt

15/150mm (F) & 12/197mm (R) Sram XD

Straightpull centerlock black 24H

12/100mm & 12/142mm

Shimano Road 11S

DT Swiss straightpull / Bitex j-bend, centerlock, 28H

J-bend, DT Swiss 6-bolt / Bitex centerlock, 32H

15/110mm boost & 12/148mm boost Sram XD

DT Swiss straightpull / Bitex j-bend, black, 20H front / 24H rear

100mm QR & 130mm QR Shimano Road 11S

Spokes

Sapim CX Ray black

Sapim D-Light

Accessories

No decals/valves/tape

No decals/valves/tape/pads

No decals/valves

Piece Weight: g+/-

Subtotal: USD +

Lead time:

ADD TO CART

Version This is a required option.

AM724

Hole Count This is a required option.

Please note that our valves are drilled for presta and spoke holes are made for external nipples by default.

Full Custom: This option (if provided here to choose) offers custom drilling for any other hole counts or special drilling (e.g G3/ 2:1 etc), most of which are at no extra charge. If you select this option and LEAVE YOUR TAILORED REQUIREMENT IN THE NOTES AT CHECKOUT, we will reach out to you once the order is placed.

24H

28H

32H

36H

Full Custom

Finish This is a required option.

Matte is slightly lighter and a more subtle finish (most popular). Glossy has a shine to it.

Full Custom: This option (if provided here to choose) offers custom finish such as Satin/Raw etc at no extra charge but subject to rim models with 3-5 days LONGER on manufacture. And custom color painting is also available with added 15g/rim and extra $20USD/rim as a start. If you select this option and LEAVE YOUR TAILORED REQUIREMENT IN THE NOTES AT CHECKOUT, we will reach out to you once the order is placed.

Glossy

Matte

Full Custom

Weave This is a required option.

The layup schedule is predetermined for each model, but you can choose the outer layer for cosmetic appearence.

The rim strength & weight is virtually identical.

Matte UD is the most popular and has a subtle look.

The futuristic Hexa-Comb and Braided UD are smooth and looks great on deep rims.
More info about Weave >>

Full Custom: This option (if provided here to choose) offers custom weaves such as 3k twill vertical/ horizontal/ Braided UD etc with extra charge of $15USD/rim as a start but subject to rim models with 3~5 days LONGER on manufacture. If you select this option and LEAVE YOUR TAILORED REQUIREMENT IN THE NOTES AT CHECKOUT, we will reach out to you once the order is placed.

12K

Full Custom USD +15

Drain Hole This is a required option.

The two small drain holes located 90° to the valve hole effectively help evacuate both the water trapped inside the rim and the air leaking into the rim chamber caused by nonperfect tubeless tape sealing handwork that may risk rim explosure in an aggressive tire inflating.

It is the small reinforced layer prelaminated on the area where the drain hole is drilled later that makes the rim strength fairly ensured without any compromise of weight added.

Riders who ride in wet areas are suggested to order rims with drain holes.
More info about holes >>

With Drain Holes

No Drain Holes

Decal This is a required option.

The new graphics are included and available in 7 colors. The decals are now easily replaceable so you can keep your rims looking fresh.

Silver

Blue

Green

Magenta

Orange

Red

Yellow

Blank (No decal)

Valve Stem This is a required option.

We use a lightweight black alloy anodized valves with an oversized concave collar for easy gripping. A rubber o-ring goes in between the rim and the collar to help seal the rim and match the contour of the rim profile. The valve core is removable so you can add sealant without removing your tire.
Link to tubeless valve instructions

None

Add Valve Stem USD +7 each

Tubeless Tape This is a required option.

Add Tubeless Tape: A roll of 10-yard-long tape is provided separately as parts to do the favor for those who treasure the dirt in the hand and are passionate in DIY stuff.
Information of tubeless rim tape

Apply Tubeless Tape: In Light Bicycle, a proprietary taping aid works with our wheel builders to guarantee that a solid taping craft at industrial-level is well implemented in order for you to ride carefree tubeless at any conditions.

You do NOT have to use any tubeless tape to run tubeless if you have chosen "No Access Holes" on the rim center channel.

None

Add Tubeless Tape USD +6 each

Recon Pro orders start shipping in October.

- + PCS

Piece Weight: 385.00g+/-15

Subtotal: USD 154+

PREVIOUS NEXT

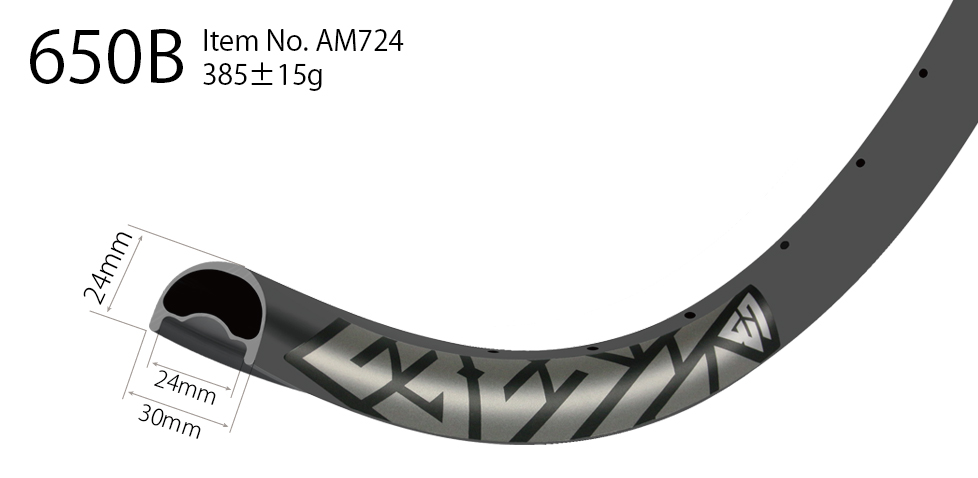

RIM SPECS

Model AM724
Material Toray T700 & T800 Premium Carbon Fiber
Size 27.5"/650B (ETRTO 584mm)
Series RECON
Intended Use Cross Country/ All Mountain
Bead Type Hookless
Tubeless Capable Yes
Inner/Outer Width 24mm/30mm
Depth 24mm
ERD 553mm (not including nipple head dimension)
Rim Weight 385+/-15g

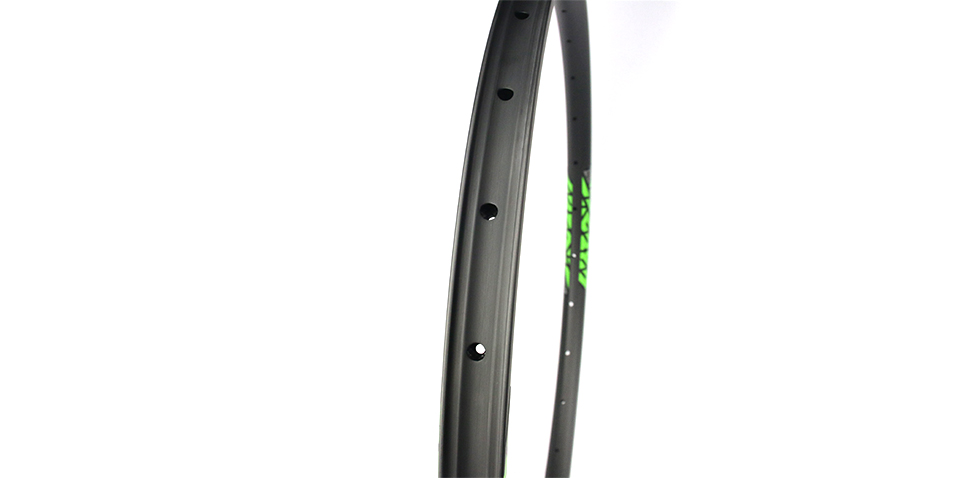

Profile Asymmetric (2.6mm)
Max Cyclist Weight (on flat ground) 125kg/ 276lbs
Spoke Hole Angle ±5°
Spoke Tension 115~130kgf front disc side and rear drive side
Max Tire Pressure 40psi/ 2.75bar
Recommended Tire Width 2.0" ~ 2.4"

Light enough for racing, the AM724 is tough enough to handle the demands of everyday all-mountain riding. Whether you are running race tires or mounting up some beefier trail treads, the 24mm inner width provides a versatile platform to build up a lightweight wheelset.

Using our modern hookless U-Shaped profile, bead seat bumps, and tubeless ready profile, the AM724 is designed to exceed the demands of today's hard charing trail and all-mountain riders, without added weight. The additional stiffness of carbon fibre over your alloy rims will have you railing turns and blasting through rough terrain with new-found confidence.

Rims

Our Pro series comes with a 5-year warranty (lifetime optional), while the non-pro with a 3-year warranty and crash replacement.)

Model: AM724
Material: Toray T700 & T800 Premium Carbon Fiber
Size: 27.5"/650B (ETRTO 584mm)
Series: RECON
Intended Use: Cross Country/ All Mountain
Bead Type: Hookless
Tubeless Capable: Yes
Inner/Outer Width: 24mm/30mm
Depth: 24mm
ERD: 553mm (not including nipple head dimension)
Rim Weight: 385+/-15g
Profile: Asymmetric (2.6mm)
Max Cyclist Weight (on flat ground): 125kg/ 276lbs
Spoke Hole Angle: ±5°
Spoke Tension: 115~130kgf front disc side and rear drive side
Max Tire Pressure: 40psi/ 2.75bar
Recommended Tire Width: 2.0" ~ 2.4"

Full Custom

Get in touch with us (sales@lightbicycle.com) to discuss in detail your customization request.

Hole: Hole Count, Spacing, Pattern, Drilling Angle, Diameter
Finish: Matte, Glossy, Satin, Colored Paint
Weave: UD, 3K, 3K Twill (Vertical/Horizontal), 12K, 12K Twill (Vertical/Horizontal), Braided UD, Hexa-Comb
Brake Track: UD, 3K, 3K Twill (Vertical/Horizontal), 12K, 12K Twill (Vertical/Horizontal), Braided UD, Hexa-Comb
Weight Style: Standard, Flyweight, Ultra-Light, Heavy Duty, HD+

Explore more Full Custom services

Please carefully inspect your package when unboxing it and contact us immediately if it is damaged or if anything is missing.

Together we can make this planet better. Join our sustainability program to reduce paper waste using digital docs.

Download user guides >>

Overview

Light enough for racing, the AM724 is tough enough to handle the demands of everyday all-mountain riding. Whether you are running race tires or mounting up some beefier trail treads, the 24mm inner width provides a versatile platform to build up a lightweight wheelset.

Using our modern hookless U-Shaped profile, bead seat bumps, and tubeless ready profile, the AM724 is designed to exceed the demands of today's hard charing trail and all-mountain riders, without added weight. The additional stiffness of carbon fibre over your alloy rims will have you railing turns and blasting through rough terrain with new-found confidence.
Specs
Rims

Model: AM724

Material: Toray T700 & T800 Premium Carbon Fiber

Size: 27.5"/650B (ETRTO 584mm)

Series: RECON

Intended Use: Cross Country/ All Mountain

Bead Type: Hookless

Tubeless Capable: Yes

Inner/Outer Width: 24mm/30mm

Depth: 24mm

ERD: 553mm (not including nipple head dimension)

Rim Weight: 385+/-15g

Profile: Asymmetric (2.6mm)

Max Cyclist Weight (on flat ground): 125kg/ 276lbs

Spoke Hole Angle: ±5°

Spoke Tension: 115~130kgf front disc side and rear drive side

Max Tire Pressure: 40psi/ 2.75bar

Recommended Tire Width: 2.0" ~ 2.4"

Full Custom

Get in touch with us (sales@lightbicycle.com) to discuss in detail your customization request.

Hole: Hole Count, Spacing, Pattern, Drilling Angle, Diameter

Finish: Matte, Glossy, Satin, Colored Paint

Weave: UD, 3K, 3K Twill (Vertical/Horizontal), 12K, 12K Twill (Vertical/Horizontal), Braided UD, Hexa-Comb

Brake Track: UD, 3K, 3K Twill (Vertical/Horizontal), 12K, 12K Twill (Vertical/Horizontal), Braided UD, Hexa-Comb

Weight Style: Standard, Flyweight, Ultra-Light, Heavy Duty, HD+

Explore more Full Custom services
Tech

Learn More >>
Warranty

For Non-Pro Series Rims: From the date of purchase, 3-year Standard Warranty.

For Pro Series Rims: From the date of purchase, 5-year Pro Warranty as standard and an upgraded optional lifetime Premium Warranty with minimum charge.

Crash Replacement: It is applicable with the same period as the warranty time range that you purchased for the rims with 10% /25% discount for Non-Pro series /Pro series.

Learn More >>
In The Box

Please carefully inspect your package when unboxing and get in touch with us immediately if the package is damaged or anything is missing.

Together we can make this planet better. Join our sustainability program to reduce paper waste with the use of digital manuals.

Download user guides >>

Gallery

Sergei : It’s wonderful rims. Very light and very fast.

Russia

am724-carbon-wheelset-maxxis-ardent-race-2.35-tubeless-tires

Bernd : I was looking for a carbon wheelset for my 2014 Santa Cruz Nomad that I could build myself and found Lightbicycle through Ali Clarkson's wheel building instruction video. Getting in contact with Lightbicycle was easy and with their recommendation, I chose the AM724 (RM650BC19) rim with DT comp spokes (they were also helping me to figure out the right spoke length for the existing hubs that I planned to reuse). After ordering I was able to see the progress of the rim manufacturing process every step of the way, which I think is a very nice feature. Rims arrived and building the wheels was a breeze! The Maxxis tires went on the rim with a regular floor pump, which was a first for me - in the past I always had to use air boosts to seat my tubeless tires. I have ridden the wheels for about 300 miles by now and am really happy with their performance and stability - acceleration and stiffness are very good for the riding that I am doing.

United States

neon-yellow-light-bicycle-mountain-rim-decals

Light Bicycle : Custom decal color, Pantone 877c, Neon Yellow AM724 matte UD 32H

View More Reviews >>

COMMENTS

Enrico 2019/11/25

Hi, I'm planning to build a wheelset for a gravel bike with 650b rims, Do you have a rim with 24-25 mm width around this weight (less then 400 gr) that can accept a higher pressure ( 50 psi)?thanks Enrico

LightBicycle 2019/11/30

Hi Enrico, Yes, we do have new 650b gravel bike rims that with 24mm inner / 30mm outer width, 35mm depth, you can see the rim profile from the attachment. The rim is with hook bead so it can take much higher tire pressure (under 130psi). Will this rim be the one that you are looking for? Thanks, Lightbicycle

Marc 2020/03/29

Which model gravel rim is that? I do not see any 650b matching that description but it is exactly what i am looking for!

LightBicycle 2020/03/30

Hi Marc, The 650b rim that mentioned in the comment area is the model 650B gravel (24mm internal/30mm outer width, 35mm depth). Will expecting available online soon considering many audiences fond of this asymmetrical 650b gravel rim already. We can work on invoice for you if you are ready to order. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Adam 2020/01/21

Is this rim available in a hooked profile? Or is there another model that is 650b, hooked profile, and similar depth (not width) of 24 mm?

LightBicycle 2020/01/22

Hi Adam, 1. What kind of riding you plan to do with AM724 (24mm internal/30mm outer width, 24mm depth) 650B gravel? The design intention for the rim is Cross Country and All-Mountain riding. Normally, you should ride under 40psi under that condition. So the hookless design is good enough to keep the tire well seated. 2. We do have a 650b gravel rim that is with a close rim profile to AM724 and with a hooked bead. The AR36-650B-disc is with 22.4mm internal / 29mm outer width and 36mm depth. Will the rim depth ok with you? Some people also use it as a cross country rim. 3. You can learn more about the gravel rim AR36-650B-disc on this page. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Jim 2017/10/24

I'm concerned with tires fitting correctly. Can you tell me how tall the sidewalls are from the bead seat to the top? Will the rim work for high pressure road plus?

LightBicycle 2017/10/24

Hi Jim, For AM724 rim, it is 5.5mm from the top of the rim to the bead seat. We recommend to use less than 40psi on AM724 rims. There will be a risk to have tire blow out problem if it is with higher tire pressure. We recommend our RG722 rim for you(as attached). It's 650b rim and hook design. Hook rim can run as much as 120 psi tire pressure. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Andrew 2017/04/21

Is the weight limit per wheel or for both? I assume bike rider bags

LightBicycle 2017/04/24

Hello Andrew, Thanks for your inquiry. The weight limit is for a complete wheelset. But it is just an approximate estimation. Sorry, what do you mean of “I assume bike rider bags”? The AM724 is design for gentle all mountain riding. Or we have a wider and stronger wheel 34mm width. May I know your weight? What is your riding terrain normally? Do you ride aggressively? Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Andrew 2016/08/21

Can I put a 2.5 wide tire on this rim?

Light-Bicycle 2016/08/22

Hello Andrew, Thanks for your inquiry. The recommended tire width for AM724 are 2.0''-2.4''. In theory, the rim is able to work with 2.5'' tire also. May I know what your riding terrain is normally? Do you ride aggressively? What is your weight? Then we will double check which rim is more suitable for you and quote accordingly. Because we have some wider rims worked with 2.5’’ tire well. Thanks, Light-bicycle

Andrew 2016/08/22

Ok thank you for replying. I am a very aggressive rider, and are terrain is very lose dirt, I weigh 110 lbs and I already bought these rims and they are great.

Light-Bicycle 2016/08/23

Hello Andrew, We are happy to hear that you like our rims! You can email us at sales@lightbicycle.com We can reply your questions directly through email. Thanks, Light-bicycle

Andrew 2016/08/23

My friend orders the rims for me and they are the AM724

Light-Bicycle 2016/08/24

Hello Andrew, Okay, thanks for both of your support. We are so happy you are enjoying your new rims. It would be great to see some pictures of them on your bike. Thanks, Light-bicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Chris 2016/06/23

Looking at your Am74 650b rims. Is that price of 249 for one pcs .....one or two rims?

Light-Bicycle 2016/06/24

Hello Chris, Thanks for your inquiry. The rim price on our website is for single rim. Thanks, Light-bicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

dennis 2016/05/20

I assume that when you say asymetric you mean that the spoke holes are offset from center. If so how many mm are the holes offset?

Light-Bicycle 2016/05/20

Hello Dennis, Thanks for your inquiry. The asymmetrical rims are with 2.6mm offset. Rim profile attached is for your reference. Thanks, Light-bicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Dvae 2016/03/20

I just purchased the AM724 (650B). Going to build them up with Industry 9 torch hubs. Can you tell me the right spoke length? Thanks! Dave

Light-Bicycle 2016/03/21

Hello Dave, Thanks for your support. For spoke length, it also depends on the spoke pattern you use. The AM724 rim ERD is 553mm. You can use below link & attached picture to get correct spoke length. http://www.prowheelbuilder.com/spokelengthcalculator/ You have to fill in rim ERD 553mm, choose the I9 hubs and spoke pattern. Then you can get correct spoke length. Or you can calculate the spoke length once getting the rims, to ensure the correct length you order. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

See all 8 customer reviews>>

Get in touch

Feel free to leave a comment if you have any questions or suggestions on our products or other issues.

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Build Your Recon RIM AM724

Overview

Specs

Tech

Warranty

In The Box

Rims

Full Custom

Overview

Specs

Rims

Full Custom

Tech

Warranty

In The Box

Gallery
