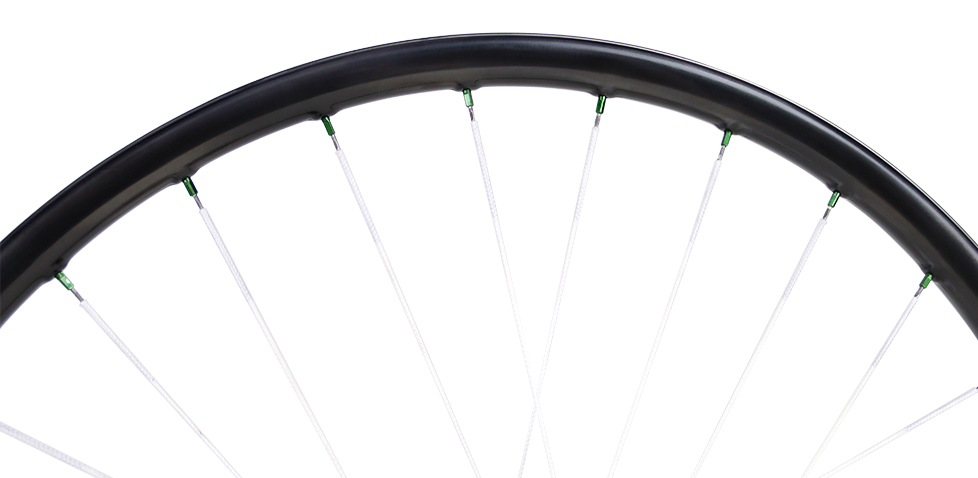

Helios-XC930-Ultra-low-weight-tubeless-ready-wheelset-engineered-for-modern-XC-riders

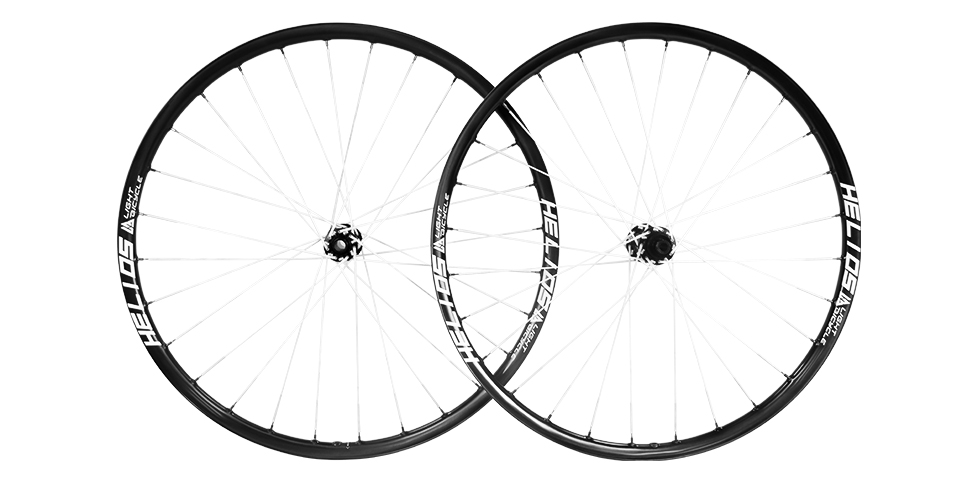

lightbicycle-Helios-xc930-with-bred-spoke-wheelset-cross-country-super-light-wheelset

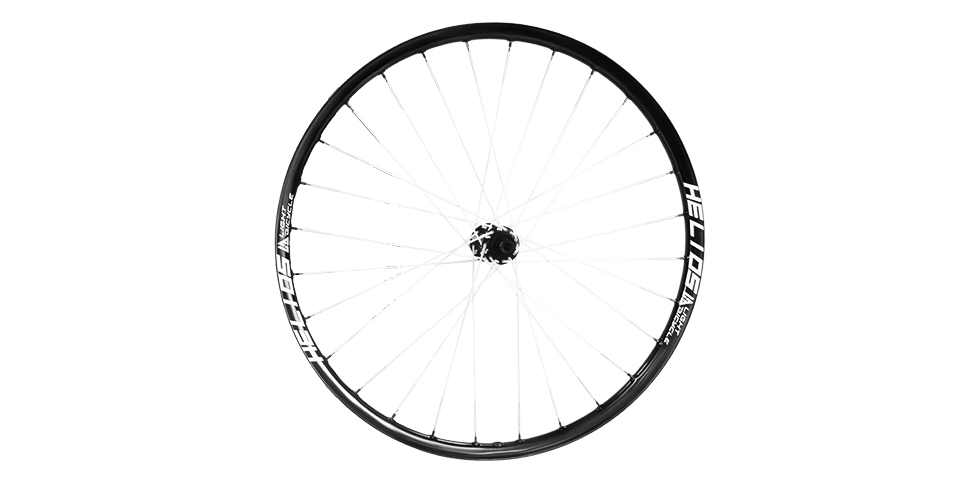

Helios-XC928-mtb-wheelset-weighs-an-incredible-960g-a-pair

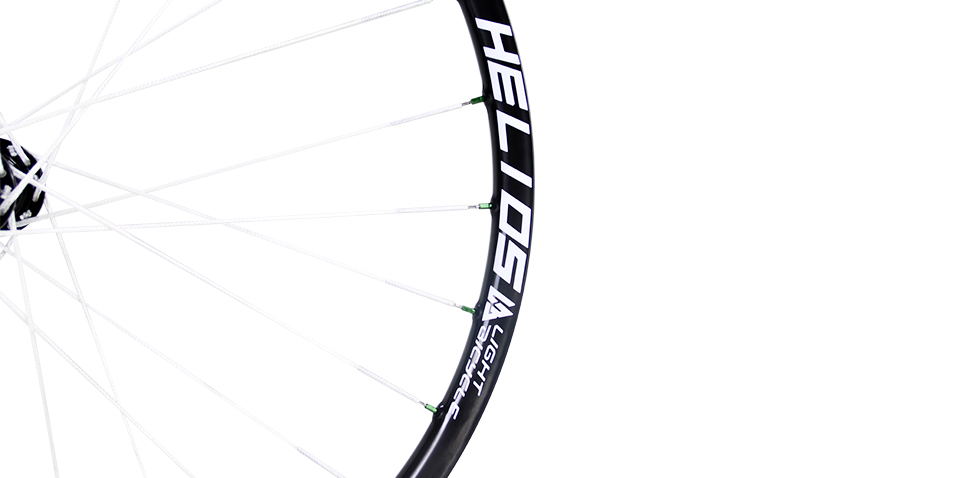

Helios-XC928-29er-mtb-28mm-internal-width-asymmetric-carbon-cross-country-wheelset-590mm-erd-full-customize

Build Your Recon Pro WHEELSET WMHelios-XC930

All wheels are 100% customizable at Light Bicycle. If your preferred specs are not listed, feel free to contact us (sales@lightbicycle.com) with your special requirements described.

Buy rim only

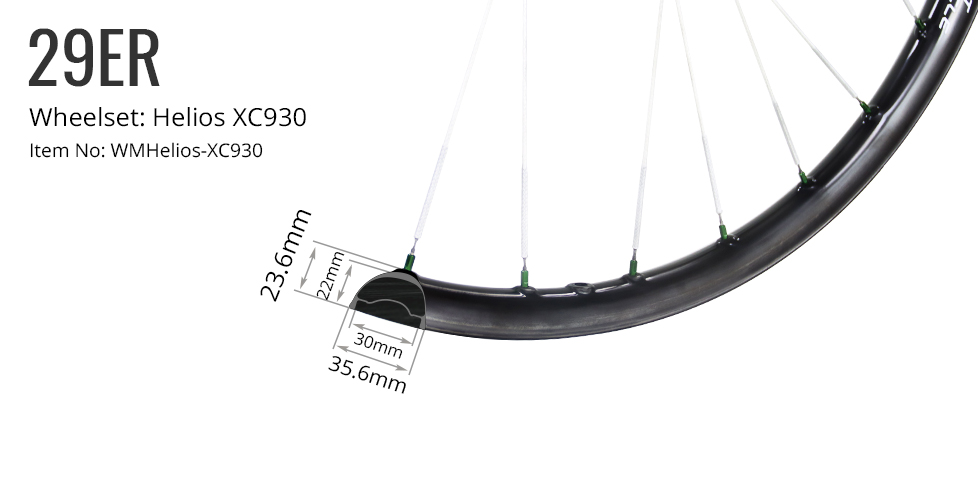

WMHelios-XC930

Global Shop

US Shop

CA Shop

EU Shop

Ships worldwide. See what's on sale>>

Center Channel Hole This is a required option.

No Access Holes

DEFAULT SETTINGS

RIMS

Matte, UD, hook, blank (no decal), 24h, with drain holes

Paintless, UD, blank (no decal), 28h, with access holes

HUBS

DT Swiss 350 Straightpull Centerlock Shimano Road 11s 36t

12*100mm (F) & 12*142mm (R)

DT Swiss 350 Straightpull Centerlock Sram XD 18t

15/110mm (F) & 12/148mm (R) boost

SPOKES & NIPPLES

Sapim CX Sprint-rear drive side / CX Ray-other sides

Sapim aluminum black external

Sapim CX Ray & Sapim aluminum black external

ACCESSORIES

2 valves & 1 spare 18T ratchet

2 valves & 2 adapters (centerlock to 6-bolt)

Note: the wheelset price includes the warehouse transfer cost ($80).

Piece Weight: g+/-

Subtotal: USD + (discount price)

Lead time: typically ships in 3 business days

ADD TO CART You missed some options.

We do not stock this item at the Australian shop. See what's available.

You can order this product from our Global / NA shops.

Please fill out this form if you are looking for a custom wheelset.

We'll get back to you soon to study the customization requests via email.

Our apologies, we do not offer this item at the Global warehouse.

Please order from other warehouses. Feel free to contact us (sales@lightbicycle.com) if you want to customize. We’ll get back to you in 24hrs.

Our apologies, we do not stock this item at the US Shop. Check this link to see what items we stock, or send us an email to discuss.

Our Global Shop can make any rim model and ship worldwide. Please fill out this form with your special requests if you want custom rims/wheelsets. We will get back to you via email to discuss in 24hrs.

Our apologies, we do not stock this item at the CA Shop. Check this link to see what items we stock, or send us an email to discuss.

The wheelsets are still in transit to this shop. We’ll update this page when they’re available. Learn more about our European shop.

You can order this product from our Global or North American shops.

Please fill out this form with your special requests if you want to customize it. We will get back to you in 24hrs via email.

DEFAULT SETTINGS

Piece Weight: g+/-

Subtotal: USD +

Lead time:

ADD TO CART

Shopping Style

Options Features	Quick Buy	Full Custom
Options Features	Inventory	Parts in stock (Assembled upon order)	Manufactured upon order
Customization	Least customizable	100% Customizable
Lead Time	≤ 3 days	4 weeks typically
Availability	Limited models	All models
Shipping	Worldwide	Worldwide

Quick Buy (In Stock)

Full Custom (Made to Order)

Rims

Hook, matte, UD, with drain holes

Hook, matte, UD, with access holes, with drain holes

Standard, hook, paintless, UD, 5-year warranty, with access holes, with drain holes

Front Flyweight / Rear Standard, paintless, UD, 5-year warranty, no drain holes

Paintless, UD, 5-year warranty, no drain holes

Grooved graphene surface, hook, matte, UD, with access holes, with drain holes

Grooved graphene surface, hook, matte, UD, no access holes, with drain holes

Matte UD, 32H, Centered (Staggered)

Hubs

Hope Pro 4 Fatsno J-bend 6-bolt

15/150mm (F) & 12/197mm (R) Sram XD

Straightpull centerlock black 24H

12/100mm & 12/142mm

Shimano Road 11S

DT Swiss straightpull / Bitex j-bend, centerlock, 28H

J-bend, DT Swiss 6-bolt / Bitex centerlock, 32H

15/110mm boost & 12/148mm boost Sram XD

DT Swiss straightpull / Bitex j-bend, black, 20H front / 24H rear

100mm QR & 130mm QR Shimano Road 11S

Spokes

Sapim CX Ray black

Sapim D-Light

Accessories

No decals/valves/tape

No decals/valves/tape/pads

No decals/valves

Piece Weight: g+/-

Subtotal: USD +

Lead time:

ADD TO CART

Hub Brand This is a required option.

Model	Weight	POE	Cost	Reliability	Quality	Unique Feature	Color Options	Warehouse Location	Website
DT 350	374g	18/36/54	Low	Better	Good	Quiet and reliable (18t option)	One	China	DT SWISS
DT 240S	317g	18/36/54	Medium	Best	Best	Quiet and reliable (18t option)	One	China/N.A.	DT SWISS
DT 240 EXP	299g	EXP 36	Medium	Best	Best	Quiet and reliable (EXP 36 )	One	China/N.A.	DT SWISS
DT 180	290g	EXP 36	High	Best	Best	Super Light, EXP 36	One	China/N.A.	DT SWISS
Chris King	326g	45	High	Best	Best	Rebuildable bearings	Nine	China	CHRIS KING
Industry Nine	327g	60	Medium	Better	Best	Loud, engagement	Eleven	China/N.A.	INDUSTRY NINE
Onyx	434g	Infinite	High	Better	Best	Silent, sprag clutch	Eighteen+ (Custom Available)	North America	ONYX
Carbon-Ti	270g	56	High	Better	Best	Extreme Light	Nine	China	Caron-Ti
LB Pace-Hub	275/285g	36/48	Low	Better	Good	Light, reliable, economic	One	China	Light Bicycle
Light Bicycle Speed-Hub Gen2	295g	36	Low	Better	Good	Proprietary for Carbon Spokes Steel Bearing/Ceramic	Two	China	Light Bicycle
Light Bicycle Pace-Hub	275/285g	36/48	Low	Better	Good	Economic, reliable, light	One	China	Light Bicycle

Besides hubs listed to choose online directly, you could also have more others built to the wheels on your custom order by contacting us.
See more about Light Bicycle's FULL HUB OPTIONS

* POE = Points of Engagement

* DT hubs come standard with an 18t star ratchet but are upgradeable to 36 or 54t.

* Average weight will vary slightly depending on axle and freehub combination.

Light Bicycle Pace XC

DT SWISS 180

DT SWISS 240 EXP

DT SWISS 350

Industry Nine Hydra

Industry Nine 1/1

Hope Pro 5

Erase MTB IS-6 holes Hubs

Erase MTB Centerlock Hubs

Industry Nine Hydra 2

Front Axle This is a required option.

If the size you need is not listed, please contact us and we'll reach out to you to confirm your order.

By default, skewers are only offered with QR hubs.

15 / 100mm

15 / 110mm

15 / 110mm BOOST

15 / 110mm Torque

Rear Axle This is a required option.

If the size you need is not listed, please contact us and we'll reach out to you to confirm your order.

By default, skewers are only offered with QR hubs.

12 / 142mm

12 / 148mm

12 / 148mm BOOST

12 / 150mm

12 / 157mm Super BOOST

Freehub Body This is a required option.

1. Shimano Road 11S works with 11/12-speed cassette directly or 8/9/10-speed mountain cassette with a spacer(s) .
2. Shimano MTB 10/11S works with 8/9-speed directly or 10-speed with a spacer or 11-speed road cassette if one of the inner cogs removed.
3. Campagnolo (Campy) 11S works with 9/10/11/12-speed Campy cassette with no spacers required.
4. Sram XDR could run XDR (road) cassette inherently and is compatible to run mountain bike XD cassette with a 1.85mm spacer.
5. Shimano Micro Spline (MS) works with 12-speed MS cassette only.

Shimano MTB 10/11S

Sram XD

Shimano MTB 10/11S Alloy

Sram XD Alloy

Shimano Micro Spline

Shimano Micro Spline Alloy

Shimano Microspline (MTB)

Shimano HG10

Spoke Head This is a required option.

J-bend version: use J-bend hubs and spokes
Straight pull version: use straight pull hubs and spokes

straight pull

J-bend

Brake System This is a required option.

6-Bolt is the more common traditional option.
Centerlock uses a unique interface and it is also convertable to 6-bolt. If you need the conversion kit, please contact us. Our hubs are provided without rotor lockrings by default.

6-bolt

Center lock

Center lock / 6-bolt

Hub Color This is a required option.

Black

Matte Black

Front Holes Count This is a required option.

Please note that our valves are drilled for presta and spoke holes are made for external nipples by default.

Full Custom: This option (if provided here to choose) offers custom drilling for any other hole counts or special drilling (e.g G3/ 2:1 etc), most of which are at no extra charge. If you select this option and LEAVE YOUR TAILORED REQUIREMENT IN THE NOTES AT CHECKOUT, we will reach out to you once the order is placed.

28H

Rear Holes Count This is a required option.

Please note that our valves are drilled for presta and spoke holes are made for external nipples by default.

28H

Ratchet This is a required option.

DT Swiss hubs use star ratchets and are available in 4 different models with varying points of engagement.

18T - Deepest teeth, slowest engagement, least amount of maintenance, suitable for powerful riders.

36T - Happy medium, doubles the engagement points.

54T - Super fast engagement, but shallow teeth require more careful re-greasing and the thru-axle should be checked every ride.

24T - Made out of hardened steel as e-bike specific.

EXP 36 - With only a single spring, making the hubs faster and lighter. More precise contact makes a longer lifespan.

EXP 54 - Upgraded from EXP 36 to gain incredibly faster engagement.

108T

36T

48T

54T

60T

690POE

870POE

90POE

EXP 36

EXP 54

Spoke This is a required option.

Brand	Model	Type	Thread Diameter (mm)	Weight(g)	Gauge	Riding Style	Available(Warehouse Location)
Sapim	Race	Double Butted	2.0 - 1.8 - 2.0	5.7g (260mm)	14G	Heavy Duty	North America, China
Sapim	D-Light	Double Butted	2.0 - 1.65 - 2.0	4.8g (260mm)	14G	Versatile	North America, China
Sapim	CX-Ray	Aero	2.0 - 0.9/2.2 - 2.0	4.4g (260mm)	N/A	Light Aero	North America, China
Sapim	CX-Sprint	Aero	2.0 - 1.25/2.25 - 2.0	5.2g (260mm)	N/A	Light Aero	China
DT SWISS	Competition Race	Double Butted	2.0 - 1.6 - 2.0	4.8g (260mm)	14G	Versatile	China
Pillar	PSR X-TRA 1420	Aero	2.0 - 0.95/2.2 - 2.0	4.4g (260mm)	N/A	Inexpensive Aero	China
Pillar	Wing 20	Aero	2.2 - 1.2/2.0 - 2.0	4.3g (260mm)	N/A	Light Aero	China
Light Bicycle	Oil slick J-bend	Single butted	2.0 - 2.0 - 1.95	6.7g (260mm)	14G	Cool color	China
Light Bicycle	Thrust-4 Carbon	Aero	2.2-1.1/4.0-2.2	2.8g (SP, 260mm)	N/A	Light Aero/Stiff	China
Berd	PolyLight	Rope-like	2.0-1.8	2.5g (260mm)	N/A	Extreme Light	North America

Sapim D-Light – The best all-around and most popular spoke for carbon wheels. Lightweight but incredibly strong.
Sapim Race – Our strongest and stiffest spoke. These spokes are suitable for heavy or extremely aggressive riders who need a stiffer wheel.
Sapim CX-Ray – The lightest spoke in our lineup is still quite strong due to the elasticity and amazing fatigue life.
DT Competition Race - All Mountain and XC spoke used by the Chinese location as a substitue for the D-Light (depending on availability)
Pillar PSR X-TRA 1420 - An inexpensive bladed spoke, great for road and cyclocross riding.
Pillar Wing 20 - Pillar patented highest level of aerodynamic bladed spoke reducing potential weak spots and twisting during tensioning. Currently, they are offered in oil slick color only with increased wear and corrosion resistance.
Sapim CX Sprint-Rear drive side/ CX Ray-Other sides - This customized combo increases the rear drive side power transmition efficiency significantly while grabs superior light-weight and aero performance.
Oil slick J-bend - They are made by a qualified manufacturer in Taiwan with custom design by Light Bicycle. They are J-bend only so do not order these spokes for SP hubs you configured in the previous step.
LB Thrust-4 Carbon - The Thrust-4 Carbon spokes are designed to boost high tensile strength. The 4mm all-road profile ensures great crosswind stability.
Berd PolyLight >> - It is constructed from an advanced polymer called ultra high molecular weight polyethylene (UHMWPE) and are widely considered to be the lightest bicycle spoke option in the world.

Sapim CX Ray

Sapim D-light

Nipple This is a required option.

Nipple Brand	Model	Material	Color	Length	Available (Warehouse Location)
Sapim	Double Square Secure Lock	Alloy	Black, Red, Green, Blue, Gold, Lime, Purple, Orange	16mm	Norh America
Sapim	Polyax/ Polyax Secure Lock	Alloy	Black, Red, Green, Blue, Gold, Lime, Purple, Orange	14mm	China
Sapim	Polyax Secure Lock	Brass	Black	14mm	China/N.A.
DT Swiss	DT SQUORX (PRO HEAD PRO LOCK)	Alloy	Black, Red	15mm	China
DT Swiss	Standard PRO LOCK	Brass	Black	14mm	China
Light Bicycle	N/A	Brass	Oil slick	14mm	China
Light Bicycle	Aluminium Black (for carbon spokes)	Alloy	Black	8.9mm	China

Please select Aluminium Black (for carbon spokes) nipples when you have chosen LB Flyweight Carbon spokes.

Brass Black

Brass Oil slick

Aluminium Red

Aluminium Black

Center Channel Hole This is a required option.

With Access Holes

Finish This is a required option.

Paintless: The "Finish" relates to how the rim is coated or painted such as matte or glossy for the most common applications. Our Recon Pro and Falcon Pro rims feature BlackTek and come out of molds as a completed product, with a scratch resistant and near flawless finish, eliminating the need for coating or painting. We name this kind of superior finish the paintless.

Crystal Painting: A fantastic painting effect designed by Light Bicycle.

Full Custom: This option offers custom finish such as Satin/Raw etc at no extra charge but subject to rim models with 3~5 days LONGER on manufacture. And custom color painting is also available with added 15g/rim and extra $20USD/rim as a start. If you select this option and LEAVE YOUR REQUIREMENT IN QUOTES IN THE NOTES AT CHECKOUT, we will reach out to you once the order is placed to finalize the details.

Paintless

Crystal Painting Glossy USD +20

Full Custom

Weave This is a required option.

The layup schedule is predetermined for each model, but you can choose the outer layer for cosmetic appearence.

The rim strength & weight is virtually identical.

Matte UD is the most popular and has a subtle look.

The futuristic Hexa-Comb and Braided UD are smooth and looks great on deep rims.
More info about Weave >>

Full Custom: This option (if provided here to choose) offers custom weaves such as 3k twill vertical/ horizontal/ Braided UD etc with extra charge of $15USD/rim as a start but subject to rim models with 3~5 days LONGER on manufacture. If you select this option and LEAVE YOUR TAILORED REQUIREMENT IN THE NOTES AT CHECKOUT, we will reach out to you once the order is placed.

Drain Hole This is a required option.

The two small drain holes located 90° to the valve hole effectively help evacuate both the water trapped inside the rim and the air leaking into the rim chamber caused by nonperfect tubeless tape sealing handwork that may risk rim explosure in an aggressive tire inflating.

It is the small reinforced layer prelaminated on the area where the drain hole is drilled later that makes the rim strength fairly ensured without any compromise of weight added.

Riders who ride in wet areas are suggested to order rims with drain holes.
More info about holes >>

No Drain Holes

With Drain Holes

Nipple Hole This is a required option.

External Hole

Rim Warranty This is a required option.

For Recon Pro Series ( MTB rim), Falcon Pro (road rim) and Drift Pro (fatbike rim), 5-year warranty is set as standard, and optional Lifetime Premium Warranty are kindly offered to purchase with minimum charge respectively.

5 Years

Lifetime USD +100/rim

Decal This is a required option.

1. Grey Laser Engraving (Recon Pro) - Our laser engraving technology is eco-friendly and adds a snappy, polished aesthetic to your new rims.
Please note: Contrary to rims with any coated/painted finishes (matte, glossy and satin) as well as Crystal Painting, laser engraving could work with paintless rims only.

2. Full Custom - Add some additional personalization and go full custom with your rim graphics! Laser engraving is available in one colour (light grey) and starts at $5 USD per rim. If you select this option, LEAVE YOUR REQUEST IN QUOTES IN THE NOTES AT CHECKOUT. For example: "I need my personalized logo printed" or "Just text 'ABC racing' ". We will reach out to you once the order is placed to finalize the details of custom graphics.

Grey Laser Engraving (Recon Pro)

Blank (No decal)

Full Custom (Laser only) USD +5

Wheel Bag This is a required option.

Our all-new single wheel bag provides reliable storage for your wheel. Plus, an internal pocket is designed to store skewers and other tools. The wheel bag safely and comfortably accommodates most road and mountain bike wheels, including 700C, 26", 27.5", and 29" wheels. The wheel bag is with Light Bicycle logo by default. If you hope to get one without logo, please leave a note at checkout.

For a wheelset product, when selecting "Add Wheel Bag", you'll get two wheel bags; while for a single front/rear wheel product, you'll get one wheel bag.

None

Add Wheel Bag USD +25.5 each

Valve Stem This is a required option.

None

Apply Purple Valve Stem USD +9.9 each

Apply Blue Valve Stem USD +9.9 each

Apply Gold Valve Stem USD +9.9 each

Apply Orange Valve Stem USD +9.9 each

Apply Red Valve Stem USD +9.9 each

Apply Silver Valve Stem USD +9.9 each

Apply Green Valve Stem USD +9.9 each

Apply Champagne Gold Valve Stem USD +9.9 each

Apply Black Valve Stem USD +9.9 each

Tubeless Tape This is a required option.

Add Tubeless Tape: A roll of 10-yard-long tape is provided separately as parts to do the favor for those who treasure the dirt in the hand and are passionate in DIY stuff.
Information of tubeless rim tape

Apply Tubeless Tape: In Light Bicycle, a proprietary taping aid works with our wheel builders to guarantee that a solid taping craft at industrial-level is well implemented in order for you to ride carefree tubeless at any conditions.

You do NOT have to use any tubeless tape to run tubeless if you have chosen "No Access Holes" on the rim center channel.

None

Add Tubeless Tape USD +6 each

Apply Tubeless Tape USD +6 each

Send Photos for Shipping Confirmation This is a required option.

Send Photos for Shipping Confirmation could be offered at NO extra charge so that you could have your tailored products viewed/inspected before shipping and the photos shared with your friends in advance.

It takes about 1~3 business days added to the lead time subject to the orders queuing status.

If you have any special requirement on the photos, such as weight measurement, please leave a note at checkout.

Yes (1-3 days longer)

No ( I do not need photos)

Recon Pro orders start shipping in October.

- + Pair

Hub Brand This is a required option.

Model	Weight	POE	Cost	Reliability	Quality	Unique Feature	Color Options	Warehouse Location	Website
DT 350	374g	18/36/54	Low	Better	Good	Quiet and reliable (18t option)	One	China	DT SWISS
DT 240S	317g	18/36/54	Medium	Best	Best	Quiet and reliable (18t option)	One	China/N.A.	DT SWISS
DT 240 EXP	299g	EXP 36	Medium	Best	Best	Quiet and reliable (EXP 36 )	One	China/N.A.	DT SWISS
DT 180	290g	EXP 36	High	Best	Best	Super Light, EXP 36	One	China/N.A.	DT SWISS
Chris King	326g	45	High	Best	Best	Rebuildable bearings	Nine	China	CHRIS KING
Industry Nine	327g	60	Medium	Better	Best	Loud, engagement	Eleven	China/N.A.	INDUSTRY NINE
Onyx	434g	Infinite	High	Better	Best	Silent, sprag clutch	Eighteen+ (Custom Available)	North America	ONYX
Carbon-Ti	270g	56	High	Better	Best	Extreme Light	Nine	China	Caron-Ti
LB Pace-Hub	275/285g	36/48	Low	Better	Good	Light, reliable, economic	One	China	Light Bicycle
Light Bicycle Speed-Hub Gen2	295g	36	Low	Better	Good	Proprietary for Carbon Spokes Steel Bearing/Ceramic	Two	China	Light Bicycle
Light Bicycle Pace-Hub	275/285g	36/48	Low	Better	Good	Economic, reliable, light	One	China	Light Bicycle

Besides hubs listed to choose online directly, you could also have more others built to the wheels on your custom order by contacting us.
See more about Light Bicycle's FULL HUB OPTIONS

* POE = Points of Engagement

* DT hubs come standard with an 18t star ratchet but are upgradeable to 36 or 54t.

* Average weight will vary slightly depending on axle and freehub combination.

DT SWISS 180

DT SWISS 240 EXP

DT SWISS 350

Industry Nine Hydra

Industry Nine 1/1

Onyx Vesper

Hope Pro 5

Front Axle This is a required option.

If the size you need is not listed, please contact us and we'll reach out to you to confirm your order.

By default, skewers are only offered with QR hubs.

15 / 100mm

15 / 100mm Torque

15 / 110mm BOOST

15 / 110mm RS-1

15 / 110mm Torque

20 / 110mm BOOST DH

20 / 110mm Old DH

Lefty 2.0 Supermax

QR / 100mm

Rear Axle This is a required option.

If the size you need is not listed, please contact us and we'll reach out to you to confirm your order.

By default, skewers are only offered with QR hubs.

12 / 142mm

12 / 148mm BOOST

12 / 150mm

12 / 157mm Super BOOST

QR / 135mm

Single Speed

Freehub Body This is a required option.

Shimano MTB 10/11S

Sram XD

Shimano MTB 10/11S Alloy

Sram XD Alloy

Shimano Micro Spline Alloy

Shimano Micro Spline

Spoke Head This is a required option.

straight pull

J-bend

Brake System This is a required option.

6-bolt

Center lock

Hub Color This is a required option.

Anodized-Black

Anodized-Black Matte

Anodized-Blue

Anodized-Green

Anodized-Orange

Anodized-Purple

Anodized-Red

Anodized-Silver

Black

Blue

Gold

Green

Lime

Orange

Pink

Purple

Red

Silver

Turquoise

Front Holes Count This is a required option.

Please note that our valves are drilled for presta and spoke holes are made for external nipples by default.

28H

Rear Holes Count This is a required option.

Please note that our valves are drilled for presta and spoke holes are made for external nipples by default.

28H

Ratchet This is a required option.

DT Swiss hubs use star ratchets and are available in 4 different models with varying points of engagement.

18T - Deepest teeth, slowest engagement, least amount of maintenance, suitable for powerful riders.

36T - Happy medium, doubles the engagement points.

54T - Super fast engagement, but shallow teeth require more careful re-greasing and the thru-axle should be checked every ride.

24T - Made out of hardened steel as e-bike specific.

EXP 36 - With only a single spring, making the hubs faster and lighter. More precise contact makes a longer lifespan.

EXP 54 - Upgraded from EXP 36 to gain incredibly faster engagement.

108T

36T

54T

690POE

90POE

EXP 36

EXP 54

Sprag Clutch

Spoke This is a required option.

Brand	Model	Type	Thread Diameter (mm)	Weight(g)	Gauge	Riding Style	Available(Warehouse Location)
Sapim	Race	Double Butted	2.0 - 1.8 - 2.0	5.7g (260mm)	14G	Heavy Duty	North America, China
Sapim	D-Light	Double Butted	2.0 - 1.65 - 2.0	4.8g (260mm)	14G	Versatile	North America, China
Sapim	CX-Ray	Aero	2.0 - 0.9/2.2 - 2.0	4.4g (260mm)	N/A	Light Aero	North America, China
Sapim	CX-Sprint	Aero	2.0 - 1.25/2.25 - 2.0	5.2g (260mm)	N/A	Light Aero	China
DT SWISS	Competition Race	Double Butted	2.0 - 1.6 - 2.0	4.8g (260mm)	14G	Versatile	China
Pillar	PSR X-TRA 1420	Aero	2.0 - 0.95/2.2 - 2.0	4.4g (260mm)	N/A	Inexpensive Aero	China
Pillar	Wing 20	Aero	2.2 - 1.2/2.0 - 2.0	4.3g (260mm)	N/A	Light Aero	China
Light Bicycle	Oil slick J-bend	Single butted	2.0 - 2.0 - 1.95	6.7g (260mm)	14G	Cool color	China
Light Bicycle	Thrust-4 Carbon	Aero	2.2-1.1/4-2.2	2.8g (SP, 260mm)	N/A	Light Aero/Stiff	China
Berd	PolyLight	Rope-like	2.0-1.8	2.5g (260mm)	N/A	Extreme Light	North America

Alpina Extralite

Sapim CX Ray in Black

Nipple This is a required option.

Nipple Brand	Model	Material	Color	Length	Available (Warehouse Location)
Sapim	Double Square Secure Lock	Alloy	Black, Red, Green, Blue, Gold, Lime, Purple, Orange	16mm	North America
Sapim	Polyax/ Polyax Secure Lock	Alloy	Black, Red, Green, Blue, Gold, Lime, Purple, Orange,Silver	14mm	China
Sapim	Polyax Secure Lock	Brass	Black	14mm	China/N.A.
DT Swiss	DT SQUORX (PRO HEAD PRO LOCK)	Alloy	Black, Red	15mm	China
DT Swiss	Standard PRO LOCK	Brass	Black	14mm	China

Brass Black

Aluminium Black

Aluminium Silver

Aluminium Purple

Aluminium Orange

Aluminium Lime

Aluminium Green

Aluminium Gold

Aluminium Blue

Aluminium Red

Finish This is a required option.

The "Finish" relates to how the rim is coated or painted such as matte or glossy for the most common applications. Our Recon Pro and Falcon Pro rims feature BlackTek and come out of molds as a completed product, with a scratch resistant and near flawless finish, eliminating the need for coating or painting. We name this kind of superior finish the paintless.

Paintless

Center Channel Hole This is a required option.

With Access Holes

Weave This is a required option.

Drain Hole This is a required option.

No Drain Holes

Nipple Hole This is a required option.

External Hole

Rim Warranty This is a required option.

5 Years

Lifetime USD +100/rim

Decal This is a required option.

Grey Laser Engraving (Recon Pro)

Valve Stem This is a required option.

We use a lightweight black alloy anodized valves with an oversized concave collar for easy gripping. A rubber o-ring goes in between the rim and the collar to help seal the rim and match the contour of the rim profile. The valve core is removable so you can add sealant without removing your tire.
Link to tubeless valve instructions

None

Add Valve Stem USD +7 each

Tubeless Tape This is a required option.

None

Add Tubeless Tape USD +8 each

Apply Tubeless Tape USD +8 each

Recon Pro orders start shipping in October.

- + Pair

Piece Weight: 1070.16g+/-3%

Subtotal: USD 1188.6+

Piece Weight: 0.00g+/-3%

Subtotal: USD 0+

PREVIOUS NEXT

WHEELSET SPECS

RIMS

Our Pro series comes with a 5-year warranty (lifetime optional), while the non-pro with a 3-year warranty and crash replacement.

Model Helios-XC930
Series Helios
Material Toray T700 & T800 Premium Carbon Fiber
Size 29"/29er (ETRTO 622mm)
Intended Use Cross Country, XCO, XCM
Bead Type Hookless
Tubeless Capable Yes
Depth 22mm
Inner/Outer Width 30mm/35.6mm
ERD 589.4mm (not including nipple head dimension)
Rim Weight 245+/-15g
Profile Asymmetric (2.8mm)
Max Cyclist Weight (on flat ground) 95kg/209lbs
Spoke Hole Angle ±7°
Spoke Tension 120~130kgf front disc side and rear drive side
Max Tire Pressure 35psi/ 2.41bar
Recommended Tire Width 2.35''~2.4''

HUBS

We keep in stock the most popular axle sizes and colors of some well-liked hub models. If you want a special order, feel free to contact us (sales@lightbicycle.com).

Model Light Bicycle Pace XC, DT SWISS 180, DT SWISS 240 EXP, DT SWISS 350, Industry Nine Hydra, Industry Nine 1/1, Hope Pro 5, Erase MTB IS-6 holes Hubs, Erase MTB Centerlock Hubs, Industry Nine Hydra 2, Onyx Vesper
Front Axle Size 15 / 100mm, 15 / 110mm, 15 / 110mm BOOST, 15 / 110mm Torque, 15 / 100mm Torque, 15 / 110mm RS-1, 20 / 110mm BOOST DH, 20 / 110mm Old DH, Lefty 2.0 Supermax, QR / 100mm
Rear Axle Size 12 / 142mm, 12 / 148mm, 12 / 148mm BOOST, 12 / 150mm, 12 / 157mm Super BOOST, QR / 135mm, Single Speed
Driver Body Shimano MTB 10/11S, Sram XD, Shimano MTB 10/11S Alloy, Sram XD Alloy, Shimano Micro Spline, Shimano Micro Spline Alloy, Shimano Microspline (MTB), Shimano HG10
Hole 28H

OTHER PARTS

Leave a note at checkout or contact us if you want spare spokes or nipples.

Spokes Sapim CX Ray, Sapim D-light, Alpina Extralite, Sapim CX Ray in Black
Nipples Brass Black, Brass Oil slick, Aluminium Red, Aluminium Black, Aluminium Silver, Aluminium Purple, Aluminium Orange, Aluminium Lime, Aluminium Green, Aluminium Gold, Aluminium Blue

At Light Bicycle, our story begins with carbon mountain bike rims—and it never ends. Our first carbon MTB rim was born in 2011. Over the years, our MTB wheels have won the unanimous favor of riders. With the innovation and changes in the mountain bike wheels market, we are excited to introduce the all-new Helios Mountain Rim Series.

As one of the XC models of Helios Series, Helios XC930 is our most versatile mountain bike wheel. Equally at home on the XC course as it is on a backcountry trail excursion, the 30mm internal width fits a wide variety of tires, and the asymmetric profile results in better power transfer and a stronger wheel that stays true longer. Weight is always a paramount concern when it comes to XC wheels. Every single gram counts when hunting podiums or personal bests. Helios XC930 is the lightest in its class, at just 245g, it is light enough to help place you on the top step of the podium. You can easily build a sub-1kg wheelset with Helios XC930. The custom build paired with Extralite hubs and Berd spokes, weighs just 890g per pair.

Various hub combinations are available, such as DT Swiss, Extralite. If you have a specific color or request of hub, contact us to check on their availability. Freehubs available are: Shimano MTB 10/11S, Shimano Micro Spline, and the SRAM XD etc.

The tire pressure for this rim is recommended at 35 psi. The rider's weight limit is 209lbs. The positive stiffness test on the rim has reached 100J.

Rims

Our Pro series comes with a 5-year warranty (lifetime optional), while the non-pro with a 3-year warranty and crash replacement.

Model: Helios-XC930
Series: Helios
Material: Toray T700 & T800 Premium Carbon Fiber
Size: 29"/29er (ETRTO 622mm)
Intended Use: Cross Country, XCO, XCM
Bead Type: Hookless
Tubeless Capable: Yes
Depth: 22mm
Inner/Outer Width: 30mm/35.6mm
ERD: 589.4mm (not including nipple head dimension)
Rim Weight: 245+/-15g
Profile: Asymmetric (2.8mm)
Max Cyclist Weight (on flat ground): 95kg/209lbs
Spoke Hole Angle: ±7°
Spoke Tension: 120~130kgf front disc side and rear drive side
Max Tire Pressure: 35psi/ 2.41bar
Recommended Tire Width: 2.35''~2.4''

Hubs

We keep in stock the most popular axle sizes and colors of some well-liked hub models. If you want a special order, feel free to contact us (sales@lightbicycle.com).

Model: Light Bicycle Pace XC, DT SWISS 180, DT SWISS 240 EXP, DT SWISS 350, Industry Nine Hydra, Industry Nine 1/1, Hope Pro 5, Erase MTB IS-6 holes Hubs, Erase MTB Centerlock Hubs, Industry Nine Hydra 2, Onyx Vesper
Front Axle Size: 15 / 100mm, 15 / 110mm, 15 / 110mm BOOST, 15 / 110mm Torque, 15 / 100mm Torque, 15 / 110mm RS-1, 20 / 110mm BOOST DH, 20 / 110mm Old DH, Lefty 2.0 Supermax, QR / 100mm
Rear Axle Size: 12 / 142mm, 12 / 148mm, 12 / 148mm BOOST, 12 / 150mm, 12 / 157mm Super BOOST, QR / 135mm, Single Speed
Driver Body: Shimano MTB 10/11S, Sram XD, Shimano MTB 10/11S Alloy, Sram XD Alloy, Shimano Micro Spline, Shimano Micro Spline Alloy, Shimano Microspline (MTB), Shimano HG10
Hole: 28H

Other Parts

Leave a note at checkout or contact us if you want spare spokes or nipples.

Spokes: Sapim CX Ray, Sapim D-light, Alpina Extralite, Sapim CX Ray in Black
Nipples: Brass Black, Brass Oil slick, Aluminium Red, Aluminium Black, Aluminium Silver, Aluminium Purple, Aluminium Orange, Aluminium Lime, Aluminium Green, Aluminium Gold, Aluminium Blue

Please carefully inspect your package when unboxing it and contact us immediately if it is damaged or if anything is missing.

Together we can make this planet better. Join our sustainability program to reduce paper waste using digital docs.

Download user guides >>

Overview

At Light Bicycle, our story begins with carbon mountain bike rims—and it never ends. Our first carbon MTB rim was born in 2011. Over the years, our MTB wheels have won the unanimous favor of riders. With the innovation and changes in the mountain bike wheels market, we are excited to introduce the all-new Helios Mountain Rim Series.

As one of the XC models of Helios Series, Helios XC930 is our most versatile mountain bike wheel. Equally at home on the XC course as it is on a backcountry trail excursion, the 30mm internal width fits a wide variety of tires, and the asymmetric profile results in better power transfer and a stronger wheel that stays true longer. Weight is always a paramount concern when it comes to XC wheels. Every single gram counts when hunting podiums or personal bests. Helios XC930 is the lightest in its class, at just 245g, it is light enough to help place you on the top step of the podium. You can easily build a sub-1kg wheelset with Helios XC930. The custom build paired with Extralite hubs and Berd spokes, weighs just 890g per pair.

Various hub combinations are available, such as DT Swiss, Extralite. If you have a specific color or request of hub, contact us to check on their availability. Freehubs available are: Shimano MTB 10/11S, Shimano Micro Spline, and the SRAM XD etc.

The tire pressure for this rim is recommended at 35 psi. The rider's weight limit is 209lbs. The positive stiffness test on the rim has reached 100J.
Specs
Rims

Our Pro series comes with a 5-year warranty (lifetime optional), while the non-pro with a 3-year warranty and crash replacement.

Model: Helios-XC930

Series: Helios

Material: Toray T700 & T800 Premium Carbon Fiber

Size: 29"/29er (ETRTO 622mm)

Intended Use: Cross Country, XCO, XCM

Bead Type: Hookless

Tubeless Capable: Yes

Depth: 22mm

Inner/Outer Width: 30mm/35.6mm

ERD: 589.4mm (not including nipple head dimension)

Rim Weight: 245+/-15g

Profile: Asymmetric (2.8mm)

Max Cyclist Weight (on flat ground): 95kg/209lbs

Spoke Hole Angle: ±7°

Spoke Tension: 120~130kgf front disc side and rear drive side

Max Tire Pressure: 35psi/ 2.41bar

Recommended Tire Width: 2.35''~2.4''

Hubs

We keep in stock the most popular axle sizes and colors of some well-liked hub models. If you want a special order, feel free to contact us (sales@lightbicycle.com).

Model: Light Bicycle Pace XC, DT SWISS 180, DT SWISS 240 EXP, DT SWISS 350, Industry Nine Hydra, Industry Nine 1/1, Hope Pro 5, Erase MTB IS-6 holes Hubs, Erase MTB Centerlock Hubs, Industry Nine Hydra 2, Onyx Vesper

Front Axle Size: 15 / 100mm, 15 / 110mm, 15 / 110mm BOOST, 15 / 110mm Torque, 15 / 100mm Torque, 15 / 110mm RS-1, 20 / 110mm BOOST DH, 20 / 110mm Old DH, Lefty 2.0 Supermax, QR / 100mm

Rear Axle Size: 12 / 142mm, 12 / 148mm, 12 / 148mm BOOST, 12 / 150mm, 12 / 157mm Super BOOST, QR / 135mm, Single Speed

Driver Body: Shimano MTB 10/11S, Sram XD, Shimano MTB 10/11S Alloy, Sram XD Alloy, Shimano Micro Spline, Shimano Micro Spline Alloy, Shimano Microspline (MTB), Shimano HG10

Hole: 28H

Other Parts

Leave a note at checkout or contact us if you want spare spokes or nipples.

Spokes: Sapim CX Ray, Sapim D-light, Alpina Extralite, Sapim CX Ray in Black

Nipples: Brass Black, Brass Oil slick, Aluminium Red, Aluminium Black, Aluminium Silver, Aluminium Purple, Aluminium Orange, Aluminium Lime, Aluminium Green, Aluminium Gold, Aluminium Blue
Tech
Warranty

For Non-Pro Series Rims: From the date of purchase, 3-year Standard Warranty.

For Pro Series Rims: From the date of purchase, 5-year Pro Warranty as standard and an upgraded optional lifetime Premium Warranty with minimum charge.

Crash Replacement: It is applicable with the same period as the warranty time range that you purchased for the rims with 10% /25% discount for Non-Pro series /Pro series.

Learn More >>
In The Box

Please carefully inspect your package when unboxing and get in touch with us immediately if the package is damaged or anything is missing.

Together we can make this planet better. Join our sustainability program to reduce paper waste with the use of digital manuals.

Download user guides >>

Gallery

light-bicycle-helios-xc930-carbon-mtb-wheelset-laced-to-extralite-hyper-boost3-hubs

Light Bicycle : RIMS: Helios-XC930 UD Paintless 28H External Hole No Drain Holes With Access Holes HUB-F: Extralite HyperBoost3 F Black 15 / 110mm BOOST straight pull 6-bolt 28H HUB-R: Extralite HyperBoost3 R Black 12 / 148mm BOOST straight pull 6-bolt 28H 36T Shimano MTB 10/11S SPOKE: Sapim CX Ray Black Straight Pull NIPPLE: DT Swiss/ Sapim Aluminium Black Universal External

Canada

View More Reviews >>

Rider Story

We would love to hear your story and earn a $50 reward. Tell us your personal riding story that highlights the joys and challenges of riding.

Share your rider story now >>

COMMENTS

Michael 2025/09/15

Hello, I am looking to build a rear wheel only. How much is a rear only with XC930 rim, Extralite boost hub and Berd spokes? Thank you.

LightBicycle 2025/09/16

Hi Michael, We just sent you the wheel 29er XC930 price to your email. Please check. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Get in touch

Feel free to leave a comment if you have any questions or suggestions on our products or other issues.

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

No.	Test Item	Test Standard	Compliance Rate	Measured Data
1	Drops Stiffness Vertical Test (Upwards)	50kgf static pressure deformation ≤ ( 11 ) MM	100%	10.01/9.81
2	Drops Stiffness Vertical Test (Downwards)	50kgf static pressure deformation ≤ ( 11 ) MM	100%	10.12/9.94
3	Hoods Stiffness Vertical Test (Downwards)	30kgf static pressure deformation ≤ ( 6 ) MM	100%	5.26/5.26
4	Handlebar In-Phase Loading Fatigue Test	Stage1: F=(+/-400) N=(+/-40.8) kgf, Frequency 2HZ, Cycles (150000)	100%	150,000 cycles, product intact
5	Handlebar In-Phase Loading Fatigue Test	Stage2: F=(+/-440) N=(+/-44.9) kgf, Frequency 2HZ, Cycles (100000)	100%	100,000 cycles, product intact
6	Handlebar Out-Phase Loading Fatigue	Stage1: F=(+/-280) N=(+/-28.6) kgf, Frequency 2HZ, Cycles (150000)	100%	150,000 cycles, product intact
7	Handlebar Out-Phase Loading Fatigue	Stage2: F=(+/-308) N=(+/-31.4) kgf, Frequency 2HZ, Cycles (100000)	100%	100,000 cycles, product intact
8	Impact Test	55J	100%	55J
9	Product Weight	( 250 +/-15 ) g	100%	259g

We use cookies for a better experience. Learn more.

Customize

Your Cookie Preferences

We use cookies to improve your experience on this website. You may choose which types of cookies to allow and change your preferences at any time. Disabling cookies may impact your experience on this website. You can learn more by viewing our Cookie Policy.

Essential Cookies

Cookies required to enable basic website functionality.
Performance Cookies

Cookies used to understand how the website is being used.
Preference Cookies

Cookies that are used to enhance the functionality of the website.
Advertising Cookies

Cookies used to deliver advertising that is more relevant to your interests.

Aceept All Cookies

Save Preferences

Reject All Cookies

Save Preferences

Reject All Cookies

Accept All Cookies

Specialized	Tarmac SL8	Colnago	V3
	Tarmac SL7		V4R/C68
	ALLEZ SPRINT		V3R/C64
	Aethos S-Works 2026		V5RS
Trek	MADONE SLR GEN8	Cannondale	SUPERSIX EVO G4
	MADONE SLR GEN7		SUPERSIX EVO G3
	EMONDA SLR		SYSTEMSIX
	MADONE SLR		LAB71
Quick Pro	ER:ONE		Supersix Evo 1 2023
Scott	NEW ADDICT RC	Factor	OSTRO VAM
	ADDICT		02 VAM
	NEW FOIL RC	Rose	Rose Xlite 6
	FOIL		Backroad 2019
Cervelo	R5	Pinarello	Dogma F12
	Caledonia
Please provide bike photo if you have any of the bikes listed below.
BMC	TMR 01
	SLR 01
	Teammachine SLRO1
Bianchi	Specialissima RC
Deda	OCR/BOTECHIA OCR
FOCUS	IZALCOMAX
Merida	REACTO/SCULTURA
Orbea	ORCA OMX/OMR
Ribble	CGR SL
Ridley	HELIUM SLX
	NOAH
TIME	ADH
Wilier	CENTO 10
	Triestina
	ZERO
	FLANTEE SLR/CENTO 10 SL
Can't find your bike model? Please let us know at sales@lightbicycle.com.

Use	Lightweight Road Riding
Width	340/380mm, 360/400mm, 375/415mm, 395/435mm
Stem Length	90mm, 100mm, 110mm, 120mm, 130mm
Material	Toray T700 & T800 Carbon Fiber
Finish	Matte/Glossy/Paintless/Custom Paint
Weave	UD/Marble
Weight	Starting from 250g
Reach	70mm
Drop	123mm
Stack	36.3mm
Steer Size	1-1/8″ (28.6mm), OD2 not Compatible
Flare	9°
Sweep	4°
Stem Angle	-10°
Impact Strength	Surpasses 55J Impact Test
Rider Weight Limit	120 kgs
Cable Routing	Internal & External
Computer Mount	Default Alloy Aluminum or 3D-Printed Titanium
Spacer	Universal 52mm/56mm or 3D-Printed Custom
Bolts	Titanium
Warranty	3-Year Warranty, contact us for our US$129 Handlebar Free Replacement Program.

Build Your Recon Pro WHEELSET WMHelios-XC930

Overview

Specs

Tech

Warranty

In The Box

Rims

Hubs

Other Parts

Overview

Specs

Rims

Hubs

Other Parts

Tech

Warranty

In The Box

Gallery

Rider Story
