Build Your Recon Pro WHEELSET AM730

All wheels are 100% customizable at Light Bicycle. If your preferred specs are not listed, feel free to contact us (sales@lightbicycle.com) with your special requirements described.


Buy rim only

WHEELSET SPECS

RIMS

Our Pro series comes with a 5-year warranty (lifetime optional), while the non-pro with a 3-year warranty and crash replacement.

  • Model AM730
  • Material Toray T700 & T800 Premium Carbon Fiber
  • Size 27.5"/650B (ETRTO 584mm)
  • Series RECON PRO
  • Intended Use All Mountain
  • Bead Type Hookless
  • Tubeless Capable Yes

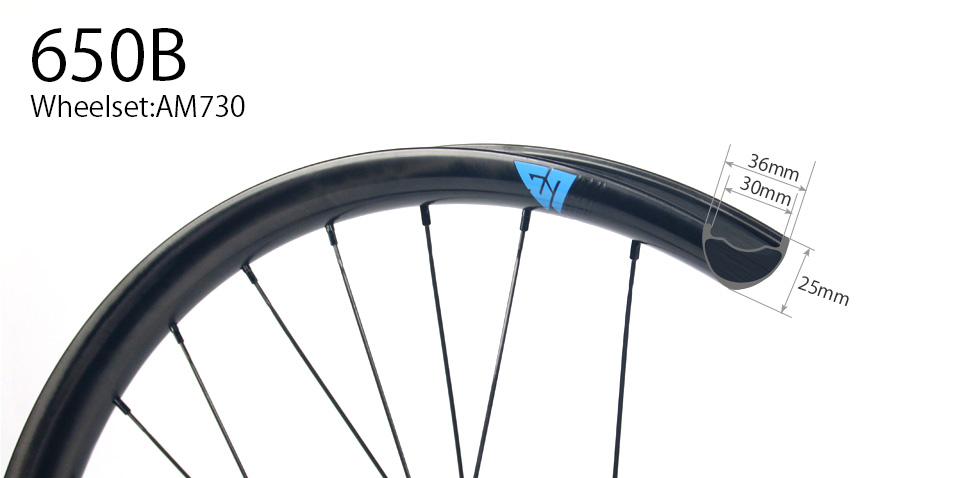

  • Inner/Outer Width 30mm/36mm
  • Depth 25mm
  • ERD 551mm (not including nipple head dimension)
  • Rim Weight 425+/-15g
  • Profile Asymmetric (2mm)
  • Max Cyclist Weight (on flat ground) 135kg/ 298lbs
  • Spoke Hole Angle ±7°
  • Spoke Tension 115~130kgf front disc side and rear drive side
  • Max Tire Pressure 40psi/ 2.75bar
  • Recommended Tire Width 2.2" ~ 2.7"

HUBS

We keep in stock the most popular axle sizes and colors of some well-liked hub models. If you want a special order, feel free to contact us (sales@lightbicycle.com).

  • Model DT SWISS 180, DT SWISS 240 EXP, DT SWISS 350, Industry Nine Hydra, Industry Nine 1/1, Chris King BOOST, Bitex BX212F / BX212R, Hope Pro 5, Onyx Vesper
  • Front Axle Size 15 / 100mm, 15 / 110mm BOOST, 15 / 100mm Torque, 15 / 110mm RS-1, 15 / 110mm Torque, 20 / 110mm BOOST DH, 20 / 110mm Old DH, Lefty 2.0 Supermax, QR / 100mm
  • Rear Axle Size 12 / 142mm, 12 / 148mm BOOST, 12 / 157mm Super BOOST, 12 / 150mm, QR / 135mm, Single Speed
  • Driver Body Shimano MTB 10/11S, Sram XD, Shimano MTB 10/11S Alloy, Sram XD Alloy, Shimano Micro Spline, Shimano Micro Spline Alloy
  • Hole 28H, 32H

OTHER PARTS

Leave a note at checkout or contact us if you want spare spokes or nipples.

  • Spokes DT Swiss Competition Race, Sapim CX Ray, Oil slick J-bend, Sapim D-Light, Sapim Race
  • Nipples Aluminium Black, Aluminium Red, Brass Oil slick, Brass Black, Aluminium Silver, Aluminium Blue, Aluminium Gold, Aluminium Green, Aluminium Lime, Aluminium Orange, Aluminium Purple

TECH

Our new wide format All Mountain wheel is a show stopper with its new scratch resistant BlackTek finish. Run all your favourite high volume tires and enjoy the benefits of our modern asymmetric profile.

The 30mm internal width wheel has become one of the most popular widths in recent years, and for good reason! With the advancement of lightweight wide carbon wheels, you get the traction and high volume benefits of a wide wheel without all of the added weight. The AM730’s will give you a more reliable tubeless fit, increased stiffness, and significantly lower weight over a stock wheelset. Breath new life into your bike!


Learn More >>

WARRANTY

For Non-Pro Series Rims: From the date of purchase, 3-year Standard Warranty.

For Pro Series Rims: From the date of purchase, 5-year Pro Warranty as standard and an upgraded optional lifetime Premium Warranty with minimum charge.

Crash Replacement: It is applicable with the same period as the warranty time range that you purchased for the rims with 10% /25% discount for Non-Pro series /Pro series.

Learn More >>


WHAT IS IN THE BOX


Our new wide format All Mountain wheel is a show stopper with its new scratch resistant BlackTek finish. Run all your favourite high volume tires and enjoy the benefits of our modern asymmetric profile.

The 30mm internal width wheel has become one of the most popular widths in recent years, and for good reason! With the advancement of lightweight wide carbon wheels, you get the traction and high volume benefits of a wide wheel without all of the added weight. The AM730’s will give you a more reliable tubeless fit, increased stiffness, and significantly lower weight over a stock wheelset. Breath new life into your bike!

  • Overview

    Our new wide format All Mountain wheel is a show stopper with its new scratch resistant BlackTek finish. Run all your favourite high volume tires and enjoy the benefits of our modern asymmetric profile.

    The 30mm internal width wheel has become one of the most popular widths in recent years, and for good reason! With the advancement of lightweight wide carbon wheels, you get the traction and high volume benefits of a wide wheel without all of the added weight. The AM730’s will give you a more reliable tubeless fit, increased stiffness, and significantly lower weight over a stock wheelset. Breath new life into your bike!

  • Specs

  • Tech

  • Warranty

  • In The Box

Light Bicycle : Rims: AM730 Paintless UD 32/32H tubeless-ready standard weight Hubs: Hope Pro 4 15/110mm Boost 6-bolt J-bend Blue 32h Onyx Vesper 12/148mm Boost 6-bolt J-bend Blue 32h Shimano MTB 10/11S Alloy Spokes: DT Swiss Competition Race Nipples: DT Swiss Brass Black External Weight: 1906.86 grams
1

View More Reviews >>

COMMENTS

R

Robert 2020/09/21

Hi - Can you please quote the price for a rear wheel only? AM730 650B rim, Onyx Vesper hub, 12x142, 6 bolt, XD driver, anodized matte black. Thanks!


LightBicycle 2020/09/22

Hi Robert, The rear 650B wheel built with am730 Heavy-Duty version and Vesper hubs cost is sent to your email. Please check. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

I

Ian 2020/08/08

Hi I have a 2018 Mach 5.5 pivot sz Medium. And. I would like to get a more durable Carbon wheelset that is enduro/all mountain. What would you recommend. Specs for my bike boosted 110/148. And can you also send me a couple of options and prices. I would like to build one ASAP with i9 hub if possible.


LightBicycle 2020/08/08

Hi Ian, We just sent two 27.5 wheelset quotation to your email address. Please check. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

N

Nate 2019/01/06

Hello, I recently failed the rear carbon rim on my 650b Stumpjumper (carbon Roval Traverse). I am looking at the AM730 wheel set as a replacement. I have a few questions. - Can I purchase just the rear wheel, or are they only available as a pair? - Can you build the wheel using a DT Swiss 350 Classic hub? - If these options are not available, can I purchase just one rim? Thank you! Nate


LightBicycle 2019/01/07

Hi Nate, 1. Yes, you can buy the rear 650B wheel only. 2. Yes, we can build the wheel with DT SWISS 350 Classic (J-bend) hub. Will you consider change the spoke to 32H to make the wheel stronger? Is it below specs correct? --Rim: AM730, 36mm wide, Paintless surface, UD, 32H --Hub: Black DT Swiss 350, 12*148mm, boost, SRAM XD, 6-bolt J-bend, 18T --Spoke: black Sapim CX-Ray, J-bend --Nipples: Black alloy Polyax Shipping cost: USD50 for one wheel ship to the US by EMS. 3. If you are considering yourself an aggressive rider, we can make a heavy duty version rim for you so the wheel can be more durable. Especially when the wheel is on the back. Thanks, Lightbicycle


D

danny 2019/01/08

can I just purchase a front wheel set with DT 350 iso 6 bolt 100mm*15mm axle 32 holes may I know the price for this?


LightBicycle 2019/01/08

Hi Danny, It is okay to order a 650B AM730 front wheel with DT 350 hubs. What spokes do you prefer? Then we can quote for you. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.
