Build Your Recon Pro WHEELSET AM930

All wheels are 100% customizable at Light Bicycle. If your preferred specs are not listed, feel free to contact us (sales@lightbicycle.com) with your special requirements described.


Buy rim only

WHEELSET SPECS

RIMS

Our Pro series comes with a 5-year warranty (lifetime optional), while the non-pro with a 3-year warranty and crash replacement.

  • Model AM930
  • Material Toray T700 & T800 Premium Carbon Fiber
  • Size 29"/29er (ETRTO 622mm)
  • Series RECON PRO
  • Intended Use All Mountain
  • Bead Type Hookless
  • Tubeless Capable Yes

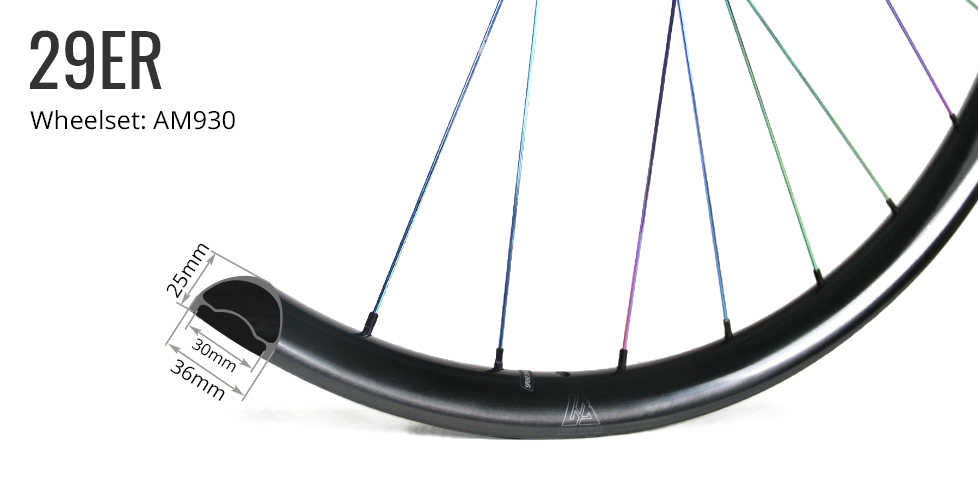

  • Inner/Outer Width 30mm/36mm
  • Depth 25mm
  • ERD 589mm (not including nipple head dimension)
  • Rim Weight 440+/-15g
  • Profile Asymmetric (2mm)
  • Max Cyclist Weight (on flat ground) 135kg/ 298lbs
  • Spoke Hole Angle ±7°
  • Spoke Tension 115~130kgf front disc side and rear drive side
  • Max Tire Pressure 40psi/ 2.75bar
  • Recommended Tire Width 2.2" ~ 2.7"

HUBS

We keep in stock the most popular axle sizes and colors of some well-liked hub models. If you want a special order, feel free to contact us (sales@lightbicycle.com).

  • Model DT SWISS 180, DT SWISS 240 EXP, DT SWISS 350, Industry Nine Hydra, Industry Nine 1/1, Chris King BOOST, Bitex BX212F / BX212R, Hope Pro 5, Onyx Vesper
  • Front Axle Size 15 / 100mm, 15 / 110mm BOOST, 15 / 100mm Torque, 15 / 110mm RS-1, 15 / 110mm Torque, 20 / 110mm BOOST DH, 20 / 110mm Old DH, Lefty 2.0 Supermax, QR / 100mm
  • Rear Axle Size 12 / 142mm, 12 / 148mm BOOST, 12 / 157mm Super BOOST, 12 / 150mm, QR / 135mm, Single Speed
  • Driver Body Shimano MTB 10/11S, Sram XD, Shimano MTB 10/11S Alloy, Sram XD Alloy, Shimano Micro Spline, Shimano Micro Spline Alloy
  • Hole 28H, 32H

OTHER PARTS

Leave a note at checkout or contact us if you want spare spokes or nipples.

  • Spokes Sapim D-Light, Pillar Wing 20 in Oil Slick Color (For Bitex Hub only), Sapim CX Ray, Oil slick J-bend, Sapim Race
  • Nipples Aluminium Black, Aluminium Red, Brass Oil slick, Brass Black, Aluminium Silver, Aluminium Blue, Aluminium Gold, Aluminium Green, Aluminium Lime, Aluminium Orange, Aluminium Purple

TECH

Our new wide format All Mountain wheel is a show stopper with its new scratch resistant BlackTek finish. Run all your favourite high volume tires and enjoy the benefits of our modern asymmetric profile.

The 30mm internal width has become one of the most popular widths in recent years, and for good reason! With the advancement of lightweight wide carbon rims, you get the traction and high volume benefits of a wide rim without all of the added weight. The AM930’s will give you a more reliable tubeless fit, increased stiffness, and significantly lower weight over a stock wheelset. Breath new life into your bike!


Learn More >>

WARRANTY

For Non-Pro Series Rims: From the date of purchase, 3-year Standard Warranty.

For Pro Series Rims: From the date of purchase, 5-year Pro Warranty as standard and an upgraded optional lifetime Premium Warranty with minimum charge.

Crash Replacement: It is applicable with the same period as the warranty time range that you purchased for the rims with 10% /25% discount for Non-Pro series /Pro series.

Learn More >>


WHAT IS IN THE BOX


Our new wide format All Mountain wheel is a show stopper with its new scratch resistant BlackTek finish. Run all your favourite high volume tires and enjoy the benefits of our modern asymmetric profile.

The 30mm internal width has become one of the most popular widths in recent years, and for good reason! With the advancement of lightweight wide carbon rims, you get the traction and high volume benefits of a wide rim without all of the added weight. The AM930’s will give you a more reliable tubeless fit, increased stiffness, and significantly lower weight over a stock wheelset. Breath new life into your bike!

  • Overview

    Our new wide format All Mountain wheel is a show stopper with its new scratch resistant BlackTek finish. Run all your favourite high volume tires and enjoy the benefits of our modern asymmetric profile.

    The 30mm internal width has become one of the most popular widths in recent years, and for good reason! With the advancement of lightweight wide carbon rims, you get the traction and high volume benefits of a wide rim without all of the added weight. The AM930’s will give you a more reliable tubeless fit, increased stiffness, and significantly lower weight over a stock wheelset. Breath new life into your bike!

  • Specs

  • Tech

  • Warranty

  • In The Box

Light Bicycle : Rims: AM930 UD Paintless 32H External Hole No Drain Holes With Access Holes Hubs: Onyx Vesper Anodized-Pink 15/110mm 12/148mm Boost J-bend 6-bolt Sprag Clutch Sram XD Alloy Spokes: Berd PolyLight Black J-bend Nipples: Sapim Brass Black External
1
John : Industry Nine Hydra Hubs with Recon Pro AM930 Rims. Fair price, excellent build quality, quick delivery. I've had these for 2 years now and no need to have them trued.
United States
1
Chris : These AM930’s are stiff and light. I love them.
United States
1
Dylan : 65 hours of deep snow, thick mud, swift creek crossings, sand, and grit. These were the conditions on this year’s Stagecoach 400 Ultra Endurance Bikepacking Race I just completed with my Light Bicycle AM930 carbon wheelset. During a race like this, sleep deprivation, calorie chasing, and consistent moving time are my main objectives - not worrying about components or mechanicals. This is where the AM930’s just work! They’re burly enough to handle chunky singletrack with heavy bikepacking loads, light enough to roll fast and stay nimble, and a perfect balance of flex and stiffness you only get from quality materials and expert wheel building, all for a great price and with exceptional customer service.
United States
1
Light Bicycle : Rims: AM930 UD Paintless 32H External Hole No Drain Holes With Access Holes
1
Tom : 2 AM930 and 1 AM930S with Sapim CX-Ray. Onyx Vesper, Chris King, and Stan’s Single Speed.
United States
1
Light Bicycle : RIMS: AM930 UD Paintless 28H External Hole No Drain Holes With Access Holes HUB-F: DT SWISS 240 EXP Black 15 / 110mm BOOST straight pull Centerlock 28H HUB-R: DT SWISS 240 EXP Black 12 / 148mm BOOST straight pull Centerlock 28H EXP 36T Sram XD SPOKE: Sapim D-Light NIPPLE: Sapim Brass Black
1
Light Bicycle : Rims: AM930 28H paintless UD Lifetime Hubs: DT SWISS 180 straight pull center lock 15/110mm 12/148mm BOOST 36T Shimano Microspline (MS) Spokes: Sapim CX Ray Nipples: Sapim aluminum red
1

View More Reviews >>

COMMENTS

E

Eric 2021/07/28

Hello! Im in the market for a custom wheelset for my 2021 Yeti SB115. Im not sure how the parts odering goes. I need help building a pair. Thank you! I would like to replace my current wheelset close to or comparable with what I have right now. Preferred hubs: i9 hydra , hope pro 4, onyx vesper Current Wheelset: DT Swiss M1900 wheelset 110x15mm Boost front 148x12mm Boost rear with XD driver 30mm inner width Rider Info: 170 lbs. Rides mostly flowy and sometimes technical trail but no high jumps and drops


LightBicycle 2021/07/29

Hi Eric, We just sent you the 29er wheelset recommendationg through email. Please check accordingly. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

N

neveo 2020/11/04

trying to find a wheel comaparble to an ibis s35 with industry hub, i do all mountain and weight 240 lbs. how many spokes and what type , and what rim option should i use


LightBicycle 2020/11/05

Hi Neveo, 1. Most used spokes for all-mountain wheels are 32H and 28H. If you don't plan to do anything aggressive, or jumps, drops. The 28H would be enough for you. But if you are worried about the strength of the wheels, you can go with front 28H and rear 32H. Or, even 32H for both the front and rear. 2. Do you prefer Industry Nine 1/1 or Hydra hubs? Please confirm the spoke type, rotor type, and freehub body that you want. 3. The AM930 29er all mountain is from our pro lineup, so no post-finish is applied. The rims are fixed with UD, paint-less. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

K

Kenny 2020/10/14

Can you make the AM 930 in flyweight and 28 hole?


LightBicycle 2020/10/15

Hi Sir, Yes, we can custom a lighter version of AM930 (30mm internal) 29er all mountain bike rim. But first, I would have to ask a few questions because a lighter version will make the rims less strong. I will have to evaluate to make sure that it's ok for you to ride on a lighter version of the AM rim. 1. What's your weight? 2. What type of riding you do? Any jumps or falls? 3. How's the terrain? Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

T

Thomas 2020/08/25

I would like to know if the AM930 can be made in a flyweight version. I'm 135 pounds and race xc. I would definitely like the 30mm internal width but looking for a lighter rim if possible. Thank you!


LightBicycle 2020/08/27

Hi Thomas, Yes, we can make the AM930 a lighter version. Can you tell me more about the riding you plan to do with the lighter version of AM930 29er bike rim? Then we can check how much weight and rim strength is better for you. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

J

Jason 2020/01/30

Can you get DT Swiss 240 straight pull, 28 spoke hubs for your builds?


LightBicycle 2020/01/31

​Hi Jason, Yes, we can get 28H straight pull for DT Swiss 240S hubs. You have to shop on global shop. Please check below picture for your reference. If you can not find it, you can list your 29er wheels order specs here. We can work on invoice accordingly for you. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

M

M 2020/01/05

Hello! What rear hub and disc mount options (6-bolt, Centerlock) do you have available for Superboost Plus 157 for Pivot Bikes? What are their weights? Thanks!


LightBicycle 2020/01/06

Hi Sir, 1. Yes, we do have Super boost 12/157mm hubs available. Hope Pro 4 (322g) and Industry Nine 1/1 (292g), which would be your pick for your 29er mountain bike wheelset? Note that the weight would be different with a different freehub. 2. The super-boost hubs are only available in 6-bolt, J-bend. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

F

frank 2019/09/17

pricing looks wrong, just configured some 29er am930 final price is saying $1200. That has to be like $500 over what it should be can someone please get back to me


LightBicycle 2019/09/18

Hi Frank, 1. First of all, could you provide the exact specs that you configurated so I can check if the price is correct? 2. This 29er wheelset is built with our Recon Pro series rim AM930, it's different from your last order RM29C07(35mm wide, from RECON series). You can check out the Pro/non-pro rim technologies and see the reason why the price is higher. https://www.lightbicycle.com/series/mtb/rim/recon https://www.lightbicycle.com/series/mtb/rim/recon-pro 3. The Global warehouse and North America warehouse are with different pricing for the same product as the North America warehouse already covers the tax, duty, brokerage fees, and other surcharges. You can choose to place the order from Global warehouse if you like. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

J

Jürgen 2019/08/12

Hi, I bought extralight XC rims back in 2013 and nevertheless they were finally used for bike mountaineering they are absolutely flawless ! If I want to order a rim/wheel, which is not on your stocklist, how long will the lead time be ? sincerely, Jürgen


LightBicycle 2019/08/12

Hi Juergen, ​ It is appreciated that you like our products. I found your order is RM29C06-27mm wide 29er bike rims 6 years ago. Do you like the same rim or change to AM930(30mm inner width) rim? We have AM930 32H in stock. We can ship out in 1~2 days once you place the order. ​ Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

J

Janne 2018/10/19

Prince for set, with tpd delivery to Finland


LightBicycle 2018/10/20

Hi Janne, We sent the mtb wheelset AM930 price to your email address. Please check. What hubs do you like? We have DT Swiss 240S/350/Hope/Industry Nine/Onyx hubs. Thanks, Lightbicycle


J

Jussi 2019/07/19

Hi, can you send the shipping cost for me as well? Am930 wheelset


LightBicycle 2019/07/20

Hi Jussi, We offer two shipping plan for packages to Finland. Let me know which would be your pick. The TPD is not available online currently, if you like to go with TPD, I will create the invoice for you accordingly. The shipping and delivery time would be the same, 7~10 days. --EMS(Post system): USD93 for one complete bike wheelset, tax not included. But we will lower the declared value to USD220/wheelset so you can pay less tax. --TPD(Tax-Prepaid Delivery): USD156.1 for one complete wheelset, tax included. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

R

Rob 2019/04/20

Can you lay these up in ultralight you do on other rim profiles?


LightBicycle 2019/04/22

Hi Rob, May I ask what kind of riding you do? And how much weight with gear on? If you are planning on doing some aggressive or hard terrain, I won't recommend going lighter. After getting on your reply, we can check whether we can customized ligher version AM930 29er mtb rims for you. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

J

John 2019/02/27

What is the durability difference between the AM930 and EN932, I prefer a 30mm internal width on the AM930, but I am worried about how well they will stand up to hard riding because of their lighter weight, I tend to be hard on wheels.


LightBicycle 2019/02/28

Hi John, Here's the comparison between AM930 and EN932 for your reference. You can also compare other MTB rims by using our comparison tool at https://www.lightbicycle.com/product-compare/Rim-strength-comparison-on-29ER.html. You can find the entrance on the bottom navigation of our website as well. As you can see from the below screenshot, the EN932 is stronger than AM930 in all three dimensions. If you are looking for a durable rim, EN932 29er enduro rims/wheels would be a good choice. You can build a wheelset with hubs like DT SWISS 240s to make the wheelset stronger. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

P

Phil 2018/12/03

Hi. What are your shipping costs to the UK? Thanks


LightBicycle 2018/12/03

Hi Phil, Do you like 29er rims or 29er wheelset? We just sent the shipping cost to your email address. Please check. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

A

Adam 2018/11/22

Hi, How does the vertical stiffness compare for the AM927, AM928 and AM930? Thanks, Adam


LightBicycle 2018/11/22

Hi Adam, For carbon fiber rims, vertical stiffness can not be too stiff. For lateral stiffness, stiff is better. And you will also have to look at the final impact strength. The highest is the best. We send test data compare among these three 29er bike rim to your email. All the data will be uploaded on our website soon. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.
