Build Your Falcon WHEEL R88 disc Front Wheel

All wheels are 100% customizable at Light Bicycle. If your preferred specs are not listed, feel free to contact us (sales@lightbicycle.com) with your special requirements described.


Buy rim only

WHEELSET SPECS

RIMS

Our Pro series comes with a 5-year warranty (lifetime optional), while the non-pro with a 3-year warranty and crash replacement.

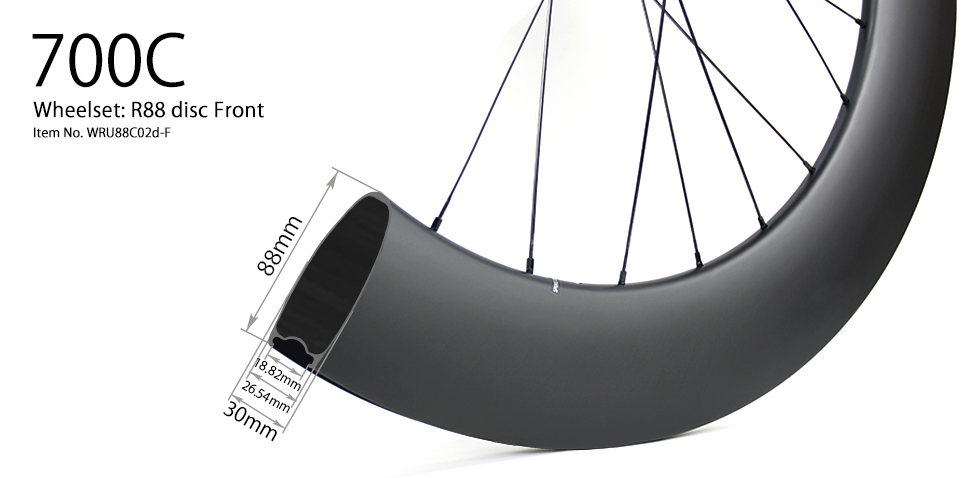

  • Rim Model R88 disc
  • Material Toray T700 & T800 Premium Carbon Fiber
  • Size 29”/700C (ETRTO 622mm)
  • Series FALCON
  • Intended Use Road
  • Bead Type Clincher
  • Tubeless Capable Yes
  • Inner/Outer Width 18.82mm/26.54mm
  • Depth 88mm
  • ERD 463mm (not including nipple head dimension)
  • Rim Weight 650+/-20g
  • Profile Symmetric (0mm)
  • Max Cyclist Weight (on flat ground) 135kg/ 298lbs
  • Spoke Hole Angle ±9°
  • Spoke Tension 120~135kgf front disc side and rear drive side
  • Max Tire Pressure (with 25C) 120psi/ 8.27bar
  • Recommended Tire Width 21C-38C

Read more for actual road tire width

HUBS

We keep in stock the most popular axle sizes and colors of some well-liked hub models. If you want a special order, feel free to contact us (sales@lightbicycle.com).

  • Model DT SWISS 240 EXP, DT SWISS 350, Novatec D411SB, Novatec A165SBT
  • Front Axle Size 12 / 100mm, 9 / 100mm Track, QR / 100mm
  • Hole 20H, 24H

OTHER PARTS

Leave a note at checkout or contact us if you want spare spokes or nipples.

  • Spokes Sapim CX Ray
  • Nipples Aluminium Black, Aluminium Red, Brass Oil slick, Brass Black

TECH

The R88 disc offers unmatched aerodynamics with an ultra depth of 88mm. Light weight. Responsive. Speed. Be the first across the finish line. The deep-section aero wheel is compatible with the disc brake system, allowing for wider clearance and better stopping power.

To complete an aero setup, we suggest pairing the R88 front wheel with our all-new full-disc rear wheel.


Learn More >>

WARRANTY

For Non-Pro Series Rims: From the date of purchase, 3-year Standard Warranty.

For Pro Series Rims: From the date of purchase, 5-year Pro Warranty as standard and an upgraded optional lifetime Premium Warranty with minimum charge.

Crash Replacement: It is applicable with the same period as the warranty time range that you purchased for the rims with 10% /25% discount for Non-Pro series /Pro series.

Learn More >>


WHAT IS IN THE BOX


The R88 disc offers unmatched aerodynamics with an ultra depth of 88mm. Light weight. Responsive. Speed. Be the first across the finish line. The deep-section aero wheel is compatible with the disc brake system, allowing for wider clearance and better stopping power.

To complete an aero setup, we suggest pairing the R88 front wheel with our all-new full-disc rear wheel.

  • Overview

    The R88 disc offers unmatched aerodynamics with an ultra depth of 88mm. Light weight. Responsive. Speed. Be the first across the finish line. The deep-section aero wheel is compatible with the disc brake system, allowing for wider clearance and better stopping power.

    To complete an aero setup, we suggest pairing the R88 front wheel with our all-new full-disc rear wheel.

  • Specs

  • Tech

  • Warranty

  • In The Box

Light Bicycle : Rim: R88 Disc UD Matte 20H External Hole With Drain Holes With Access Holes Hub: Novatec A165SBT Black 9 / 100mm Track J-bend 20H Spokes: Sapim Leader Black J-bend Nipples: Sapim Brass Black
1
Light Bicycle : Rims: R88 Disc Matte UD 20/24H With Drain Holes With Access Holes Hubs: Novatec A165SBT A166SBT 9/100mm 10/120mm J-Bend Single Speed Spokes: Sapim CX Ray J-Bend Nipples: Sapim Aluminum Black
3
Light Bicycle : Rim: R88 Disc Brake 88mm Braided UD Satin Finish With Drain Holes No Access Holes Hub: DT Swiss 350 12/100mm Straightpull Centerlock 24H Spokes: Sapim CX Ray Nipples: Sapim aluminum red
2
Light Bicycle : Front: R88 Disc 24H Matte UD No Access Holes & DT Swiss 350 12/100mm & Sapim CX Ray & aluminum nipples Rear: UFO-C21 Disc Satin UD Hook With Valve Cover DT SWISS 350 12/142mm Shimano Road 11S 36T
1
