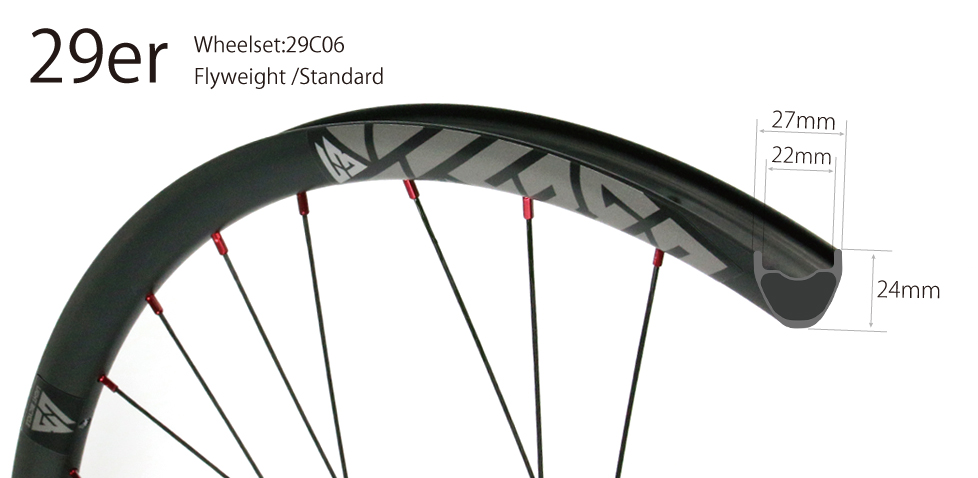

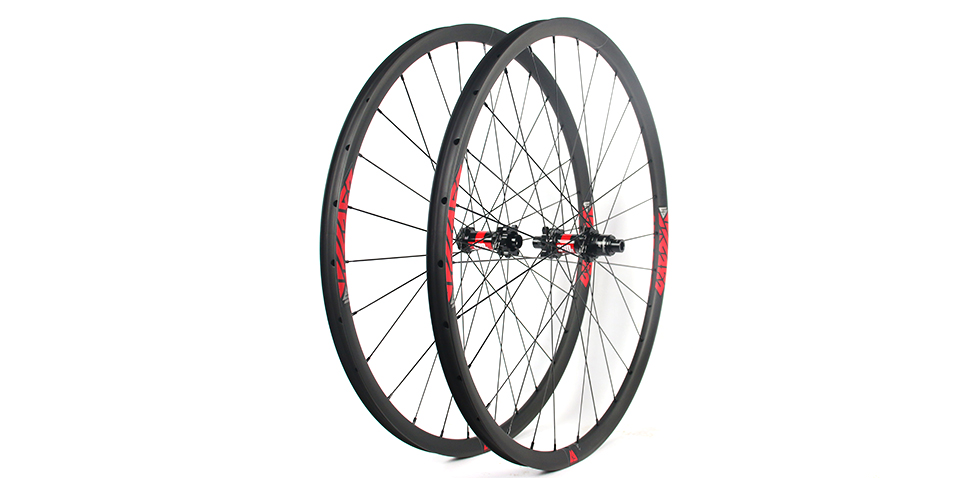

beadless carbon 29er XC light weight mtb tubeless wheelset hand-built 27mm wide

Build Your Recon WHEELSET RM29C06

All wheels are 100% customizable at Light Bicycle. If your preferred specs are not listed, feel free to contact us (sales@lightbicycle.com) with your special requirements described.

Buy rim only

Global Shop

NA Shop

EU Shop

AU Shop

Ships worldwide. See what's on sale>>

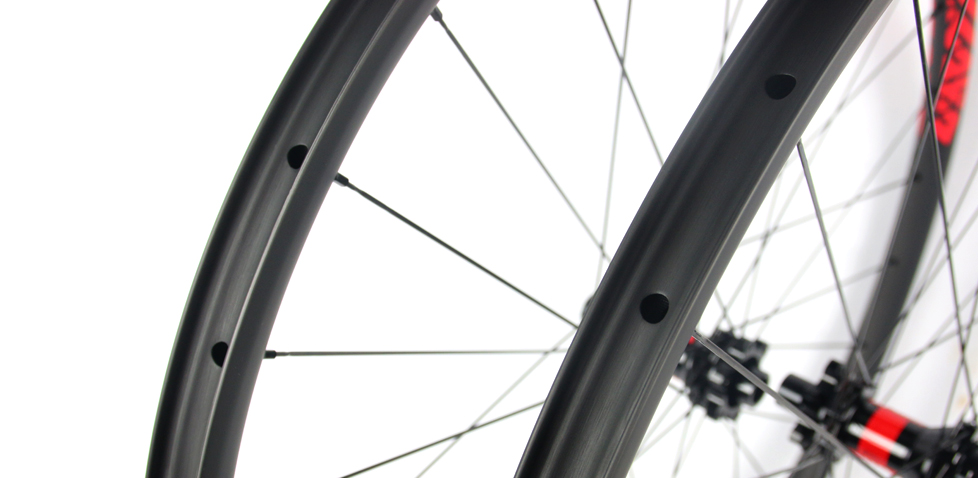

Drain Hole This is a required option.

With Drain Holes

Center Channel Hole This is a required option.

No Access Holes

Version This is a required option.

Front Flyweight / Rear Standard

Weave This is a required option.

Braided UD

DEFAULT SETTINGS

RIMS

Matte, UD, hook, blank (no decal), 24h

Paintless, UD, blank (no decal), 28h, with access holes

Standard, paintless, hook, blank (no decal), 24h, with drain holes, without access holes

HUBS

DT Swiss 350 Straightpull Centerlock Shimano Road 11s 36t

12/100mm (F) & 12/142mm (R)

DT Swiss 350 Straightpull Centerlock Sram XD 18t

15/110mm (F) & 12/148mm (R) boost

DT Swiss 350 straightpull centerlock Shimano Road 11s 36t

12*100mm (F) & 12*142mm (R)

SPOKES & NIPPLES

Sapim CX Sprint-rear drive side / CX Ray-other sides

Sapim aluminum black external

Sapim CX Ray & Sapim aluminum black external

Sapim CX Sprint-rear drive side / CX Ray-other sides

Sapim aluminum black external

ACCESSORIES

2 valves & 1 spare 18t ratchet

2 valves & 2 adapters (centerlock to 6-bolt)

2 valves & 1 spare 18t ratchet

Note: the wheelset price includes the warehouse transfer cost ($80).

Piece Weight: g+/-

Subtotal: USD +

Lead time: typically ships in 2 days

ADD TO CART You missed some options.

We do not stock this item at the European warehouse. See what we stock currently.

You can order this product from our Global or North American warehouse.

Please fill out this form with your special requests if you want to customize it. We will get back to you in 24hrs via email.

Center Channel Hole This is a required option.

No Access Holes

DEFAULT SETTINGS

RIMS

Matte, UD, hook, blank (no decal), 24h, with drain holes

Paintless, UD, blank (no decal), 28h, with access holes

HUBS

DT Swiss 350 Straightpull Centerlock Shimano Road 11s 36t

12*100mm (F) & 12*142mm (R)

DT Swiss 350 Straightpull Centerlock Sram XD 18t

15/110mm (F) & 12/148mm (R) boost

SPOKES & NIPPLES

Sapim CX Sprint-rear drive side / CX Ray-other sides

Sapim aluminum black external

Sapim CX Ray & Sapim aluminum black external

ACCESSORIES

2 valves & 1 spare 18T ratchet

2 valves & 2 adapters (centerlock to 6-bolt)

Note: the wheelset price includes the warehouse transfer cost ($80).

Piece Weight: g+/-

Subtotal: USD + (discount price)

Lead time: typically ships in 3 business days

ADD TO CART You missed some options.

We do not stock this item at the Australian shop. See what's available.

You can order this product from our Global / NA shops.

Please fill out this form if you are looking for a custom wheelset.

We'll get back to you soon to study the customization requests via email.

Our apologies, we do not offer this item at the Global warehouse.

Please order from other warehouses. Feel free to contact us (sales@lightbicycle.com) if you want to customize. We’ll get back to you in 24hrs.

Our apologies, we do not stock this item at the North American warehouse. Check this link to see what items we stock, or send us an email to discuss.

Our Global warehouse can make any rim model and ship worldwide. Please fill out this form with your special requests if you want custom rims/wheelset. We will get back to you via email to discuss in 24hrs.

Shopping Style

Options Features	Quick Buy	Full Custom
Options Features	Inventory	Parts in stock (Assembled upon order)	Manufactured upon order
Customization	Least customizable	100% Customizable
Lead Time	≤ 3 days	4 weeks typically
Availability	Limited models	All models
Shipping	Worldwide	Worldwide

Quick Buy (In Stock)

Full Custom (Made to Order)

DEFAULT SETTINGS

Rims

Hook, matte, UD, with drain holes

Hook, matte, UD, with access holes, with drain holes

Standard, hook, paintless, UD, 5-year warranty, with access holes, with drain holes

Front Flyweight / Rear Standard, paintless, UD, 5-year warranty, no drain holes

Paintless, UD, 5-year warranty, no drain holes

Grooved graphene surface, hook, matte, UD, with access holes, with drain holes

Grooved graphene surface, hook, matte, UD, no access holes, with drain holes

Matte UD, 32H, Centered (Staggered)

Hubs

Hope Pro 4 Fatsno J-bend 6-bolt

15/150mm (F) & 12/197mm (R) Sram XD

Straightpull centerlock black 24H

12/100mm & 12/142mm

Shimano Road 11S

DT Swiss straightpull / Bitex j-bend, centerlock, 28H

J-bend, DT Swiss 6-bolt / Bitex centerlock, 32H

15/110mm boost & 12/148mm boost Sram XD

DT Swiss straightpull / Bitex j-bend, black, 20H front / 24H rear

100mm QR & 130mm QR Shimano Road 11S

Spokes

Sapim CX Ray black

Sapim D-Light

Accessories

No decals/valves/tape

No decals/valves/tape/pads

No decals/valves

Piece Weight: g+/-

Subtotal: USD +

Lead time:

ADD TO CART

Hub Brand This is a required option.

Model	Weight	POE	Cost	Reliability	Quality	Unique Feature	Color Options	Warehouse Location	Website
Novatec	287g	27	Low	Good	Good	Inexpensive	Three	China	NOVATEC
Bitex	258g	24	Low	Good	Good	Light	Two	China	BITEX
DT 350	374g	18/36/54	Low	Better	Good	Quiet and reliable (18t option)	One	China	DT SWISS
DT 240S	317g	18/36/54	Medium	Best	Best	Quiet and reliable (18t option)	One	China/N.A.	DT SWISS
DT 240 EXP	299g	EXP 36	Medium	Best	Best	Quiet and reliable (EXP 36 )	One	China/N.A.	DT SWISS
DT 180	290g	EXP 36	High	Best	Best	Super Light, EXP 36	One	China/N.A.	DT SWISS
Chris King	326g	45	High	Best	Best	Rebuildable bearings	Nine	China	CHRIS KING
Industry Nine	327g	60	Medium	Better	Best	Loud, engagement	Eleven	China/N.A.	INDUSTRY NINE
Onyx	434g	Infinite	High	Better	Best	Silent, sprag clutch	Eighteen+ (Custom Available)	North America	ONYX
Carbon-Ti	270g	56	High	Better	Best	Extreme Light	Nine	China	Caron-Ti
ARC	332g	48	Low	Better	Good	Economic and reliable	One	China	ARC
Chosen	260g	24	Low	Better	Good	Economic and reliable	One	China	Chosen
Light Bicycle Speed-Hub V1.0/V2.0	335g	24-V1.0/ 36-V2.0	Low	Better	Good	Proprietary for Carbon Spokes Steel Bearing-V1.0/ Ceramic-V2.0	One	China	Light Bicycle

Besides hubs listed to choose online directly, you could also have more others built to the wheels on your custom order by contacting us.
See more about Light Bicycle's FULL HUB OPTIONS

* POE = Points of Engagement

* DT hubs come standard with an 18t star ratchet but are upgradeable to 36 or 54t.

* Average weight will vary slightly depending on axle and freehub combination.

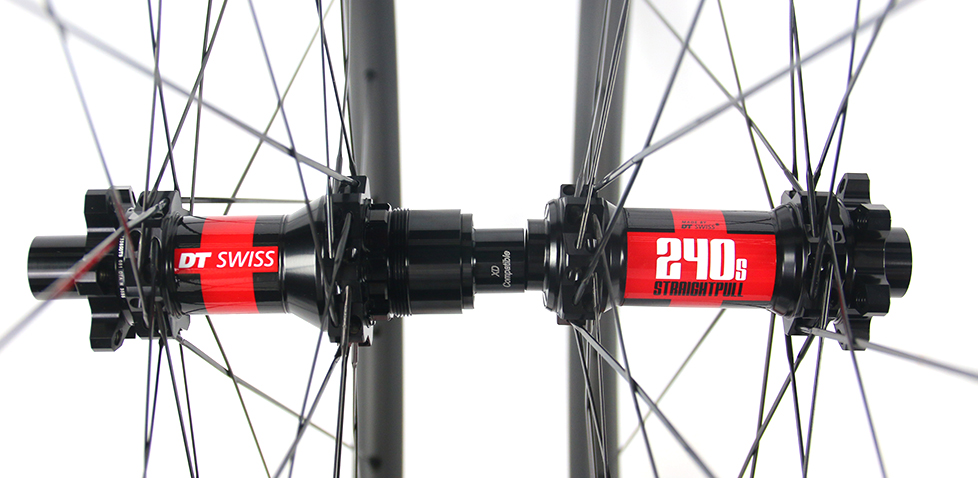

DT SWISS 180

DT SWISS 240 EXP

DT SWISS 350

Industry Nine Hydra

Industry Nine 1/1

Chris King BOOST

Bitex BX212F / BX212R

Hope Pro 5

Front Axle This is a required option.

If the size you need is not listed, please contact us and we'll reach out to you to confirm your order.

By default, skewers are only offered with QR hubs.

15 / 100mm

15 / 110mm BOOST

Rear Axle This is a required option.

If the size you need is not listed, please contact us and we'll reach out to you to confirm your order.

By default, skewers are only offered with QR hubs.

12 / 142mm

12 / 148mm BOOST

12 / 157mm Super BOOST

Freehub Body This is a required option.

1. Shimano Road 11S works with 11/12-speed cassette directly or 8/9/10-speed mountain cassette with a spacer(s) .
2. Shimano MTB 10/11S works with 8/9-speed directly or 10-speed with a spacer or 11-speed road cassette if one of the inner cogs removed.
3. Campagnolo (Campy) 11S works with 9/10/11/12-speed Campy cassette with no spacers required.
4. Sram XDR could run XDR (road) cassette inherently and is compatible to run mountain bike XD cassette with a 1.85mm spacer.
5. Shimano Micro Spline (MS) works with 12-speed MS cassette only.

Shimano MTB 10/11S

Sram XD

Shimano MTB 10/11S Alloy

Sram XD Alloy

Shimano Micro Spline

Shimano Micro Spline Alloy

Spoke Head This is a required option.

J-bend version: use J-bend hubs and spokes
Straight pull version: use straight pull hubs and spokes

straight pull

J-bend

Brake System This is a required option.

6-Bolt is the more common traditional option.
Centerlock uses a unique interface and it is also convertable to 6-bolt. If you need the conversion kit, please contact us. Our hubs are provided without rotor lockrings by default.

6-bolt

Center lock

Hub Color This is a required option.

Black

Matte Black

Matte Turquoise

Oil Slick

Orange

Red

Turquoise

Front Holes Count This is a required option.

Please note that our valves are drilled for presta and spoke holes are made for external nipples by default.

Full Custom: This option (if provided here to choose) offers custom drilling for any other hole counts or special drilling (e.g G3/ 2:1 etc), most of which are at no extra charge. If you select this option and LEAVE YOUR TAILORED REQUIREMENT IN THE NOTES AT CHECKOUT, we will reach out to you once the order is placed.

28H

32H

Rear Holes Count This is a required option.

Please note that our valves are drilled for presta and spoke holes are made for external nipples by default.

28H

32H

Ratchet This is a required option.

DT Swiss hubs use star ratchets and are available in 4 different models with varying points of engagement.

18T - Deepest teeth, slowest engagement, least amount of maintenance, suitable for powerful riders.

36T - Happy medium, doubles the engagement points.

54T - Super fast engagement, but shallow teeth require more careful re-greasing and the thru-axle should be checked every ride.

24T - Made out of hardened steel as e-bike specific.

EXP 36 - With only a single spring, making the hubs faster and lighter. More precise contact makes a longer lifespan.

EXP 54 - Upgraded from EXP 36 to gain incredibly faster engagement.

27T

36T

54T

690T

72T

90T

EXP 36

EXP 54

Spoke This is a required option.

Brand	Model	Type	Thread Diameter (mm)	Weight(g)	Gauge	Riding Style	Available(Warehouse Location)
Sapim	Race	Double Butted	2.0 - 1.8 - 2.0	5.7g (260mm)	14G	Heavy Duty	North America, China
Sapim	D-Light	Double Butted	2.0 - 1.65 - 2.0	4.8g (260mm)	14G	Versatile	North America, China
Sapim	CX-Ray	Aero	2.0 - 0.9/2.2 - 2.0	4.4g (260mm)	N/A	Light Aero	North America, China
Sapim	CX-Sprint	Aero	2.0 - 1.25/2.25 - 2.0	5.2g (260mm)	N/A	Light Aero	China
DT SWISS	Competition Race	Double Butted	2.0 - 1.6 - 2.0	4.8g (260mm)	14G	Versatile	China
Pillar	PSR X-TRA 1420	Aero	2.0 - 0.95/2.2 - 2.0	4.4g (260mm)	N/A	Inexpensive Aero	China
Pillar	Wing 20	Aero	2.2 - 1.2/2.0 - 2.0	4.3g (260mm)	N/A	Light Aero	China
Light Bicycle	Oil slick J-bend	Single butted	2.0 - 2.0 - 1.95	6.7g (260mm)	14G	Cool color	China
Light Bicycle	LB Flyweight Carbon (Regular Edition-Bladed)	Aero	3.2-1.5/3-3.2	2.65g (SP, 260mm); 2.8g (J-bend,260mm)	N/A	Light Aero/Stiff	China
Light Bicycle	LB Flyweight Carbon (Regular Edition-Butted)	Aero	2.3 - 2/2.3-2.3	2.3g (SP, 260mm)	N/A	Light/Stiff	China
Berd	PolyLight	Rope-like	2.0-1.8	2.5g (260mm)	N/A	Extreme Light	North America

Sapim D-Light – The best all-around and most popular spoke for carbon wheels. Lightweight but incredibly strong.
Sapim Race – Our strongest and stiffest spoke. These spokes are suitable for heavy or extremely aggressive riders who need a stiffer wheel.
Sapim CX-Ray – The lightest spoke in our lineup is still quite strong due to the elasticity and amazing fatigue life.
DT Competition Race - All Mountain and XC spoke used by the Chinese location as a substitue for the D-Light (depending on availability)
Pillar PSR X-TRA 1420 - An inexpensive bladed spoke, great for road and cyclocross riding.
Pillar Wing 20 - Pillar patented highest level of aerodynamic bladed spoke reducing potential weak spots and twisting during tensioning. Currently, they are offered in oil slick color only with increased wear and corrosion resistance.
Sapim CX Sprint-Rear drive side/ CX Ray-Other sides - This customized combo increases the rear drive side power transmition efficiency significantly while grabs superior light-weight and aero performance.
Oil slick J-bend - They are made by a qualified manufacturer in Taiwan with custom design by Light Bicycle. They are J-bend only so do not order these spokes for SP hubs you configured in the previous step.
LB Flyweight Carbon Regular Edition >> -It maximizes wheel stiffness while keeping things more aero, designed to unlimit your hub choice making your wheels more customizable than ever.
LB Flyweight Carbon Special Edition >> - It maximizes wheel stiffness while keeping things light, designed to pair seamlessly with our Speed Hubs through the use of specially designed aluminium nipples.
Berd PolyLight >> - It is constructed from an advanced polymer called ultra high molecular weight polyethylene (UHMWPE) and are widely considered to be the lightest bicycle spoke option in the world.

Sapim D-Light

Sapim CX Ray

Oil slick J-bend

Nipple This is a required option.

Nipple Brand	Model	Material	Color	Length	Available (Warehouse Location)
Sapim	Double Square Secure Lock	Alloy	Black, Red, Green, Blue, Gold, Lime, Purple, Orange	16mm	Norh America
Sapim	Polyax/ Polyax Secure Lock	Alloy	Black, Red, Green, Blue, Gold, Lime, Purple, Orange	14mm	China
Sapim	Polyax Secure Lock	Brass	Black	14mm	China/N.A.
DT Swiss	DT SQUORX (PRO HEAD PRO LOCK)	Alloy	Black, Red	15mm	China
DT Swiss	Standard PRO LOCK	Brass	Black	14mm	China
Light Bicycle	N/A	Brass	Oil slick	14mm	China
Light Bicycle	Aluminium Black (for carbon spokes)	Alloy	Black	8.9mm	China

Please select Aluminium Black (for carbon spokes) nipples when you have chosen LB Flyweight Carbon spokes.

Aluminium Black

Aluminium Red

Brass Oil slick

Brass Black

Version This is a required option.

Version	RM29C06(d) Standard	RM29C06(d) Flyweight
Weight	360+/-15g	280+/-15g
Material	Toray T700	Toray T800 and T700
Layup	Standard Layup. Good for rear and front	New layup for weight saving. Best for front
Warranty	3 years warranty 3 years crash replacement with 10% discount	3 years warranty 3 years crash replacement with 10% discount
Max Weight	100kg	90kg

Standard

Flyweight USD +15

Finish This is a required option.

Matte is slightly lighter and a more subtle finish (most popular). Glossy has a shine to it.

Full Custom: This option (if provided here to choose) offers custom finish such as Satin/Raw etc at no extra charge but subject to rim models with 3-5 days LONGER on manufacture. And custom color painting is also available with added 15g/rim and extra $20USD/rim as a start. If you select this option and LEAVE YOUR TAILORED REQUIREMENT IN THE NOTES AT CHECKOUT, we will reach out to you once the order is placed.

Glossy

Matte

Full Custom

Weave This is a required option.

The layup schedule is predetermined for each model, but you can choose the outer layer for cosmetic appearence.

The rim strength & weight is virtually identical.

Matte UD is the most popular and has a subtle look.

The futuristic Hexa-Comb and Braided UD are smooth and looks great on deep rims.
More info about Weave >>

Full Custom: This option (if provided here to choose) offers custom weaves such as 3k twill vertical/ horizontal/ Braided UD etc with extra charge of $15USD/rim as a start but subject to rim models with 3~5 days LONGER on manufacture. If you select this option and LEAVE YOUR TAILORED REQUIREMENT IN THE NOTES AT CHECKOUT, we will reach out to you once the order is placed.

12K

Full Custom USD +15

Drain Hole This is a required option.

The two small drain holes located 90° to the valve hole effectively help evacuate both the water trapped inside the rim and the air leaking into the rim chamber caused by nonperfect tubeless tape sealing handwork that may risk rim explosure in an aggressive tire inflating.

It is the small reinforced layer prelaminated on the area where the drain hole is drilled later that makes the rim strength fairly ensured without any compromise of weight added.

Riders who ride in wet areas are suggested to order rims with drain holes.
More info about holes >>

With Drain Holes

No Drain Holes

Decal This is a required option.

The new graphics are included and available in 7 colors. The decals are now easily replaceable so you can keep your rims looking fresh.

Silver

Blue

Green

Magenta

Orange

Red

Yellow

Blank (No decal)

Valve Stem This is a required option.

We use a lightweight black alloy anodized valves with an oversized concave collar for easy gripping. A rubber o-ring goes in between the rim and the collar to help seal the rim and match the contour of the rim profile. The valve core is removable so you can add sealant without removing your tire.
Link to tubeless valve instructions

None

Add Valve Stem USD +7 each

Tubeless Tape This is a required option.

Add Tubeless Tape: A roll of 10-yard-long tape is provided separately as parts to do the favor for those who treasure the dirt in the hand and are passionate in DIY stuff.
Information of tubeless rim tape

Apply Tubeless Tape: In Light Bicycle, a proprietary taping aid works with our wheel builders to guarantee that a solid taping craft at industrial-level is well implemented in order for you to ride carefree tubeless at any conditions.

You do NOT have to use any tubeless tape to run tubeless if you have chosen "No Access Holes" on the rim center channel.

None

Add Tubeless Tape USD +6 each

Apply Tubeless Tape USD +6 each

Rear Wheel Dishing Pattern This is a required option.

While the vast majority of frames require Centered (Traditional) dishing, those of Cannondale’s with Ai offset design (Asymmetric Integration) comply with a special kind of offset dishing for the rear wheel.

Know more about Cannondale’s Ai technology >>

Centered (Traditional)

Ai offset- 6mm

Ai offset- 3mm

Send Photos for Shipping Confirmation This is a required option.

Send Photos for Shipping Confirmation could be offered at NO extra charge so that you could have your tailored products viewed/inspected before shipping and the photos shared with your friends in advance.

It takes about 1~3 business days added to the lead time subject to the orders queuing status.

If you have any special requirement on the photos, such as weight measurement, please leave a note at checkout.

Yes (1-3 days longer)

No ( I do not need photos)

Recon Pro orders start shipping in October.

- + Pair

Piece Weight: 1125.00g+/-3%

Subtotal: USD 573+

PREVIOUS NEXT

WHEELSET SPECS

RIMS

Our Pro series comes with a 5-year warranty (lifetime optional), while the non-pro with a 3-year warranty and crash replacement.

Model RM29C06
Material Toray T700 & T800 Premium Carbon Fiber
Size 29"/29er (ETRTO 622mm)
Series RECON
Intended Use Cross Country
Bead Type Hookless
Tubeless Capable Yes
Inner/Outer Width 22mm/27mm
Depth 24mm
ERD 593mm (not including nipple head dimension)
Rim Weight Flyweight 280+/-15g, Standard 360+/-15g
Profile Symmetric (0mm)
Max Cyclist Weight (on flat ground) Flyweight 90kgs/ 198lbs, Standard 100kgs/ 220lbs
Spoke Hole Angle ±5°
Spoke Tension 115~130kgf front disc side and rear drive side
Max Tire Pressure 40psi/ 2.75bar
Recommended Tire Width 1.9" ~ 2.3"

HUBS

We keep in stock the most popular axle sizes and colors of some well-liked hub models. If you want a special order, feel free to contact us (sales@lightbicycle.com).

Model DT SWISS 180, DT SWISS 240 EXP, DT SWISS 350, Industry Nine Hydra, Industry Nine 1/1, Chris King BOOST, Bitex BX212F / BX212R, Hope Pro 5
Front Axle Size 15 / 100mm, 15 / 110mm BOOST
Rear Axle Size 12 / 142mm, 12 / 148mm BOOST, 12 / 157mm Super BOOST
Driver Body Shimano MTB 10/11S, Sram XD, Shimano MTB 10/11S Alloy, Sram XD Alloy, Shimano Micro Spline, Shimano Micro Spline Alloy
Hole 28H, 32H

OTHER PARTS

Leave a note at checkout or contact us if you want spare spokes or nipples.

Spokes Sapim D-Light, Sapim CX Ray, Oil slick J-bend
Nipples Aluminium Black, Aluminium Red, Brass Oil slick, Brass Black

The Flyweight is a new series of wheels from Light Bicycle. Targeted specifically towards racers who seek every possible edge on the race course. Our goal was to produce the lightest possible wheels without sacrificing performance.

Drawing on our engineers’ years of experience and countless revisions in each step of the manufacturing process, we are able to produce a strong and stiff XC wheel while dramatically reducing the weight.

Construction: We used a special uni-directional pre-preg with a very low fiber areal weight. This is an exclusive process to our Flyweight rims. To further reduce the weight we used a blend of Toray T700 and T800 specific layups. We opted for a new subtle ultralight waterslide graphic in glossy black with a matte finish overtop in the spirit of keeping these as true cross country race oriented rims.

Rims

Our Pro series comes with a 5-year warranty (lifetime optional), while the non-pro with a 3-year warranty and crash replacement.

Model: RM29C06
Material: Toray T700 & T800 Premium Carbon Fiber
Size: 29"/29er (ETRTO 622mm)
Series: RECON
Intended Use: Cross Country
Bead Type: Hookless
Tubeless Capable: Yes
Inner/Outer Width: 22mm/27mm
Depth: 24mm
ERD: 593mm (not including nipple head dimension)
Rim Weight: Flyweight 280+/-15g, Standard 360+/-15g
Profile: Symmetric (0mm)
Max Cyclist Weight (on flat ground) : Flyweight 90kgs/ 198lbs, Standard 100kgs/ 220lbs
Spoke Hole Angle: ±5°
Spoke Tension: 115~130kgf front disc side and rear drive side
Max Tire Pressure: 40psi/ 2.75bar
Recommended Tire Width: 1.9" ~ 2.3"

Hubs

We keep in stock the most popular axle sizes and colors of some well-liked hub models. If you want a special order, feel free to contact us (sales@lightbicycle.com).

Model: DT SWISS 180, DT SWISS 240 EXP, DT SWISS 350, Industry Nine Hydra, Industry Nine 1/1, Chris King BOOST, Bitex BX212F / BX212R, Hope Pro 5
Front Axle Size: 15 / 100mm, 15 / 110mm BOOST
Rear Axle Size: 12 / 142mm, 12 / 148mm BOOST, 12 / 157mm Super BOOST
Driver Body: Shimano MTB 10/11S, Sram XD, Shimano MTB 10/11S Alloy, Sram XD Alloy, Shimano Micro Spline, Shimano Micro Spline Alloy
Hole: 28H, 32H

Other Parts

Leave a note at checkout or contact us if you want spare spokes or nipples.

Spokes: Sapim D-Light, Sapim CX Ray, Oil slick J-bend
Nipples: Aluminium Black, Aluminium Red, Brass Oil slick, Brass Black

Please carefully inspect your package when unboxing it and contact us immediately if it is damaged or if anything is missing.

Together we can make this planet better. Join our sustainability program to reduce paper waste using digital docs.

Download user guides >>

Overview

The Flyweight is a new series of wheels from Light Bicycle. Targeted specifically towards racers who seek every possible edge on the race course. Our goal was to produce the lightest possible wheels without sacrificing performance.

Drawing on our engineers’ years of experience and countless revisions in each step of the manufacturing process, we are able to produce a strong and stiff XC wheel while dramatically reducing the weight.

Construction: We used a special uni-directional pre-preg with a very low fiber areal weight. This is an exclusive process to our Flyweight rims. To further reduce the weight we used a blend of Toray T700 and T800 specific layups. We opted for a new subtle ultralight waterslide graphic in glossy black with a matte finish overtop in the spirit of keeping these as true cross country race oriented rims.
Specs
Rims

Our Pro series comes with a 5-year warranty (lifetime optional), while the non-pro with a 3-year warranty and crash replacement.

Model: RM29C06

Material: Toray T700 & T800 Premium Carbon Fiber

Size: 29"/29er (ETRTO 622mm)

Series: RECON

Intended Use: Cross Country

Bead Type: Hookless

Tubeless Capable: Yes

Inner/Outer Width: 22mm/27mm

Depth: 24mm

ERD: 593mm (not including nipple head dimension)

Rim Weight: Flyweight 280+/-15g, Standard 360+/-15g

Profile: Symmetric (0mm)

Max Cyclist Weight (on flat ground) : Flyweight 90kgs/ 198lbs, Standard 100kgs/ 220lbs

Spoke Hole Angle: ±5°

Spoke Tension: 115~130kgf front disc side and rear drive side

Max Tire Pressure: 40psi/ 2.75bar

Recommended Tire Width: 1.9" ~ 2.3"

Hubs

We keep in stock the most popular axle sizes and colors of some well-liked hub models. If you want a special order, feel free to contact us (sales@lightbicycle.com).

Model: DT SWISS 180, DT SWISS 240 EXP, DT SWISS 350, Industry Nine Hydra, Industry Nine 1/1, Chris King BOOST, Bitex BX212F / BX212R, Hope Pro 5

Front Axle Size: 15 / 100mm, 15 / 110mm BOOST

Rear Axle Size: 12 / 142mm, 12 / 148mm BOOST, 12 / 157mm Super BOOST

Driver Body: Shimano MTB 10/11S, Sram XD, Shimano MTB 10/11S Alloy, Sram XD Alloy, Shimano Micro Spline, Shimano Micro Spline Alloy

Hole: 28H, 32H

Other Parts

Leave a note at checkout or contact us if you want spare spokes or nipples.

Spokes: Sapim D-Light, Sapim CX Ray, Oil slick J-bend

Nipples: Aluminium Black, Aluminium Red, Brass Oil slick, Brass Black
Tech

Learn More >>
Warranty

For Non-Pro Series Rims: From the date of purchase, 3-year Standard Warranty.

For Pro Series Rims: From the date of purchase, 5-year Pro Warranty as standard and an upgraded optional lifetime Premium Warranty with minimum charge.

Crash Replacement: It is applicable with the same period as the warranty time range that you purchased for the rims with 10% /25% discount for Non-Pro series /Pro series.

Learn More >>
In The Box

Please carefully inspect your package when unboxing and get in touch with us immediately if the package is damaged or anything is missing.

Together we can make this planet better. Join our sustainability program to reduce paper waste with the use of digital manuals.

Download user guides >>

Gallery

light-bicycle-rm29c06-carbon-xc-wheels-29er

Light Bicycle : Rims: RM29C06 Standard 12K Matte 28/28H With Drain Holes With Access Holes Hubs: DT SWISS 240 EXP 15/100mm 12/148mm Boost Straightpull Centerlock EXP 36 Sram XD Spokes: Sapim D-Light black Nipples: Sapim Aluminium black external

super-light-carbon-xc-racing-wheelset-lightbicycle

Aki : During the years I have bought several superlight mtb 29" carbon rims from Light Bicycle. Please find attached the photos presenting my sub 1 kg racing wheels (Extralite Hyperboost, Berd spokes, Light Bicycle Flyweight rims) and one rear wheel built from DT240 hub, DT Revolution spokes, and Light Bicycle rim. Those photos are taken from my Instagram account called "kireapinnainen". In addition to those three wheels, I also have currently one front wheel that has been built from Tune Princess hub, Sapim CX-Ray spokes, and Light Bicycle rim.

Finland

light-bicycle-rm29c06-xc-race-wheels-santa-cruz-bike

Keven : RM29C06 Review These are my second XC wheels built with DT Swiss 240 hubs. Love the colour match with the bike and completed the Swiss Epic and Cape Epic races on these wheels. Other Light Bicycle rims Just to say that I still have my first set of Light Bicycle rims on my light blue Santa Cruz highball, and they’re still just as good as on day one! I’ve also got a great set of deep-section road wheels built with Light Bicycle rims – they look awesome and ride great.

UK(Britain)

industry-nine-hydra-high-performance-mtb-wheelset

Light Bicycle : Rims: RM29C06 29er Flyweight UD Matte W/ Drain Holes W/ Access Holes Hubs: Industry Nine Hydra 15/110mm 12/148mm Boost J-Bend 32/32H 690T Sram XD Spokes: Sapim D-Light J-Bend Nipples: Sapim Aluminum Black Price: US$ 1116.40 Weight: 1369.64g+/-25

Palal : WR45 Disc Road & RM29C06 MTB

Indonesia

gt-grade-carbon-pro-gravel-bike-on-light-bicycle-carbon-gravel-wheels

Adalberto : AR24 flyweight with Schwalbe G-One Allround on GT Grade Carbon. The rims are very light and seems sturdy.

Italy

RM29C06-flyweight-carbon-wheelset-with-continental-race-king-29er

Bjarne : My wheels arrived Yesterday, and I have now completed my build. Wuhuuu The LB wheels really complete this build.

Denmark

Light Bicycle : Rims: AR24 disc (RM29C06d) Flyweight UD Satin 24/24H Tubeless Hubs: Carbon-Ti X-Hub 12/100mm 6-bolt Straight pull Black Carbon-Ti X-Hub 12 /142mm Straight pull 6-bolt Sram XDR 56T Black Spokes: Pillar Aero X-TRA 1420 Black Nipples: Sapim Aluminium Black External Decals: Stealth (Grey) Weight: 1097.48 grams

View More Reviews >>

COMMENTS

Dan 2020/10/22

How much is shipping to the UK?

LightBicycle 2020/10/22

Hi Dan, Do you like rims only or 29er XC complete wheelset? We can quote accordingly for you. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Barry 2020/08/19

I need to replace my older gen 32 spoke Rovel carbon rear rim.The wheel is used on a gravel bike that can have up to a 40c tire.Rovel/ DT Swiss rear hub.I weigh 175lbs and ride aggressively .What carbon rim do you suggest?

LightBicycle 2020/08/20

Hi Barry, What tire pressure do you ride normally? May i know your weight please? Then we can check which gravel wheels are better for you. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

JoeHat 2020/08/16

Hi looking for some 29er carbon lightweight wheelst for my wifes Canyon Exceed sl 6.0. She uses it for street riding mostly, with 1.9 road tires mounted now. She weighs in at 170 lbs. 6 bolt discs and boost spacing . Interested in hi quality 36 hubs also , color blue is possible, thx

LightBicycle 2020/08/17

Hi Joehat, 1. Your wife is a light rider. Ours recommend rider range for RM29C06 (27mm wide) is under 90kg. So she will be ok with 28 spokes or 32 spokes. No need for 36 spokes since she mostly rides on the street. 2. Do you have budget of this XC wheelset? Then we can check which hubs and spokes are better. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Relu 2020/08/04

Hi , I need a set of wheels build with RM29C06 Cross Country flyweight. I would like a more budget friendly hub like Novatec straight pull centerlock disc (Novatec D411SB-CL D412SB-CL). Spokes should be sapim cx ray 24 spokes per wheel. Can you let me know if you can do this setup. Also, I have a werid setup bike with 15x100 thru axle front and 135 QR back. I wonder if the Novatec comes with adapters. Thank you

LightBicycle 2020/08/04

Hi Relu, Yes, we can build a 29er XC wheelset with Novatec hubs for you. Note that Novatec D411SB/D412SB are road hubs. And this model don't have the axle size you want. Will D791SB/792SB work for you? Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Luke 2019/09/29

Hello, I would like to order a set of wheels where the front can be switched between 100x15 and 100QR and the rear wheel can be switched between 135QR and 142x12. Disc brakes of course. I heard this is possible with DT Swiss 350 hubs and some endcap adapters. Do you sell these adapters, and if so how do I add them to the order?

LightBicycle 2019/09/29

Hi Luke, According to DT end cap solution, 350 Classic MTB db Center Lock (15 mm) and 350 Classic MTB db IS (15mm) can convert into 5mm Quick Release 5/100mm MTB. The 350 classic MTB db Center lock or IS can convert into 5mm Quick Release 5/135mm for ratchet Shimano Rotor or Sram XD MTB rotor. We just sent you the 29er XC wheelset price and end adapters quotation to your email address. Please check. Thanks, Lightbicycle

Mitch 2020/05/04

Hello, I am looking at doing the same thing. Could you please send me the information on the hub caps? Thank you.

LightBicycle 2020/05/05

Hi Mitch, Do you also want hub caps to convert between135mm*QR to 12/142mm for this 29er wheelset? Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Tony 2019/05/14

Riding a 2014 Specialized Epic Comp Carbon 29 XC riding / racing rider weight 150 pounds Interested in 29C06, need advise on setup, freehub, spoke head, spoke count and ratchet Looking at Swiss 240 hubs Thanks for any advise Tony

LightBicycle 2019/05/15

Hi Tony, Thanks for your inquiry! For your riding, we recommend below 29er XC wheelset specs for you. It is USD868/pair. - Rims: RM29C06 27mm wide, UD matte 28H standard version - Hubs: black DT Swiss 240S, front 15*100mm/rear 12*142mm, straight pull, 6-bolt disc, shimano MTB 10/11S, 18T ratchet - Spokes: black sapim cx-ray bladed straight pull - Nipples: black aluminum If it is with DT Swiss 350 hubs, it is USD716/pair. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Tomasz 2019/01/13

Mihao What's the weight of complete carbon wheels in the following specification: tubless ready / Novatec D411/D412 straight pull hubs for 142*12/100*15mm thru axle or similar / Shimano 11s / 28/28H or alternative. Which your product would you recommend? Looking for 1200g.. Xièxiè Tomasz

LightBicycle 2019/01/15

Hi Tomasz, 1. The weight for the configuration you asked is 1209g+/-25. The rims are flyweight version RM29C06 on the front and standard version on the back. Using Sapim CX-Ray spokes. Note that our rims are all handbuilt, so there is a tolerance of the final weight. Also, you might like to know the wheelset price is USD647/pair with the configuration mentioned. 2. Can you be more specific about your riding? I can't be sure the wheelset above fits your profile or not. Can you kindly provide below details so I can make some recommendations accordingly? --Your weight --What kind of riding you plan to do with the wheelset? XC? or gravel and road? --Tire width you use? --Are you consider yourself an aggressive rider? Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Esteban 2018/03/07

When you refer to maximum weight for the standard and flyweight versions, are you considering the combined weight of rider and bike or only rider?

LightBicycle 2018/03/08

Hi Esteban, The max weight is referred to the rider. Note that RM29C06 is intended design for XC racing . May i know your weight and riding style please? Then we can check whether it is strong enough for your riding or not. Thanks, Lightbicycle

Fritz 2018/10/13

Same question I am 175 Ride trails that are sometimes rough Thinking flyweight with 32 hole rims What do you think?

LightBicycle 2018/10/15

Hi Fritz, For the max weight limit, it's 100kg on standard rim and 90kg on flyweight rim. So, the flyweight wheels is OK for your weight and riding. The 32H wheels will be slightly stronger than 28H. The 32H wheels is also 40g roughly added compared to 28H wheels. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Patrick 2018/04/10

Any chance you will be making a flyweight XC rim that has a inner diameter of 25 with a outer of 30 or so? This seems to be where DT Swiss and Enve are going with there light race wheels. if you made this I would order it tomorrow! Patrick

LightBicycle 2018/04/10

Hi Patrick, We have RM29C19 with 24mm inner/30mm outer width, will this work for you? https://www.lightbicycle.com/U-shape-29er-rim-30mm-wide-hookless-MTB-bike-carbon-rims-tubeless-compatible.html Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

SB 2017/11/25

I have a 2017 cannondale Scalpel with the newer Lefty 2.0. just wondering which front hub you would recommend to build on the Flyweight rims? thanks

LightBicycle 2017/11/25

Hi sir, Do you want front wheel only or do you like complete wheelset? Then we can quote accordingly for you. Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

bobo 2017/07/14

will the XX1 freehub accept the XO 12 speed cassette ?

LightBicycle 2017/07/14

Hi Bobo, All Sram 9 or 10 speed cassettes are with Shimano freehub style. Only the Sram 11/12 speed cassettes use the Sram XD freehub driver. Sram has X01, XX1, X1 which all use the Sram XD freehub body. Do you mean Sram 12 speed cassettes? If yes, Sramxx1 is compatible with Sram 12 speed cassettes. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

brian 2017/06/09

Ship date & origin location for a set of 29" MTB wheels [29C06]?

LightBicycle 2017/06/09

Hello Brian, Thanks for your inquiry. We have 28H and 32H rims in stock. It will be fast to build wheels. What hubs do you like for wheelset? Then we can check on the lead time accordingly. All our wheelsets are built in China currently. We also have US building line currently. Which country are you from? Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Thomas 2017/06/06

Hello there - are you able to supply/build these wheels with the Hope single speed rear hub at all ? Thanks, Thomas

LightBicycle 2017/06/07

Hello Thomas, Thanks for your continued support. We can build the rear wheel with Hope pro4 single speed hub. Are the hubs with front 15*100mm/ rear 10*135mm single speed? Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

William 2017/03/29

Hi, I have a 2014 Cannondale team scalpel carbon with Enve XC 29er carbon rims. I shattered the rear rim and need a replacement rim. I am looking for the hoop only. I am looking at your 29c06 rim. Is this the closest rim you have to my current Enve? I only need the hoop to repair my wheel. Do you sell just the hoop and what is the cost?

LightBicycle 2017/03/30

Hello William, Thanks for your inquiry. Our RM29C06 rim is designed for XC riding and will work with your bike. It is okay to buy the rim only. Normally, you need to get some new spokes also, because the rim ERD is different, so the spoke length will be different. RM29C07 (27mm width): 360 /-15g, $165/pcs Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Ed 2017/02/16

I don't see an option to choose different hubs other than the Hopes. Is the price the same for DT350 and Hope hubs? 28 hole, 6 bolt IS, J bend, 15x100 FW, 135 QR RW, Shimano compatable 10 speed freehub. Thanks Ed

LightBicycle 2017/02/17

Hello Ed, Thanks for your inquiry. Hope and DT Swiss hubs are available. But there are not all axle or QR options on our website. Sorry for the inconvenience. Please find our quotations as below. All pricing in USD. -WM29C06 (with Hope pro4 hubs, Sapim cx-ray spokes): $867/pair -WM29C06 (with DT 350 hubs, Sapim cx-ray spokes): $767/pair Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

See all 62 customer reviews>>

Get in touch

Feel free to leave a comment if you have any questions or suggestions on our products or other issues.

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

We use cookies for a better experience. Learn more.

Customize

Your Cookie Preferences

We use cookies to improve your experience on this website. You may choose which types of cookies to allow and change your preferences at any time. Disabling cookies may impact your experience on this website. You can learn more by viewing our Cookie Policy.

Essential Cookies

Cookies required to enable basic website functionality.
Performance Cookies

Cookies used to understand how the website is being used.
Preference Cookies

Cookies that are used to enhance the functionality of the website.
Advertising Cookies

Cookies used to deliver advertising that is more relevant to your interests.

Aceept All Cookies

Save Preferences

Reject All Cookies

Save Preferences

Reject All Cookies

Accept All Cookies

Build Your Recon WHEELSET RM29C06

Overview

Specs

Tech

Warranty

In The Box

Rims

Hubs

Other Parts

Overview

Specs

Rims

Hubs

Other Parts

Tech

Warranty

In The Box

Gallery
