Build Your WHEELSET WR60T02 road bike wheel

All wheels are 100% customizable at Light Bicycle. If your preferred specs are not listed, feel free to contact us (sales@lightbicycle.com) with your special requirements described.


WHEELSET SPECS

RIMS

Our Pro series comes with a 5-year warranty (lifetime optional), while the non-pro with a 3-year warranty and crash replacement.

  • Use road bike wheel
  • Size 700C
  • Material full carbon Toray T700
  • Type tubular
  • Weight 1400g+/-10
  • Spoke Hole 20H/24H
  • Internal hole customized
  • Hub(recommend) DT Swiss 240S hubs
  • Spoke Sapim CX-RAY
  • Nipples Sapim Polyax secure lock
  • Outer width 23mm
  • Depth 60mm
  • Max weight limit 125kg
  • Max tyre pressure 160psi
  • Finish matte/glossy
  • Decal customized
  • Weave UD/3K/12K
  • Warranty 15 Months
  • Standard En Standard

Read more for actual road tire width

HUBS

We keep in stock the most popular axle sizes and colors of some well-liked hub models. If you want a special order, feel free to contact us (sales@lightbicycle.com).

  • Model

OTHER PARTS

Leave a note at checkout or contact us if you want spare spokes or nipples.

  • Spokes
  • Nipples

TECH

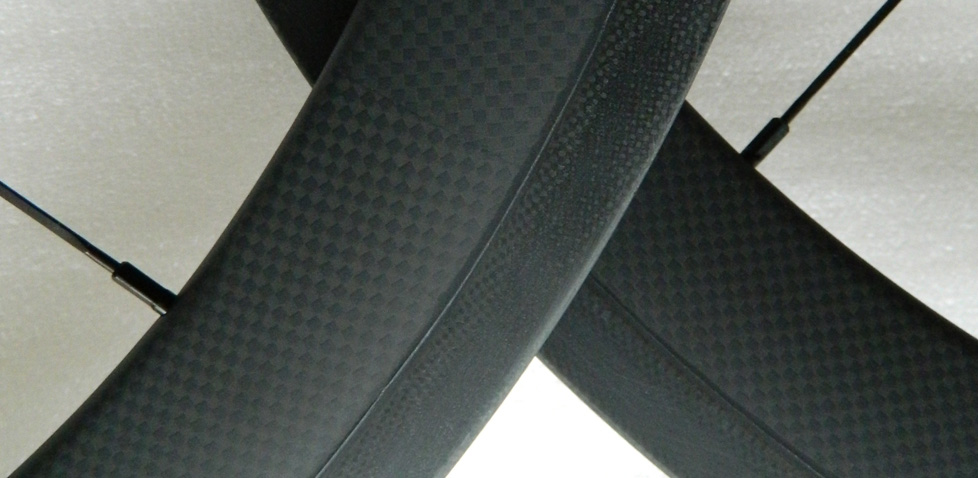

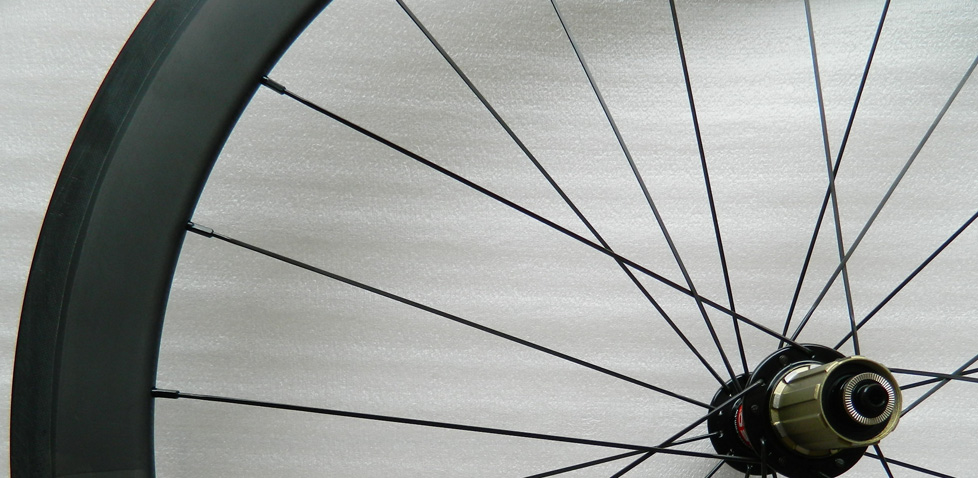

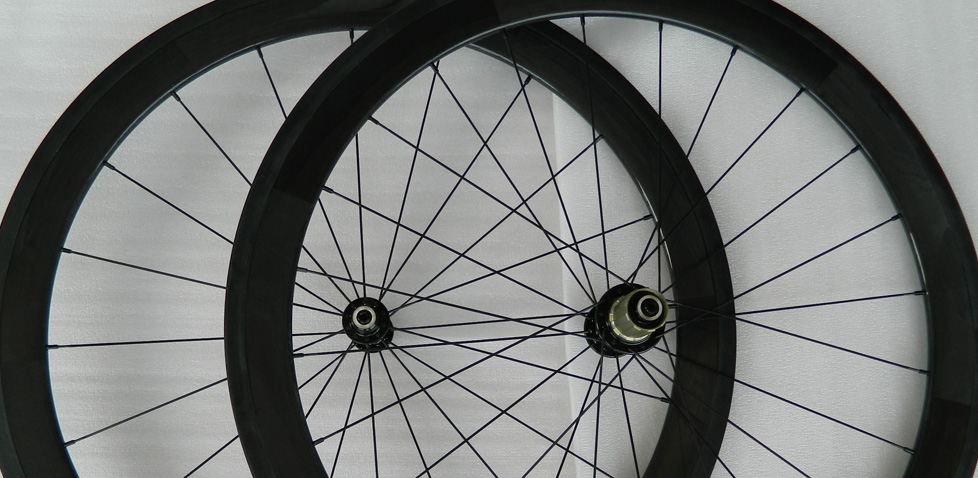

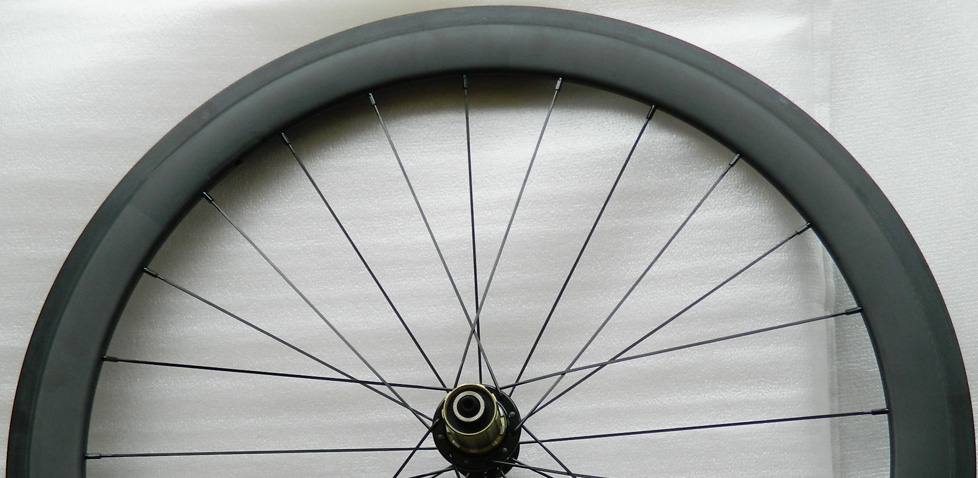

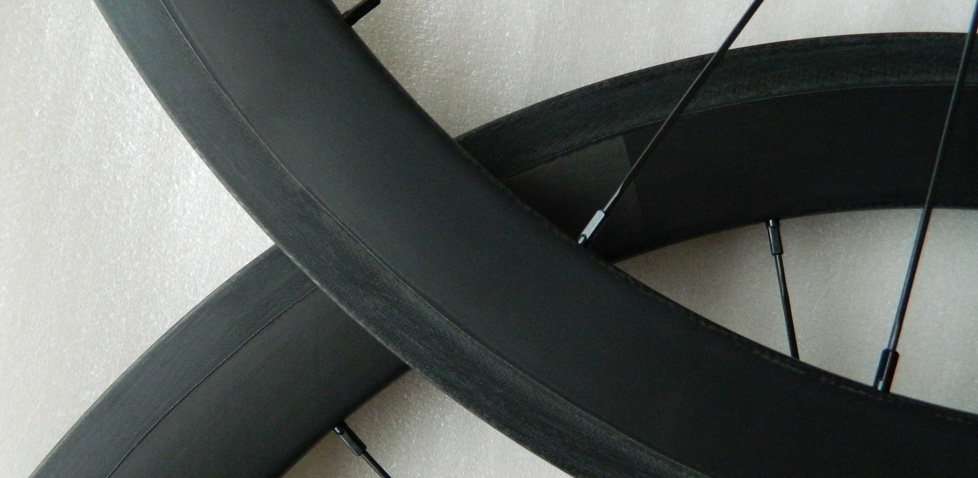

carbon 60mm wheels road bicycle 700c tubular,weight 1400g,price USD510/Pair


Please contact us if you need other hubs, spokes and graphic design for products.We can make according to customers requirement.


WARRANTY

For Non-Pro Series Rims: From the date of purchase, 3-year Standard Warranty.

For Pro Series Rims: From the date of purchase, 5-year Pro Warranty as standard and an upgraded optional lifetime Premium Warranty with minimum charge.

Crash Replacement: It is applicable with the same period as the warranty time range that you purchased for the rims with 10% /25% discount for Non-Pro series /Pro series.

carbon 60mm wheels road bicycle 700c tubular,weight 1400g,price USD510/Pair


Please contact us if you need other hubs, spokes and graphic design for products.We can make according to customers requirement.


  • Overview

    carbon 60mm wheels road bicycle 700c tubular,weight 1400g,price USD510/Pair


    Please contact us if you need other hubs, spokes and graphic design for products.We can make according to customers requirement.


  • Specs

  • Warranty

  • In The Box

Be the first to review this product and help riders of your style choose the most suited.

Write a review now >>

If you've got a longer story to tell and a few pictures won't cut it, check out our storytelling feature and consider sharing your story!

COMMENTS

L

Lars 2018/05/30

Hi. I’m wondering on how fast you can ship these wheels to Norway? -Lars


LightBicycle 2018/05/30

Hi Lars, Currently, we do not have 60mm deep tubular wheelset in stock. It takes around 15 days for manufacturing and another 7~10 days for delivery. Is it okay? Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

A

Aaron 2017/03/22

Hi, I am curious what would be the price for the rear wheel only in either 60mm or 88mm in fixed gear. Thank you.


LightBicycle 2017/03/24

Hi Sir, Thanks for your inquiry. It's OK to have a rear wheel. There is Novatec track rear hub(A566SBT). Please check the attached. Is it OK for you? Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

S

Simon 2015/09/10

Hi, I meet you at the Eurobike and your staff told me that dt swiss hubs are available for you know. So I am looking for a 60mm tubular Wheelset with dt swiss 240 hubs . Could you tell me the Prize for the wheel set and the shipping costs? Kind regards Simon


Light-Bicycle 2015/09/11

Hello Simon, Light-bicycle was nice to meet you at the Eruobike. Yes, the DT Swiss hubs are available now. We can build the 60mm tubular wheelset as following specs. -Rims: 23mm wide 60mm tubular rims, 20H/24H, 430 /-15g. Please find attached rim profile. Rim weave in 3k matte & UD matte are more popular. Please find below link. http://www.flickr.com/photos/light-bicycle/sets/72157631432948364/detail/ -Hubs: Black, DT Swiss 240S non disc hubs QR for front & rear. Do you prefer freehub with Shimano or Sram? -Spokes: Black, Pillar Aero X-TRA 1420 aero -Nipples: Pillar PT 734. Do you like black/blue/gold/green/red/silver? Thanks, Light-bicycle


M

Mark 2015/09/27

I would love to order the above specs with 240 disc hubs. I am on a cx bike, and the rear hub is 12/142. The front is a 12mm through axle. UD matte and black nipples. I'd like to order immediately. Price? Thank you? MB..


Light-Bicycle 2015/09/29

Hi Mark, Thanks for your inquiry. Currently, there is a new 25mm wide 55mm depth tubular U shape rim. This rim is strong and durable. I recommend you this rim. Please find the attached cross-section drawing of the rim. Is it OK for you? RRU55T02: USD160/pcs, 430 /-15g For the rims(UD matte), do you prefer 32 spoke hole count? You don't need the braking track on the rims, right? http://www.flickr.com/photos/light-bicycle/sets/72157631432948364/detail/ There are DT swiss 240, front 15mm thru axle and rear 142*12mm thru axle. Is it OK for you? Do you need the rear hub for Shimano 10s or Shimano 11s? For the spokes, it’s black bladed Pillar Aero PSR X-TRA 1420 (4.3g/pcs for 260mm) and black(alloy) nipples. Is it OK for you? Thanks, Light-bicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

A

Adam 2015/03/26

Hi Please can you let me know the price 60mm Tubular UD Matt with hubs for 11 speed Shimano. Also please advise the price for shipping to the UK. Thanks Adam


Light-Bicycle 2015/03/27

Hello Adam, Thanks for your inquiry. The 60mm tubular wheelset is USD520/pair. The shipping cost is USD78 for one wheelset to UK by EMS. If you like, we can build the wheels as following specs. -Rims: 23mm wide 60mm tubular rim, UD matte, 430 /-15g. Front 20H/ rear 24H? Please find attached rim cross-section drawing. -Hubs: We have two hubs below to fit for Shimano 11s. Which do you prefer? Novatec A291/F482 (320g/pair, qr skewers come together with hubs, black/red/white) Bitex RAF10/ RAR9 (258g/pair, no qr skewers included, black) -Spokes: Black, Pillar Aero X-TRA 1420 aero -Nipples: Pillar PT 734. Do you like black/blue/gold/green/red/silver? Thanks, Light-bicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

E

Ewen 2014/12/29

Hi, I would like to know if you make some wheels type 60mm with U shaped rims? Ewen


Light-Bicycle 2014/12/30

Hello Ewen, We will have U shape 55mm deep rim now, is it ok for you? Thanks, Light-bicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

J

John 2014/03/07

Hi, do you build a Tubular 60mm rim with no brake track at all for Velodrome wheels? thanks John.


Light-Bicycle 2014/03/10

Hello John, Thanks for your inquiry. Please find the attached cross-section drawing of the 23mm wide 60mm tubular rim. For the velodrame wheels, do you mean the wheels with tri-spoke rims? Thanks, Light-bicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

C

clem 2013/11/18

Bonjour Est-il possible de ne commander que la roue arri


Light-Bicycle 2013/11/19

Hello Clem, Thanks for your inquiry. It’s OK to order a rear wheel. Currently, we have 2 types 60mm tubular rims of 20.8mm outer width and 23mm outer width. The 23mm rim is much stronger and their weights are almost the same. You can take it into your consideration. Please find the attached cross-section drawings & some pictures. For the rim, do you prefer UD, 3k or 12k? Matte or glossy? 24H? http://www.flickr.com/photos/light-bicycle/sets/72157631432948364/detail/ For the hub, which one do you prefer? https://www.lightbicycle.com/the-more-detail-about-hubs-MTB-hub-and-road-hub.html#.Uoq7j8TDdy0 For the spokes, it’s black bladed Pillar Aero X-TRA 1420 (4.3g/pcs for 260mm) and black/red/blue/green/gold/silver pillar alloy light nipples. Which color do you prefer? If you’d like to order, I can create invoice accordingly(USA). Thanks, Light-bicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

C

clem 2013/11/18

Bonjour Est-il possible de ne commander que la roue arri


Light-Bicycle 2013/11/19

Hello Clem, Thanks for your inquiry. It’s OK to order a rear wheel. Currently, we have 2 types 60mm tubular rims of 20.8mm outer width and 23mm outer width. The 23mm rim is much stronger and their weights are almost the same. You can take it into your consideration. Please find the attached cross-section drawings & some pictures. For the rim, do you prefer UD, 3k or 12k? Matte or glossy? 24H? http://www.flickr.com/photos/light-bicycle/sets/72157631432948364/detail/ For the hub, which one do you prefer? https://www.lightbicycle.com/the-more-detail-about-hubs-MTB-hub-and-road-hub.html#.Uoq7j8TDdy0 For the spokes, it’s black bladed Pillar Aero X-TRA 1420 (4.3g/pcs for 260mm) and black/red/blue/green/gold/silver pillar alloy light nipples. Which color do you prefer? If you’d like to order, I can create invoice accordingly(USA). Thanks, Light-bicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

M

Martin 2013/08/03

Hello, Do you do these with a hub which would be compatible with a SRAM Apex groupset? Martin


Light-Bicycle 2013/08/05

Hello Martin, Thanks for your inquiry. Currently, we have 2 types 60mm tubular rims of 20.8mm outer width and 23mm outer width. The 23mm rim is much stronger and their weights are almost the same. You can take it into your consideration. Please find the attached cross-section drawings & some pictures. For the rims, do you prefer UD, 3K or 12K? Matte or glossy? Front 20H/rear 24H? http://www.flickr.com/photos/light-bicycle/sets/72157631432948364/detail/ We have some hubs are for the SRAM/ Shimano. Which pair do you like? https://www.lightbicycle.com/the-more-detail-about-hubs-MTB-hub-and-road-hub.html For the spokes, it’s black bladed pillar psr x-tra 1420 aero (4.3g/pcs for 260mm) and black/red/blue/green/gold pillar alloy light nipples. Which color do you prefer? Cheers, LB


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

T

Tj 2012/09/06

Are the wheel graphics designed curved to fit the wheel and do we provide the font type, etc.?


Support 2012/09/06

Hello sir, The graphic design should be design to fit the size of rim surface. It will be great if you can help to provide the font type.If not, we can help to design for you, and mail you for confirmation. Thanks, Light-bicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.
