carbon rim carbon wheels carbon frame carbon handlebar
Size : ALL 650B 26er 29er
Category : ALL XC AM DH

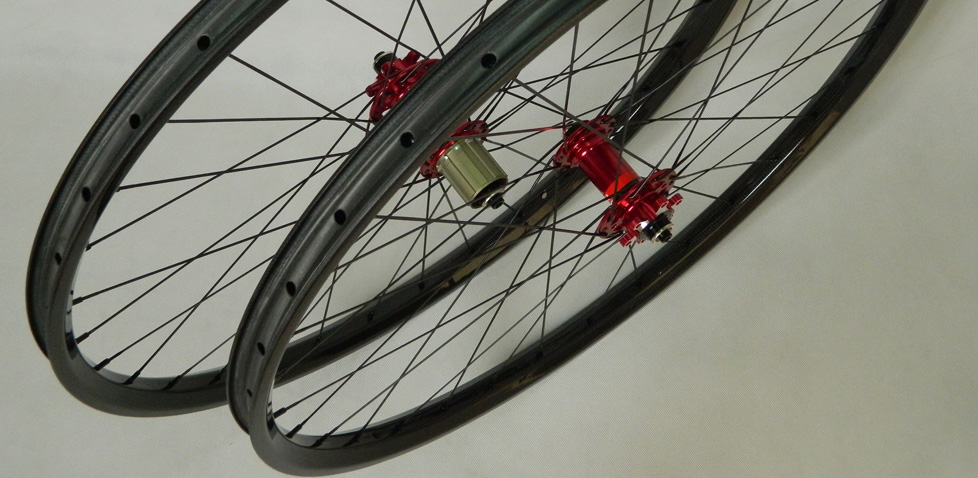

carbon MTB 650B wheel mountain bike 27.5 wheels

MTB 650b wheels

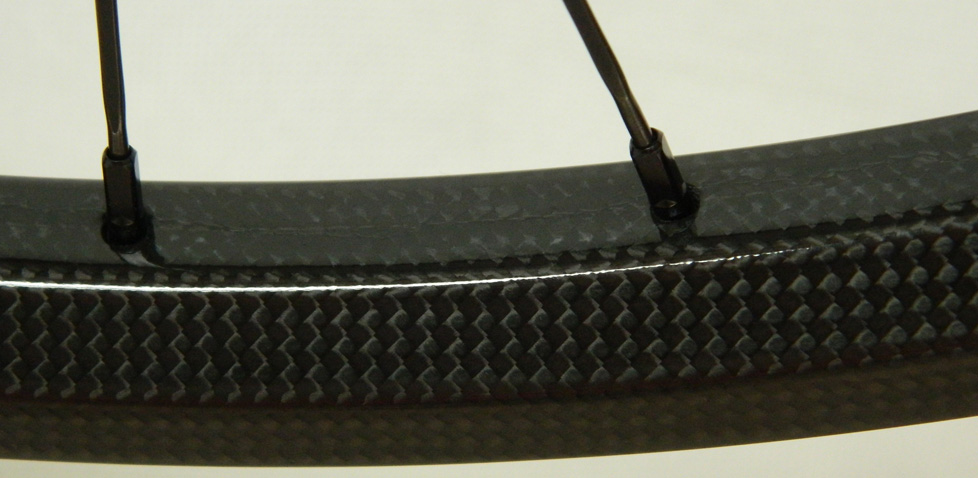

mountain bike 27.5 wheels

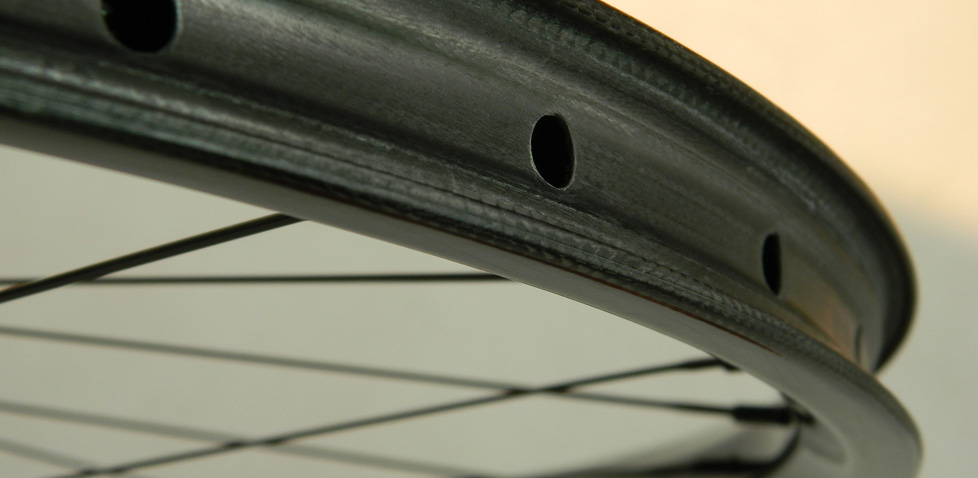

carbon 650b wheels
650B wheel
27.5 wheel

Price(USD/Pair)

$564.00

Use

mountain bike wheels

Size

650B/27.5er

Material

full carbon Toray T700

Type

beadless / hook less clincher

Weight

1455g+/-25g(For 32holes)

Tubeless

compatible

Spoke Hole

28H or 32H

Hub(recommend)

Nipples

Pillar PT 734

Inner width

24mm

Outer width

30mm

Depth

20mm

Max weight limit

120kg

Max tyre pressure

70psi

Cycling tyre pressure

40psi(recommend MAX)

Finish

matte/glossy

Weave

Warranty

1 Year

Standard

En Standard

Lead time

10 to 13 days

Item No

WM650BC02


Technology improve of WM650BC02

* Beadless: hookless rim wall is more smooth and straight, the tire will touch rim walls fully and mounted perfectly, allowing to run lower tire pressure without risk of air loss or pinch flats.hookless carbon rim walls is a way to improve impact resistance, so it is more durable and much stronger.

* There are hand-built by our carbon wheels builder,they have much experience in building carbon wheelsets, to make sure all wheels roundness and precise.

* Manufactured by new manufacturing process with one-piece-layer, to make carbon fiber layer continuous and rims strongest. We have the big layer-cutting machine to cut one-piece layer, for other factories, their cutting machine is not big enough .Read more about: Technology Improve Of Light-Bicycle Carbon Rims

* Remove the curing carbon ring, improve the spoke hole tension and make the rim weight lighter.

* Without any square holes on rims bed, for other factories, they drilled this big square hole to make air blades go out after molding. But we have our new skill, the air blades can come out without any big square hole. This improves the rim strength strongly.

* Superior carbon fiber material: Toray T700, a light –weight & durable carbon fiber design constructure makes rims ultimate light & super-stiff .


Update: We already updated the clincher hooked rim to clincher hookless rim since October 31, 2014.
Most of rims specifications are the same between hooked and hookless rims. But there are slightly different, especially for the ERD and the inner width.


Learn more about the detail about hubs ( MTB hub and road hub ).

Please contact us if you need other hubs, spokes and graphic design for products.We can make according to customers requirement.

Customer Reviews

2014-11-12

Henry :

Looking for your 650b wheel with the hookless 30mm external matte UD rim built on Blue Hope Pro 2 EVO 15mm thou axial front, Blue Hope Pro 2 EVO 12*142 rear- both 28 hole; Pillar Aero x 1420 spokes with blue nipples. This is for Shimano. I weight approx 155 pounds and ride mostly XC/trail and some all mountain. Is this setup ok? Cost? I already have the thru axels but what is the 'adaptor' referred to on your hub page?

2014-11-14

Light-Bicycle :

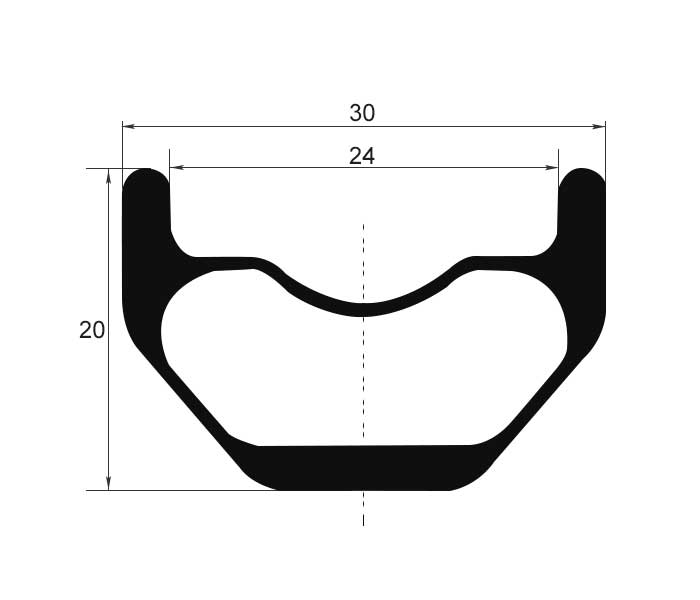

Hello Henry, Thanks for your inquiry. We can build the wheelset as following specs for you. Rims: If you ride XC as well as trail, we recommend hookless 35mm wide 650B rims. It is much stronger. Do you like it? Please find attached rims cross-section drawings. RM650BC02 (30mm wide 650B XC rim) hookless: 370 /-15g RM650BC05 (35mm wide 650B XC/AM rim) hookless: 400 /-15g Which do you prefer? It is ok to do UD matte & 28H. Hubs: Blue, Hope pro2 evo (24T) front 15mm thru axle/ rear 12*142mm thru axle for Shimano 10s. Please note that we only have 28H for hope hubs 24T in stock. Is that ok for you? For adaptor, we do not have it here. If you like the hubs can be changed to different axle size. You have to buy the kit separately. Spokes: Black, Pillar Aero X-TRA 1420 aero Nipples: Blue, Pillar PT 734 Thanks, Light-bicycle

Reply The Review
Name
Mail
Submit
2014-09-09

Jill :

Looking to build as light as possible 27.5 wheelset for XC with 110 lb rider. I see you mention you have the 30mm in hook or hookless, I do not see these on the wheelset page (only see the 35mm which weighs 400g). Is there a 30mm hookless 27.5 available and how does the weight compare to the hook XC 27.5 rim?

2014-09-11

Light-Bicycle :

Hello Jill, Thanks for your inquiry. There are 3 kinds of 650B rims. They are all available currently. 1) 27mm wide 650b hookless rim:USD163/pcs, 340 /-15g 2) 30mm wide 650b hooked rim: USD163/pcs, 370 /-15g 2) 30mm wide 650b hookless rim: USD163/pcs, 370 /-15g The 27mm wide 650B hookless rim(newest) is specially designed for XC and lighter. I recommend this kind of rim. Please find the attached cross-section drawings of rims. Is it OK for you? Thanks, Light-bicycle

2014-09-18

Greg :

I see choice #1 (27mm wide/650b) shown for rims only, but I do not see it shown to buy complete wheels.

2014-09-18

Light-Bicycle :

Hello Greg, hanks for your inquiry. Please find the attached cross-section drawing of the 27mm wide 650b hookless XC rim. For the rims, do you prefer UD, 3k or 12k? Matte or glossy? 32H? http://www.flickr.com/photos/light-bicycle/sets/72157631432948364/detail/ Which hub do you prefer? Hope pro 2 evo hubs or Novatec hubs? What axle size do you need for the hubs? Do you need the rear hub for Shimano 10s or SRAM XX1? Thanks, Light-bicycle

Reply The Review
Name
Mail
Submit
2014-08-22

Junior :

Hello What's the weight on these set up? Its for a carbon MTB 650B wheel mountain bike 27.5 wheels Matte: finish UD :Weave 15mm Pro2 front red hub 32H 142x12 Pro2 (10 speed shimano) rear red hub 32H Pillar Aero spokes Red nipples VS Matte: finish UD :Weave 15mm Novatec front red hub 32H 142x12 (10 speed shimano) Novatec rear red hub 32H Pillar Aero spokes Red nipples Also can you add more fiber to this wheelset? If so how much? Thanks!

2014-08-22

Light-Bicycle :

Hello Junior, Thanks for your inquiry. Currently, there are 2 kinds of 30mm wide 650b rims(370 /-15g). One is with bead-hook and the other one is with hookless. For our hookless rim & hooked rims, they are both OK to hold the tire. However, compared with hooked rim, hookless is more durable. The tire will touch rim walls fully and be mounted perfectly. Also there is zero issue of holding tires for hook-less rims. Please find the attached cross-section drawings of rims. It's OK to manufacture the 30mm wide rims with reinforced version(400 /-15g). Do you ride for all mountain/Enduro? If yes, I still recommend you the 35mm wide 650B hookless rim. Thanks, Light-bicycle

Reply The Review
Name
Mail
Submit
2014-07-27

Rhys :

Hi, interested in purchasing 650b wheels. * do you have 15mm thru axle front, 142 x 12 rear QR hubs available? * I will be using SRAM XX1 drive train, is XD driver available already for your hubs? * 28h front, 32h rear spokes count, possible? Is it stiff enough for a 65 kilos rider? * Do you recommend the hookless rims? I will be using Schwalbe Rocket Ron tires, would there be no problems mounting the tires? * What is the approximate weight ? * Do you ship here to the Philippines?

2014-07-28

Light-Bicycle :

Hello Rhys, Thanks for your inquiry. Currently, there are 2 kinds of 30mm wide 650B rims. One is with bead-hook and the other one is with hookless. For our hookless rim & hooked rims, they are both OK to hold the tire. However, compared with hooked rim, hookless is more durable. The tire will touch rim walls fully and be mounted perfectly. Also there is zero issue of holding tires for hook-less rims. We have sold lots of hookless rims to customers. Some big brands like Specialized & Enve also use hookless for rims. I recommend you the hookless rim. Please find the attached cross-section drawing of the rims. The max weight limit of wheels is 120kg. So, it's OK for your weight. For the rims, do you prefer UD, 3k or 12k? Matte or glossy? http://www.flickr.com/photos/light-bicycle/sets/72157631432948364/detail/ There are Novatec D881-15mm thru axle and D882-142*12mm thru axle for SRAM XX1. This pair hubs are a little heavier(600g/pair), but strong. The XX1 cassette is mounted on rear hub. We also have Hope pro 2 evo hubs. Which one do you prefer? The hubs are just with 32H, no 28H. Thanks, Light-bicycle

Reply The Review
Name
Mail
Submit
2014-07-24

Mathew :

2014-07-16 Ward : I'm looking for your 650b wheel with the hookless 35mm external- 30mm internal width 4k 400 gram rim built on Black Hope Pro 2 EVO 15mm thou axial front, quick release 144mm rear- both 32 hole with DT Swiss spokes. I only see the narrower rims with the wheels built.

2014-07-24

Light-Bicycle :

Hello Matt, Thanks for your inquiry. Please find the attached cross-section drawing of the 35mm wide 650B hookless AM rim. The rim weight is 400 /-15g per rim. There is not 4k. I think you refer to 3k, right? For the rims(32H), do you prefer matte or glossy finish? http://www.flickr.com/photos/light-bicycle/sets/72157631432948364/detail/ There is black Hope pro 2 evo 15mm thru axle hub. For the rear hub, do you prefer 135mm standard QR or 12*142mm(not 144mm) thru axle? Do you need the rear hub for Shimano 10s or SRAM XX1? For the spokes, it’s only black bladed Pillar Aero X-TRA 1420 (no DT spoke) and black/red/blue/green/gold(alloy) and silver(brass) nipples. Thanks, Light-bicycle

Reply The Review
Name
Mail
Submit
2014-07-17

Ward :

I'm looking for your 650b wheel with the hookless 35mm external- 30mm internal width matte gloss 400 gram rim built on Blue Hope Pro 2 EVO 15mm thou axial front, quick release 135mm rear- both 32 hole with DT Swiss spokes. I only see the narrower rims with the wheels built.

2014-07-18

Light-Bicycle :

Hello Ward, Please find the attached cross-section drawing of the 35mm wide 650B hookless AM rim(400 /-15g). For the rims(32H), do you prefer UD, 3k or 12k? Matte or glossy? http://www.flickr.com/photos/light-bicycle/sets/72157631432948364/detail/ There are Hope pro 2 evo 15mm thru axle and 135mm standard QR(40T). Do you need the rear hub for Shimano 10s or SRAM XX1? Currently, the blue hub is not available. The colors are black, red, sliver and gunsmoke. Is it OK for you? For the spokes, it’s just black bladed Pillar Aero X-TRA 1420 (no DT spokes) and black/red/blue/green/gold(alloy) and silver(brass) nipples. Which color do you prefer? Thanks, Light-bicycle

Reply The Review
Name
Mail
Submit
2014-07-02

ckng :

Hi there, I'm interested in 650b carbon wheels and please advise if alipay accepted as payment? UD matte, 32H front 15mm red Hope hub , 32H rear 12*142mm thru axle SRAM xx1 red Hope hub Delivery to Selangor, Malaysia. thanks and hear from you soon.

2014-07-03

Light-Bicycle :

Hello sir, hanks for your inquiry. Do you ride AM? Then I can recommend you the 35mm wide 650B rim. This rim is specially designed for AM and strong. Please find the attached cross-section drawings of rims. http://www.light-bicycle.com/Hookless-carbon-650B-mtb-35mm-wide-AM-27-5-rims-tubeless-compatible.html#.U7TFR_mSyWw It's OK to have the rims with UD matte and 32H. http://www.flickr.com/photos/light-bicycle/sets/72157631432948364/detail/ There are red Hope pro 2 evo 15mm thru axle and 142*12mm thru axle for SRAM XX1(40T). Thanks, Light-bicycle

Reply The Review
Name
Mail
Submit
2014-06-20

davide :

Hello, is it possible to order only a front wheel? I do not need the rear. thank you D

2014-06-23

Light-Bicycle :

Hello Davide, Thanks for your inquiry. Please find the attached cross-section drawing of the 30mm wide 650B rim. It's OK to have just a front wheel. For the rim, do you prefer UD, 3k or 12k? Matte or glossy? 32H? http://www.flickr.com/photos/light-bicycle/sets/72157631432948364/detail/ What axle size do you prefer? Do you like Hope pro 2 evo hub or Novatec hub? Thanks, Light-bicycle

Reply The Review
Name
Mail
Submit
2014-06-06

Chris :

Hello, will you have hook-less 30mm and 24-25mm inside width rims available soon? Regards, Chris.

2014-06-08

Light-Bicycle :

Hello Chris, Thanks for your inquiry. We might manufacture the 30mm wide hookless 650B rim in the future. But it will take around several months. Currently, there are just 2 kinds of 650B rims here. 1) 30mm wide 650B bead-hook rim: USD163/pcs 370 /-15g 2) 35mm wide 650B hookless AM rim: USD175/pcs 400 /-15g Please find the attached cross-section drawings of the rims. Is it OK for you? For the rims, do you prefer UD, 3k or 12k? Matte or glossy? 32H? http://www.flickr.com/photos/light-bicycle/sets/72157631432948364/detail/ What axle size do you prefer? Novatec or Hope pro 2 evo hubs? http://www.light-bicycle.com/the-more-detail-about-hubs-MTB-hub-and-road-hub.html#.U5JssvmSyWw For the spokes, it’s black bladed Pillar Aero X-TRA 1420 (4.3g/pcs for 260mm) and black/red/blue/green/gold/silver pillar alloy light nipples. Which color do you prefer? Thanks, Light-bicycle

Reply The Review
Name
Mail
Submit
Name
Mail
Submit

Photo Sharing

From Australia

Light-Bicycle : Hello Rick, The wheelset that glen bought is WM650BC02 wheelset, UD, matte

rick : Hey glen, how are you getting on with this setup? I'm about to do the

From USA

Neal : PS: my daughter won USA Downhill Nationals yesterday on LB' wheels. H

From Japan

yasu : Hi Tom This frame is for 2013 SCOTT team. However, you will be able to buy

Tom : Hi Yasu, is this frame for sale? Cheers T.

From USA

PsyGuy71 : Thank you! On the front fork (Fox Talas 32 R) there is ample clearance of

ales : Hi I really like your bike .I have GT Marathon carbon team.Was that a probl

From USA

PsyGuy71 : Thank you! On the front fork (Fox Talas 32 R) there is ample clearance of

ales : Hi I really like your bike .I have GT Marathon carbon team.Was that a probl

From USA

ALFONSO : Since January 2013.Ecxellent
