Build Your Drift RIM RSNOW02 Sand, Snow, Single Track

All wheels are 100% customizable at Light Bicycle. If your preferred specs are not listed, feel free to contact us (sales@lightbicycle.com) with your special requirements described.

Global Shop

NA Shop

EU Shop

AU Shop

Ships worldwide. See what's on sale>>

Drain Hole This is a required option.

With Drain Holes

Center Channel Hole This is a required option.

No Access Holes

Version This is a required option.

Front Flyweight / Rear Standard

Weave This is a required option.

Braided UD

DEFAULT SETTINGS

RIMS

Matte, UD, hook, blank (no decal), 24h

Paintless, UD, blank (no decal), 28h, with access holes

Standard, paintless, hook, blank (no decal), 24h, with drain holes, without access holes

HUBS

DT Swiss 350 Straightpull Centerlock Shimano Road 11s 36t

12/100mm (F) & 12/142mm (R)

DT Swiss 350 Straightpull Centerlock Sram XD 18t

15/110mm (F) & 12/148mm (R) boost

DT Swiss 350 straightpull centerlock Shimano Road 11s 36t

12*100mm (F) & 12*142mm (R)

SPOKES & NIPPLES

Sapim CX Sprint-rear drive side / CX Ray-other sides

Sapim aluminum black external

Sapim CX Ray & Sapim aluminum black external

Sapim CX Sprint-rear drive side / CX Ray-other sides

Sapim aluminum black external

ACCESSORIES

2 valves & 1 spare 18t ratchet

2 valves & 2 adapters (centerlock to 6-bolt)

2 valves & 1 spare 18t ratchet

Note: the wheelset price includes the warehouse transfer cost ($80).

Piece Weight: g+/-

Subtotal: USD +

Lead time: typically ships in 2 days

ADD TO CART You missed some options.

We do not stock this item at the European warehouse. See what we stock currently.

You can order this product from our Global or North American warehouse.

Please fill out this form with your special requests if you want to customize it. We will get back to you in 24hrs via email.

Center Channel Hole This is a required option.

No Access Holes

DEFAULT SETTINGS

RIMS

Matte, UD, hook, blank (no decal), 24h, with drain holes

Paintless, UD, blank (no decal), 28h, with access holes

HUBS

DT Swiss 350 Straightpull Centerlock Shimano Road 11s 36t

12*100mm (F) & 12*142mm (R)

DT Swiss 350 Straightpull Centerlock Sram XD 18t

15/110mm (F) & 12/148mm (R) boost

SPOKES & NIPPLES

Sapim CX Sprint-rear drive side / CX Ray-other sides

Sapim aluminum black external

Sapim CX Ray & Sapim aluminum black external

ACCESSORIES

2 valves & 1 spare 18T ratchet

2 valves & 2 adapters (centerlock to 6-bolt)

Note: the wheelset price includes the warehouse transfer cost ($80).

Piece Weight: g+/-

Subtotal: USD + (discount price)

Lead time: typically ships in 3 business days

ADD TO CART You missed some options.

We do not stock this item at the Australian shop. See what's available.

You can order this product from our Global / NA shops.

Please fill out this form if you are looking for a custom wheelset.

We'll get back to you soon to study the customization requests via email.

Our apologies, we do not offer this item at the Global warehouse.

Please order from other warehouses. Feel free to contact us (sales@lightbicycle.com) if you want to customize. We’ll get back to you in 24hrs.

Our apologies, we do not stock this item at the North American warehouse. Check this link to see what items we stock, or send us an email to discuss.

Our Global warehouse can make any rim model and ship worldwide. Please fill out this form with your special requests if you want custom rims/wheelset. We will get back to you via email to discuss in 24hrs.

Shopping Style

Options Features	Quick Buy	Full Custom
Options Features	Inventory	Parts in stock (Assembled upon order)	Manufactured upon order
Customization	Least customizable	100% Customizable
Lead Time	≤ 3 days	4 weeks typically
Availability	Limited models	All models
Shipping	Worldwide	Worldwide

Quick Buy (In Stock)

Full Custom (Made to Order)

DEFAULT SETTINGS

Rims

Hook, matte, UD, with drain holes

Hook, matte, UD, with access holes, with drain holes

Standard, hook, paintless, UD, 5-year warranty, with access holes, with drain holes

Front Flyweight / Rear Standard, paintless, UD, 5-year warranty, no drain holes

Paintless, UD, 5-year warranty, no drain holes

Grooved graphene surface, hook, matte, UD, with access holes, with drain holes

Grooved graphene surface, hook, matte, UD, no access holes, with drain holes

Matte UD, 32H, Centered (Staggered)

Hubs

Hope Pro 4 Fatsno J-bend 6-bolt

15/150mm (F) & 12/197mm (R) Sram XD

Straightpull centerlock black 24H

12/100mm & 12/142mm

Shimano Road 11S

DT Swiss straightpull / Bitex j-bend, centerlock, 28H

J-bend, DT Swiss 6-bolt / Bitex centerlock, 32H

15/110mm boost & 12/148mm boost Sram XD

DT Swiss straightpull / Bitex j-bend, black, 20H front / 24H rear

100mm QR & 130mm QR Shimano Road 11S

Spokes

Sapim CX Ray black

Sapim D-Light

Accessories

No decals/valves/tape

No decals/valves/tape/pads

No decals/valves

Piece Weight: g+/-

Subtotal: USD +

Lead time:

ADD TO CART

PREVIOUS NEXT

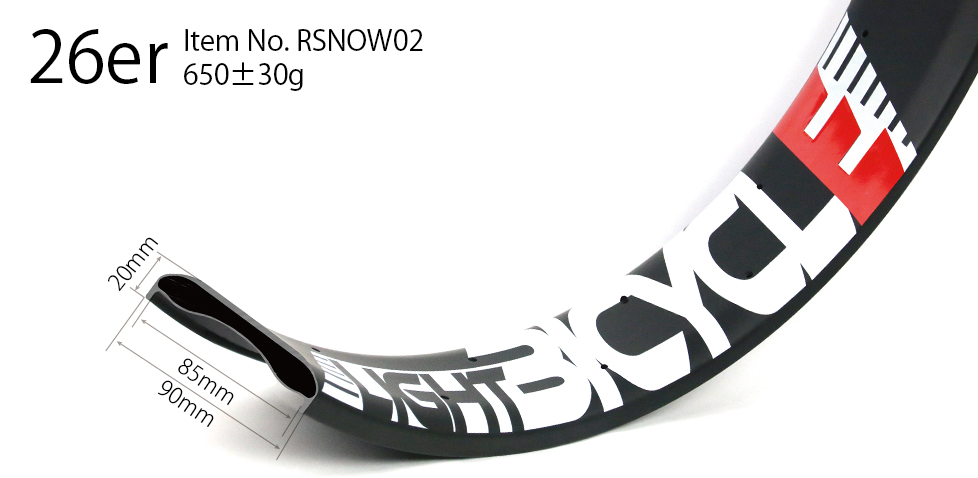

RIM SPECS

Size 26er
Use Sand, Snow, Single Track
Type Hookless
Tubeless Ready
Inner/Outer Width 85mm/90mm
Depth 20mm
ERD 535mm (not including nipple head dimension)
Weight 650+/-30g
Offset 0mm (symmetric)
Drilling Offset ±19.5mm
Weight Limit 120kg
Spoke Hole Angle ±3°
Spoke Tension ≤135kgf recommended
Tyre Pressure ≤25psi recommended
Tire 4.3" ~ 5.0" recommended

Our widest Fatbike rims feature a massive 85mm width, fitting the largest tires on the market. The low profile 22mm height keeps the weight down to a minimum while still retaining excellent side stiffness.

A wide shelf with sloped bead seats aids tubeless tire setup and retention, and you can expect to shave 1.5 pounds off a similar alloy wheelset in rim weight alone.

Rims

Our Pro series comes with a 5-year warranty (lifetime optional), while the non-pro with a 3-year warranty and crash replacement.)

Size: 26er
Use: Sand, Snow, Single Track
Type: Hookless
Tubeless: Ready
Inner/Outer Width: 85mm/90mm
Depth: 20mm
ERD: 535mm (not including nipple head dimension)
Weight: 650+/-30g
Offset: 0mm (symmetric)
Drilling Offset: ±19.5mm
Weight Limit: 120kg
Spoke Hole Angle: ±3°
Spoke Tension: ≤135kgf recommended
Tyre Pressure: ≤25psi recommended
Tire: 4.3" ~ 5.0" recommended

Full Custom

Get in touch with us (sales@lightbicycle.com) to discuss in detail your customization request.

Hole: Hole Count, Spacing, Pattern, Drilling Angle, Diameter
Finish: Matte, Glossy, Satin, Colored Paint
Weave: UD, 3K, 3K Twill (Vertical/Horizontal), 12K, 12K Twill (Vertical/Horizontal), Braided UD, Hexa-Comb
Brake Track: UD, 3K, 3K Twill (Vertical/Horizontal), 12K, 12K Twill (Vertical/Horizontal), Braided UD, Hexa-Comb
Weight Style: Standard, Flyweight, Ultra-Light, Heavy Duty, HD+

Explore more Full Custom services

Overview

Our widest Fatbike rims feature a massive 85mm width, fitting the largest tires on the market. The low profile 22mm height keeps the weight down to a minimum while still retaining excellent side stiffness.

A wide shelf with sloped bead seats aids tubeless tire setup and retention, and you can expect to shave 1.5 pounds off a similar alloy wheelset in rim weight alone.
Specs
Rims

Size: 26er

Use: Sand, Snow, Single Track

Type: Hookless

Tubeless: Ready

Inner/Outer Width: 85mm/90mm

Depth: 20mm

ERD: 535mm (not including nipple head dimension)

Weight: 650+/-30g

Offset: 0mm (symmetric)

Drilling Offset: ±19.5mm

Weight Limit: 120kg

Spoke Hole Angle: ±3°

Spoke Tension: ≤135kgf recommended

Tyre Pressure: ≤25psi recommended

Tire: 4.3" ~ 5.0" recommended

Full Custom

Get in touch with us (sales@lightbicycle.com) to discuss in detail your customization request.

Hole: Hole Count, Spacing, Pattern, Drilling Angle, Diameter

Finish: Matte, Glossy, Satin, Colored Paint

Weave: UD, 3K, 3K Twill (Vertical/Horizontal), 12K, 12K Twill (Vertical/Horizontal), Braided UD, Hexa-Comb

Brake Track: UD, 3K, 3K Twill (Vertical/Horizontal), 12K, 12K Twill (Vertical/Horizontal), Braided UD, Hexa-Comb

Weight Style: Standard, Flyweight, Ultra-Light, Heavy Duty, HD+

Explore more Full Custom services
Warranty

For Non-Pro Series Rims: From the date of purchase, 3-year Standard Warranty.

For Pro Series Rims: From the date of purchase, 5-year Pro Warranty as standard and an upgraded optional lifetime Premium Warranty with minimum charge.

Crash Replacement: It is applicable with the same period as the warranty time range that you purchased for the rims with 10% /25% discount for Non-Pro series /Pro series.

Learn More >>
In The Box

Please carefully inspect your package when unboxing and get in touch with us immediately if the package is damaged or anything is missing.

Together we can make this planet better. Join our sustainability program to reduce paper waste with the use of digital manuals.

Download user guides >>

Gallery

Add a comment...

USA

Ray : My Specialized Fat Boy Expert with Light-Bicycle carbon rims. Set up tubeless, of course.

USA

View More Reviews >>

COMMENTS

Aaron 2018/02/02

Looking for a complete wheelset for my fat bike. Specs below, what is the quote? RSNOW02 32h Dt Swiss 350 hubs 54t Dt swiss spokes black brass nipples 15x150/12x197 Thank You

LightBicycle 2018/02/02

Hi Aaron, We can the wheelset price to your email. Please check. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

mervin 2016/08/16

How much to ship 2 rims to Singapore?

Light-Bicycle 2016/08/17

Hello Mervin, Thanks for your inquiry. The shipping cost is $41.50 USD for two fat bike rims to Singapore by EMS. Thanks, Light Bicycle

Ray 2017/12/31

@Mervin. Have you ordered already? I'm new to fatbikes and researching on building my first... just have the frame and fork. :-) Did you end up ordering? Would be helpful to compare notes...

LightBicycle 2018/01/03

Hello Ray, Thanks for your inquiry. The customer Mervin had ordered a pair of 85mm wide fat bike rims and some mtb rims. Rim profile attached for your reference. Most of our customers choose this rim and give us nice feedback. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Jared 2016/11/22

What are the weights of the different wheelset options. I'm looking for a 150*15 front axle and 197*12 rear with Shimano drive and Alloy nipples. I'm undecided on hub or spoke option until the weights are posted. Thank you.

LightBicycle 2016/11/23

Hello Jared, The weight will be different with different hubs. Which hubs and spokes do you like? Then we can get the wheelset weight accordingly for you. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

John 2016/05/24

Hi, what is the price for a rim only (not made up into a wheel) for: - 90mm width - 32H offset - UD weave - delivered to UK? And what is the price if I ordered two rims instead of one? Thanks - JR

Light-Bicycle 2016/05/25

Hello John, Thanks for your inquiry. RSNOW02 (90mm width fat bike rim): 650 /-30g, $263/pcs Rims in UD, 32H and offset are fine. Is that UD matte? Shipping with EMS for one rim is $50, and it is $64 for two rims. All pricing in USD. You can save much shipping cost if order two rims. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Martin 2016/03/17

Hello there. Can you please quote me for the following: Hope fatsno front 135mm 15mm thru axle front hub, 90mm carbon rim, black decals, centred with silver spokes. Hope fatsno rear 170mm qr axle, 90mm carbon rim, black decals, centred with silver spokes. I would require them shipped to the UK. Thanks very much, Martin

Light-Bicycle 2016/03/18

Hello Martin, Thanks for your inquiry. The 90mm wide 26er fat bike wheelset with following specs is USD1039/pair -Rims: RSNOW02, centered drilling, 32H, 650 /-30g. UD matte? -Hubs: Black, Hope fatsno front 15*135mm thru axle/ rear 170mm QR. With freehub Shimano or Sram? -Spokes: Only black spokes are available. Does that work for you? -Nipples: Silver, brass Please find attached light-bicycle decal in black. Does that work for you? Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Boris 2016/01/31

please give a quote for the following wheelset: - 90 mm double wall carbon rims center drilled, presta valve, UD matte finish no decals - 150 mm thru axle DT Swiss 350 Big Ride front hub - 197 mm thru axle DT Swiss 350 Big Ride rear hub shimano/sram 9/10 freehub - black DT Swiss Competition spokes - black DT Swiss Pro Lock nipples shipping to Russia what actual weight will be?

Light-Bicycle 2016/02/01

Hello Boris, Thanks for your inquiry. Currently, only Hope fatsno hubs are available, not DT Swiss 350 Big Ride hubs. Does that work for you? If so, we can build the 26er fat bike wheels as following specs. -Rims: RSNOW02, 90mm width 650 /-30g, UD matte, 32H, center drilled, no decals, presta valve. -Hubs: Hope fatsno front 15*150mm TA/ rear 197mm TA for Shimano 10s -Spokes: Black, DT competition round -Nipples: Black. Alloy or brass? Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

David 2016/01/23

If you plan to make a 650b (27.5") fat bike rim I'd suggest making it 100 mm wide rather than 80 mm. Wider seems to be the trend. Note the HED B.F.D 26x100 mm rims. I have a Trek Farley 9.8 w/ 27.5x80 rims. I'd be very interested in going 100 mm wide to give the tire more volume. Please email me if a 650b x 100 mm becomes available.

Light-Bicycle 2016/01/25

Hello David, Thank you so much for your suggestion. We will discuss with our engineers, and will let you know once we have a plan to manufacture the 650B 100mm width fat bike rim. It would be best to keep in touch with us by signing up for our newsletter for the announcement. The newsletter sign up is located at the bottom left of our website. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Bob 2015/06/25

Are you guys making any 27.5" x 80mm carbon rims in the future?

Light-Bicycle 2015/06/26

Hello Bob, Thanks for your inquiry. Currently, we only have 50mm wide 650B rims. We will discuss with our engineers and will let you know once we have a plan to make the 80mm wide 650B rims. Is that popular now? Thanks, Light-bicycle

Bob 2015/10/13

Yes, Trek is making their 2 high end fat bikes (Farley 9.8 & 9.6) with 27.5' x 80mm rims.

Light-Bicycle 2015/10/14

Hello Bob, Thanks for your contact. Are you interested 27.5inch with 80mm width? Or 26er? Single-wall or double-wall? If yes, do you have the rim profile? Currently, we also have some plans to open new fat bike rim mold. Any suggestion will be appreciated. Thanks, Light-bicycle

Jeff 2016/01/11

Where did you guys end up with this? I'd love a set of 80mm 27.5 rims.

Light-Bicycle 2016/01/12

Hello Jeff, Thanks for your inquiry. Currently, only the 50m wide 650B plus rim is available. We will discuss with our engineers and will let you know once we have a plan to make the 80mm wide 650B rims. If you need rims urgently, we’d like to recommend the 650 plus rim which is lighter and more nimble than a fat bike. Also, it is more capable in sand or snow, and perfectly suited to 2.8-3.3" tires. Please find attached rim profile. RM650BC14 (50mm width plus): 450 /-15g, USD200/pcs Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Chris 2015/09/26

am interested in the following wheelset... - 90 mm double wall carbon rims - 135mm QR front hub that can convert to 142 TA later - 170mm QR rear hub that can convert to 177 TA later - center drilled - presta valve - 3k matte finish - hope pro2 evo fatsno 6-bolt disc hub in BLUE (can you get this hub in blue?) - black Sapim CX-RAY spokes - blue nipples (whichever model is most durable in wet conditions) - shimano compatible 9/10 free hub Thanks! Chris.

Light-Bicycle 2015/09/29

Hello Chris, Thanks for your inquiry. The price for wheelset with following specs is USD1133/pair, the delivery cost is USD92 for this wheelset to USA by EMS. - Rims: 90mm wide hookless, 3k, matte, center drilled, no decal - Hubs: blue, Hope Fatsno hubs, front 15*142mm/ rear 12*177mm, shimano 9/10S - Spokes: black sapim cx-ra spokes - Nipples: blue PT734 pillar alloy Thanks, Light-bicycle

Scott 2015/11/17

Im interested in a similar package as the above with a couple of adjustments. - 90 mm double wall carbon rims - 135mm QR front hub that can convert to 142 TA later - 190mm QR rear hub - center drilled - presta valve - 3k matte finish(Plain no pattern Mat finish) - hope pro2 evo fatsno 6-bolt disc hub in Black - black Sapim CX-RAY spokes - White nipples if not available Black(whichever model is most durable in wet conditions) - shimano compatible 9/10 free hub

Light-Bicycle 2015/11/18

Hello Scott, Thanks for your inquiry. The 90mm wide 26er wheelset with following specs is USD1164/pair (USD1164-USD20=USD1144). -Rims: RSNOW02, 90mm width, center drilling, 650 /-30g, with presta valve. 3k without painting? Please find attached rims profile. -Hubs: Black, Hope fatsno front 135mm QR/ rear 190mm QR for Shimano 9/10S. But we don’t have the convert kit here. You need to buy it separately. -Spokes: Black, Sapim cx-ray -Nipples: Alloy or brass? Silver or brass? Thanks, Light-bicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

andrew 2015/08/20

hi. Does the Nipple need special washers to install in the rim? Or is it ok to directly put Nipple inside the rim?

Light-Bicycle 2015/08/21

Hello Andrew, Thanks for your inquiry. And all our wheelsets are built without washers. The spoke hole strength is ok for without washers, and you can pi the nipple inside the rim directly. RSNOW02 (90mm wide 26er fat bike rim): 650 /-15g, USD268/pcs Please find attached rim profile. Rim weave in 3k matte & UD matte are more popular. Do you like it? For drilling, do you like centered drilling, offset drilling or dual spoke hole pattern? Please find attached profiles. Thanks, Light-bicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

mervin 2015/06/14

Is the discount still applicable now if I get 2 rims?

Light-Bicycle 2015/06/15

Hello Mervin, Thanks for your inquiry. Yes, the discount for 90mm width fat bike rim is available. Please find attached rim cross-section drawing. RSNOW02 (90mm wide 26er fat bike rim): 650 /-15g, USD268/pcs (USD278-USD10=USD268) For rim weave, do you prefer 3k or UD? Matte or glossy? 32H? For drilling, do you like centered drilling, offset drilling or dual spoke hole pattern? Please find attached profiles. Thanks, Light-bicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

matt 2014/12/20

How many rims in one box for the $64 shipping to the USA? Want to do a bulk order for our team.

Light-Bicycle 2014/12/22

Hello Matt, Thanks for your inquiry. The shipping cost USD64 is for two fat bike rims to USA. We use EMS delivery. It depends on the weight. If you order other rims also, the shipping cost will be much cheaper. How many rims do you like to order? Then we can get the shipping cost accordingly for you. Christmas is coming, we have special Christmas discount for fat bike rims as below. 2pcs~4pcs: USD10 cheaper for each rim 5pcs~10pcs: USD15 cheaper for each rim 11pcs~20pcs: USD30 cheaper for each rim More than 20pcs: USD40 cheaper for each rim Fat bike rim (90mm wide 26er rim): 650 /-30g, USD268/pcs (USD278-USD10=USD268) Please find attached cross-section drawings of fat bike rim. For drilling, do you like centered drilling, offset drilling or dual spoke hole pattern? Please find attached profiles. For rim weave, do you prefer 3k or UD? Matte or glossy? 32H? Thanks, Light-bicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Brian 2014/12/10

How do I get the Christmas discount. I put the rims I want in a basket but I do not see the discount applied. Thanks Brian

Light-Bicycle 2014/12/12

Hello Brian, Thanks for your inquiry. We can give you USD10 cheap for each rim as a Christmas discount. If you like to order, we can create an invoice for you. Fat bike rim (90mm wide 26er rim): 650 /-30g, USD268/pcs (USD278-USD10=USD268) Please find attached cross-section drawings of fat bike rim. For drilling, do you like centered drilling, offset drilling or dual spoke hole pattern? Please find attached profiles. For rim weave, do you prefer 3k or UD? Matte or glossy? 32H? The shipping cost is USD64 for two fat bike rims to USA by EMS. Thanks, Light-bicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Evan 2014/11/23

What is the total cost for two rims 32 hole centered UD matte finish presta valve shipped to USA? Do you offer custom decal with clear coat for extra charge? Thanks

Light-Bicycle 2014/11/23

Hello Evan, Thank you for your inquiry. Currently, there is Christmas discount for fat bike rim. Please find attached rim profile. RSNOW02: UD, matte, center drilling, 32H, USD278-USD15= USD263/pcs And the delivery cost is USD64 for 2pcs rims to USA by EMS. For custom graphic cost, there will be extra cost. You can email us the graphic you like. Then i can quote accordingly for you. Thanks, Light-bicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Riccardo 2014/11/19

hallo! i'm interesting in christmas discount

Light-Bicycle 2014/11/20

Hello Riccardo, Thanks for your inquiry. Christmas is coming, we have special Christmas discount for fat bike rims as below. 2pcs~4pcs: USD10 cheaper for each rim 5pcs~10pcs: USD15 cheaper for each rim 11pcs~20pcs: USD30 cheaper for each rim More than 20pcs: USD40 cheaper for each rim Fat bike rim (90mm wide 26er rim): 650 /-30g, USD268/pcs (USD278-USD10=USD268) For rim weave, do you prefer 3k or UD? Matte or glossy? 32H? For drilling, do you like centered drilling, offset drilling or dual spoke hole pattern? Please find attached profiles. The shipping cost is USD64 for two fat bike rims to Italy by EMS. If you’d like to order, we can create an invoice for you. Thanks, Light-bicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

See all 23 customer reviews>>

Get in touch

Feel free to leave a comment if you have any questions or suggestions on our products or other issues.

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Build Your Drift RIM RSNOW02 Sand, Snow, Single Track

Overview

Specs

Warranty

In The Box

Rims

Full Custom

Overview

Specs

Rims

Full Custom

Warranty

In The Box

Gallery
