Build Your Recon RIM RM26C05

All wheels are 100% customizable at Light Bicycle. If your preferred specs are not listed, feel free to contact us (sales@lightbicycle.com) with your special requirements described.


Buy wheelset

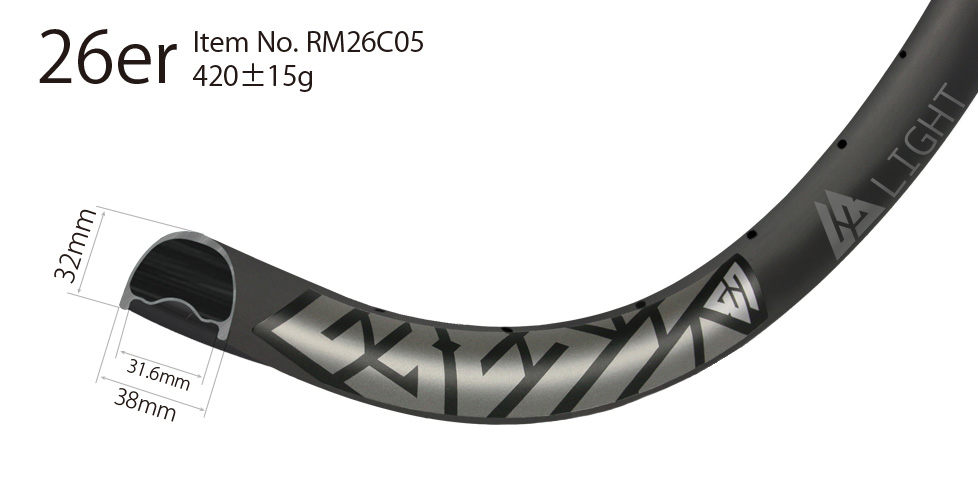

RIM SPECS

  • Model RM26C05
  • Material Toray T700 & T800 Premium Carbon Fiber
  • Size 26" (ETRTO 559mm)
  • Series RECON
  • Intended Use All Mountain/Enduro
  • Bead Type Hookless
  • Tubeless Capable Yes
  • Inner/Outer Width 31.6mm/38mm
  • Depth 32mm
  • ERD 511mm (not including nipple head dimension)
  • Rim Weight AM 420+/-15g, HD485+/-15g
  • Profile Symmetric (0mm)
  • Max Cyclist Weight (on flat ground) 140kgs/ 309lbs
  • Spoke Hole Angle ±6°
  • Spoke Tension 115~130kgf front disc side and rear drive side
  • Max Tire Pressure 40psi/ 2.75bar
  • Recommended Tire Width 2.3" ~ 3.1"

TECH

Looking for the playfulness of 26'' rims in a package tough enough to handle whatever the mountain throws at it? The AM632 (RM26C05) offers a wide profile, modern shape, and versatility to handle everything from a trail tire to a high volume all-mountain or reinforced enduro tire. The EN version has an extra wrap of 3k carbon fiber around the nipple bed, reinforced sidewalls to support G-Out forces, and increased rim stiffness, increasing suitability for aggressive riders over 200 pounds.


Learn More >>

WARRANTY

For Non-Pro Series Rims: From the date of purchase, 3-year Standard Warranty.

For Pro Series Rims: From the date of purchase, 5-year Pro Warranty as standard and an upgraded optional lifetime Premium Warranty with minimum charge.

Crash Replacement: It is applicable with the same period as the warranty time range that you purchased for the rims with 10% /25% discount for Non-Pro series /Pro series.

Learn More >>


WHAT IS IN THE BOX


Looking for the playfulness of 26'' rims in a package tough enough to handle whatever the mountain throws at it? The AM632 (RM26C05) offers a wide profile, modern shape, and versatility to handle everything from a trail tire to a high volume all-mountain or reinforced enduro tire. The EN version has an extra wrap of 3k carbon fiber around the nipple bed, reinforced sidewalls to support G-Out forces, and increased rim stiffness, increasing suitability for aggressive riders over 200 pounds.

Light Bicycle : Rims: RM26C05 All Mountain Braided UD Glossy 24/32H External Hole No Drain Holes With Access Holes Sticker: Light Bicycle - Grey
1
Joe : I’m interested in your carbon rims but I’d like to run higher tyre pressure. Do you sell rims that will take 60 psi?
Singapore
2
James : Santa Cruz Blur TRc
Australia
1
Geoffrey : This is when i laced up my hadleys for the first time myself. So happy with my first wheel build.these were 26er down hill HD 38mm wide. Best wheels i have ever owned
Australia
1
Thomas : Finally finished the winter upgrade of my Liteville 301 Mk 11. Total weight now is 13kg.w.o. pedals. Hammered down the great trails of the Val Venosta in Italy. All good with the wheels just I was shaken up. Can recommend the rims of LB to anyone.
Germany
1
Folken : Zerode G2 with LB RM26C05 "UST style" rim without nipple installation holes in the rim bead. Tubeless setup is easy AF
Finland
1
Ray : RM26C05 on SantaCruz V10.5
Hong Kong
3
Steve : RM26C05 (DH) with Sapim washers and Schwalbe Procore: Schrader holes drilled to 8.2mm and ist getting pretty close at the Schrader valve stem ;P
Germany
1

View More Reviews >>

COMMENTS

E

Eric 2022/09/12

I am looking for a custom 26 inch rim for my ebike project. I only need a wide rim for tire 26x2.2 with the following rim profile : Inner Width: 26mm Outer Width: 35mm Depth: 42mm or 45mm An aluminum rim would also work for me as weight is not important. Would that be possible ? Thanks


LightBicycle 2022/09/13

Hi Eric, 42-45mm depth is unusual for MTB bike rims. Are you sure this is what you want? It would be super stiff and uncomfortable to ride. Especially for heavy bikes on trails. Which is why majority of MTB rims are under 35mm deep. The RM26C03 might be a good fit for your requirements. We can make a reinforced version to make it stronger. As per e-bike's profile, we suggest adding 50-100g carbon fiber to key parts of the rims. Let me know your thoughts. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

T

T 2022/04/09

Will the NA warehouse have any RM26C03 or RM26C05 in stock soon. Really would like to purchase a set of rims, but I am turned off by the shipping cost.


LightBicycle 2022/04/09

Hi Sir, Sorry, we will not have RM26C03 and RM26C05 26er bike rims in the NA warehouse stock. You could order from the Global warehouse directly. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

A

Alex 2021/01/24

Hello. I’m interested in 26 inch Recon PRO rims. Is it any chance you will make it? Or may be it is possible to get a pair on special order? Thank you


LightBicycle 2021/01/25

Hi Alex, Currently, we only have 26er bike rims in recon series. Does it work for you? Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

M

Morné 2018/06/15

Hi Do you recommend using nipples washers when lacing these rims? Thanks Morné


LightBicycle 2018/06/15

Hi Morne, We do not use nipple washers here for building wheels. The spoke holes’ wall strength is strong enough. But if you insist to use nipples, it is okay if you do not mind weight adding. Sapim nipple washers are okay if you like. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

M

Mitch 2017/04/26

Would love to buy a set of 26" x 40mm (inside) rims. please please please


LightBicycle 2017/04/27

Hello Mitch, Thanks for your inquiry. Please find attached rim profile of our new 26er plus rim. RM26C06 (46mm plus): 450g /-15, $195 each Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

J

Jose 2017/03/19

Hello, What is the difference between the 26CO5 and the RM2605 rims? I will use the rims for Enduro style riding...


LightBicycle 2017/03/20

Hi Jose, Both 26C05 and RM26C05 are the same. It refers to 38mm wide 26er rim. Do you like to compare the RM26C03 and RM26C05? If so, may I know if you ride aggressively? What the tire width you will use? What is your weight? Then we will do some recommendations. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

N

nigel 2017/01/09

Hi, Do you plan to build a 40mm / 50mm 26 rim? I am quite interested in converting my 650b bike to 26 ? Cheers


LightBicycle 2017/01/09

Hello Nigel, Thanks for your inquiry. Are you looking for 26 plus rim? Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

R

Ray 2016/07/20

Hi, I've just ordered a 26er DH rim, what is the max and min pressure use with tubeless tire the rim? I found 2 max pressure on the product page (70 and 40 psi). Thanks.


Light-Bicycle 2016/07/20

Hello Ray, Thanks for your support. The max tire pressure for our RM26C05 rim is 70psi, and the recommend max tire pressure is 40psi. If the tire pressure is under 40psi, that is fine. But if you inflate over 70psi, the tire or the rim will be damaged. Thanks, Light-bicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

P

Patrick 2016/07/10

Can I get a pair of these with the newer black and grey decals like on the-26er Hand-built Endro Downhill carbon fiber wheelset 38mm wide tubeless compatible? Thanks


Light-Bicycle 2016/07/11

Hello Patrick, Thanks for your inquiry. Sure. Please find attached picture. Is that what you like? It is free. Thanks, Light-bicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

W

Will 2016/05/18

I am looking at the 26" RM26C05 Carbon Wheels. Do you have or can you get i9 hubs?


Light-Bicycle 2016/05/19

Hello Will, Thanks for your inquiry. Currently, only Hope and DT Swiss hubs are available. Does that work for you? Currently, we do not have any I9 hubs. Thanks, Light-bicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

F

Frank 2016/05/17

What's the effective diameter (internal diameter) of these Rims? I'm trying to figure out the correct spoke length.. thanx


Light-Bicycle 2016/05/18

Hello Frank, Thanks for your support. The 38mm wide 26er rim ERD is 515mm (not including nipple head dimension). Thanks, Light-bicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

M

martha 2016/05/16

Hi Can this rim take 3" tyres?


Light-Bicycle 2016/05/17

Hello Martha, Thanks for your inquiry. Yes, the RM26C05 is okay to work with the 3’’ tyres. Below is a link for reference. https://www.lightbicycle.com/tire-size-chart-for-bicycle-rim.html Thanks, Light-bicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

F

Fuzz 2016/04/23

Hi do you guys ship to singapore? Would you care to provide the shipping cost and the hubs offered with wheel builds? Thanks


Light-Bicycle 2016/04/25

Hi Fuzz, It's OK to ship the wheels to Singapore. Could you please fill out this form? Then I will make the price quotation and tell the wheels weight accordingly. https://www.lightbicycle.com/custom-mountain-wheels.html Thanks, Light-bicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

S

Stefan 2016/04/19

Hello Team Light Bicycle, the Schwalbe Procore valve I want to use, doesn't fit through the rim hole. It has 8.2mm Diameter. Is it possible to drill the hole bigger without damaging the rim? mb


Light-Bicycle 2016/04/20

Hello Stefan, Thanks for your inquiry. It's OK to drill the nipple hole(Schrader) with 8mm or 8.5mm. Is it OK for you? May I know which rim you'd like? Then I can mail the cross-section drawing of the rim and more info. accordingly. Thanks, Lightbicycle


S

Stefan 2016/04/20

Thanks for the quick answer =) Yes, 8.5mm would be big eneough for the Procore Shrader. Its a RM26C05 (HD) rim, but I already recieved it. Is it possible that I drill it to 8.5mm without damaging the rim? mb


Light-Bicycle 2016/04/21

Hi Stefan, We usually drill the nipple hole with professional drilling machines. If you drill the nipple hole by yourself, I am afraid you will damage it. Could you please ask your local shop and check whether they provide drilling service? Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

M

Mike 2016/01/18

Hello I have dual suspension bike and am in the process of adding an Bafang 1000 W mid drive motor I am in the initial stages of putting together an action plan with regards to strengthening all aspects - (wheelset in this particular step)


Light-Bicycle 2016/01/19

Hello Mike, Thanks for your inquiry. Did you mean you would like to mount our rims on your custom motor bike? Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.
