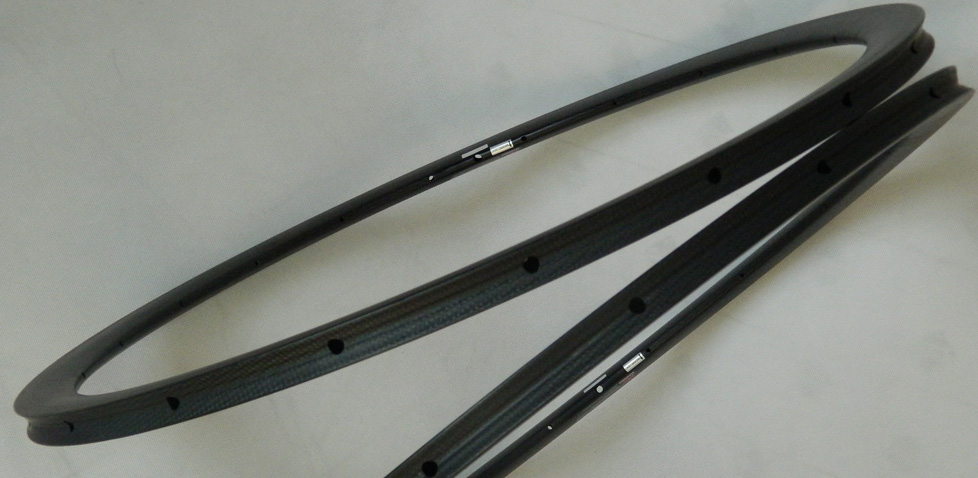

Build Your RIM RR38T02 road bike/cyclocross

All wheels are 100% customizable at Light Bicycle. If your preferred specs are not listed, feel free to contact us (sales@lightbicycle.com) with your special requirements described.


RIM SPECS

  • Use road bike/cyclocross
  • Size 700c
  • Material full carbon Toray T700
  • Type tubular
  • Weight 330g+/-15
  • Spoke Hole 16H to 36H
  • Internal hole customized
  • ERD 564mm
  • Outer width 23mm
  • Depth 38mm
  • Max weight limit 115kg
  • Max spoke tension 180kgf
  • Max tyre pressure 160psi
  • Finish matte/glossy
  • Decal customized
  • Weave UD/3K/12K
  • Warranty 15 Months
  • Standard En Standard

Read more for actual road tire width

TECH

wider 700c 38mmm tubular cross rims are super light and with wider with, so the strength is much improved. It is the best choice for light-weight road wheels. 23mm wider cross wheels rim can be for V-brake & Disc brake.

WARRANTY

For Non-Pro Series Rims: From the date of purchase, 3-year Standard Warranty.

For Pro Series Rims: From the date of purchase, 5-year Pro Warranty as standard and an upgraded optional lifetime Premium Warranty with minimum charge.

Crash Replacement: It is applicable with the same period as the warranty time range that you purchased for the rims with 10% /25% discount for Non-Pro series /Pro series.

Overview

Specs

Warranty

In The Box

wider 700c 38mmm tubular cross rims are super light and with wider with, so the strength is much improved. It is the best choice for light-weight road wheels. 23mm wider cross wheels rim can be for V-brake & Disc brake.

Gallery

Be the first to review this product and help riders of your style choose the most suited.

Write a review now >>

If you've got a longer story to tell and a few pictures won't cut it, check out our storytelling feature and consider sharing your story!

COMMENTS

J

Justin` 2017/02/12

Hello, can you send pictures of the 12k glossy rim?

LightBicycle 2017/02/13

Hello Justin, Thanks for your inquiry. Please find attached picture of the rims weave. 3k/12k/UD are the 3 choices for cosmetic appearance. The rim strength & weight is virtually identical. 3k matte & UD matte are more popular. Here is a link to help you choose which you prefer. http://www.light-bicycle.com/the-3k-12k-ud-carbon-fiber-weave-for-rim-and-frame.html Thanks, Lightbicycle

REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

D

designo 2016/05/22

Would you send me the cross section drawings for this 38mm deep x 23mm wide rim and the 50mm deep x 23mm wide rim; both with brake tracks. Thanks.

Light-Bicycle 2016/05/23

Hello Designo, Thanks for your inquiry. Please find attached rims profile of the 23mm wide 38mm and 50mm rims, and let us know if there is any questions. Thanks, Light-bicycle

REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

D

Damian 2016/04/08

Hello! I'm just waiting for the delivery of these rims. What size tubular will be better: 22mm or 25mm? Outer width is 23mm, any sugestion? Best regards, D.

Light-Bicycle 2016/04/09

Hi Damian, Thanks for your inquiry. There are 2 kinds of road rims here currently. One is V shape with 23mm outer width(old design) and the second one is U shape with 25mm outer width(new design). The U shape rim will be more durable and stronger than the V shape rim. Please find the attached cross-section drawing of the tubular rim. RRU35T02, 25mm wide, U shape: $145/pcs, 360 /-15g RR38T02, 23mm wide, V shape: $133/pcs, 340 /-15g Thanks, Lightbicycle

REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

S

Stamatis 2016/02/21

Hi there I want to ask what is the shipping cost for one 38 mm tubular rim to Greece Athens? Thank you

Light-Bicycle 2016/02/22

Hello Stamatis, Thanks for your inquiry. The shipping cost is USD58.4 for one rim to Greece by EMS. RR38T02 (23mm width): 340 /-15g, $133/pcs Currently, we have wider 25mm U shape 35mm deep rim. The tubular rim road are much wider, providing wider gluing surface for sew-up tire, allowing a more even contact surface for gluing your tubular tire to the road tubular rim. Do you like it? Thanks, Lightbicycle

REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

A

Abel 2015/07/11

Hey just a quick question can these be used for track bikes?

Light-Bicycle 2015/07/13

Hello Abel, Thanks for your inquiry. Yes, the 38mm tubular rims can be used for track bikes. Some of our customers also ordered our rims to build with the wheels with track hubs. RR38T02 (23mm wide 38mm tubular rim): 340 /-15g, USD133/pcs Please find attached rim pro file. What is the spoke count do you like for front & rear? For rim weave, do you prefer 3k, 12k or UD? Matte or glossy? Please find below link. http://www.flickr.com/photos/light-bicycle/sets/72157631432948364/detail/ Currently, we also have 25mm wide U-shaped 35mm tubular rims. It is much wider and stronger. Would you like to have a try? Thanks, Light-bicycle

REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

E

Enrique 2015/05/05

Hello, I am looking for 38mm deep carbon tubular U-shape matte finish with wider rims (25mm) and 28 hole rim cyclocross disc bake no braking rim surface. Do you have these? What is the shipping cost to the USA? Thank you.

Light-Bicycle 2015/05/06

Hello Enrique, Thanks for your inquiry. RR38T03 (25mm wide U-shaped 38mm tubular rim): 340 /-15g, USD133/pcs Please find attached rim cross-section drawing. It is ok to do matte, 28H, and no braking surface. Do you prefer UD matte, 3k matte or 12k matte? Thanks, Light-bicycle

E

Enrique 2015/05/06

Great! Yes, matte, 28H, no braking surface, U-Shaped, 25mm disc brake, 38mm depth, and UD matte. Please send invoice and payment information to the email listed. Perfect!

Light-Bicycle 2015/05/07

Hello Enrique, Thanks for your inquiry. We have (25mm wide U-shaped 35mm tubular rim): 360 /-15g, USD133/pcs Please find attached rim cross-section drawing. It is ok to do matte, 28H, and no braking surface. Do you prefer UD matte, 3k matte or 12k matte? Thanks, Light-bicycle

REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

L

Lukas 2015/05/03

Whats is the shipping cost for one or two 700c 38mm tabular rims to Poland?

Light-Bicycle 2015/05/04

Hello Lukas, Thanks for your inquiry. The shipping cost is USD58.4 for one rim, and USD68.1 for two rims to Poland by EMS. You can save much shipping cost if you order a pair of rims. RR38T02 (23mm wide 38mm tubular rim): 340 /-15g, USD133/pcs Please find attached rim cross-section drawing. For rim weave, do you prefer 3k, 12k or UD? Matte or glossy? Front 20H/ rear 24H? Please find below link. http://www.flickr.com/photos/light-bicycle/sets/72157631432948364/detail/ Currently, we also have new 25mm wide U-shaped 35mm tubular rim. It is much wider and stronger. Do you like it? Thanks, Light-bicycle

REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

L

Lukas 2015/05/03

Hi, Whats is the shipping cost for one or two 700 c 38mm tabular rims to Poland?

REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

J

Jens 2015/04/01

Hi, What is the shipping cost for two 700c 38mm tubular rims to Denmark? Regards Jens

Light-Bicycle 2015/04/02

Hello Jens, Thanks for your inquiry. The shipping cost is USD68.1 for two rims to Denmark by EMS. For rims, we also have new 25mm wide U-shaped 35mm tubular rim. It is much wider and stronger. Most customer chose the new one. Do you like it? Please find attached rims cross-section drawing. RR38T02 (23mm wide 38mm tubular rim): 340 /-15g, USD133/pcs RRU35T02 (25mm wide U-shaped 35mm tubular rim): 360 /-15g, USD145/pcs For rim weave, do you prefer 3k, 12k or UD? Matte or glossy? Front 20H/ rear 24H? Please find below link. Thanks, Light-bicycle

M

Matt 2015/04/29

Where is the link to order this rim: "RRU35T02 (25mm wide U-shaped 35mm tubular rim): 360 /-15g, USD145/pcs" ?

Light-Bicycle 2015/04/30

Hello Matt, Thanks for your inquiry. We have sold lots of U35mm tubular rims. Attached is the rim cross-section drawing. But we are too busy to release it on our website. Sorry for the inconvenience. If you’d like to order, we can create an invoice for you. RRU35T02 (25mm wide U-shaped 35mm tubular rim): 360 /-15g, USD145/pcs For rim weave, do you prefer 3k, 12k or UD? Matte or glossy? Front 20H/ rear 24H? Please find below link. Thanks, Light-bicycle

REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

A

Adam 2015/03/31

Intersted in the 700cc 38mm tubular rims 24H front / 28H rear built up to disc hubs. 12mm thru axle in front and135mm rear spacing. What hubs do you offer for these specs?

Light-Bicycle 2015/04/02

Hello Adam, Thanks for your inquiry. For hubs, we only have front 15mm/20m thru axle, no front hub with 12mm thru axle. Is that ok for you? For rear hub, we have D772-135mm standard qr for Shimano 8/9/10 disc. Do you prefer black or red? For rims, currently we have new 25mm wide U-shaped 38mm tubular rim. It is much wider and stronger. Do you like it? Please find attached rim cross-section drawings. RR38T02 (23mm wide 38mm tubular rim): 340 /-15g RRU35T02 (25mm wide U-shaped 35mm tubular rim): 360 /-15g Front 24H/ rear 28H is ok. Do you prefer 3k, 12k or UD for rim weave? Matte or glossy? Please find below link. Thanks, Light-bicycle

REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

A

AV 2014/08/07

What is the cost to ship two rims to the United States, California? How long will it take if I place the order today (Thursday, Aug 7 PST)? Thank you

Light-Bicycle 2014/08/08

Hello sir, Thanks for your inquiry. Please find the attached cross-section drawing of the 23mm wide 38mm tubular rim. For the rims, do you prefer UD, 3k or 12k? Matte or glossy? Front 20H/rear 24H? http://www.flickr.com/photos/light-bicycle/sets/72157631432948364/detail/ The price is USD133/pcs and the shipping cost is USD50 for 2pcs rims to USA by EMS. Thanks, Light-bicycle

REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

B

Brian 2014/07/21

Hello, Can these rims be produced without a brake track? I am looking for a disc rim for cyclocross that is 23-25mm wide. Thank You, Brian

Light-Bicycle 2014/07/22

Hello Brian, This is Carolin from Light-Bicycle. Thanks for your inquiry. Please find the attached cross-section drawing of the 23mm wide 38mm tubular rim. For the rims(no braking track), do you prefer UD, 3k or 12k? Matte or glossy? 32H? http://www.flickr.com/photos/light-bicycle/sets/72157631432948364/detail/ If you’d like to order, I can create an invoice for you. Thanks, Light-bicycle

REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

J

Jonas 2013/10/16

Do you have any cross-section drawing of these?

Light-Bicycle 2013/10/17

Hello Jonas, Thanks for your inquiry. Please find the attached cross-section drawing of the wide 38mm tubular rim. For the rims, do you prefer UD, 3k or 12k? Matte or glossy? Front 20H/ rear 24H? http://www.flickr.com/photos/light-bicycle/sets/72157631432948364/detail/ Cheers, Light-bicycle

REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

J

Jean-Michel 2013/10/09

Hi! I intend to use the freewheels and rays of my Dura Ace C24CL wheels with your road/cyclocross rims in 38mm. I have 2 questions: Will the Dura Ace rays fit? Also, there is 16 rays at front and 20 at back on the C24CL. I weight around 82 Kg, sometimes a bit less. Is the amount of rays enough for your rims? On the Dura Ace wheels it is plenty enough as ther are very strurdy. But what about your rims durability? Thanks a lot!

Light-Bicycle 2013/10/10

Hello Jean, Thanks for your inquiry. For our 38mm tubular rim, it is with 23mm wide, and it is pretty strong. You like front 16H/ rear 20H, correct? What is your weight? Then i can check whether it is strong enough fory our weight. Normally, it is front 20H/rear 24H. If you are not a large rider, it is ok to manufacture front 16H/ rear 20H. Thanks, Light-bicycle

J

Jean-Michel 2013/10/10

Hi Nancy, Thanks ! I am sure it is not strong enough for me, I weight around 82Kg, /- 2 Kg. To tell you the truth, I have revised what I want, and was about to order a 50mm 28h rear rim, along with a 38mm 28h front rim. I want to be sure they will last and stay true. I am a pretty powerful sprinter, and roads here are often not really smooth! Do you think that will be strong enough for me? I will also need length of rays needed.neeneeneeded! To tell you the truth, I have revised what I want, and was about to order a 50mm 32h rear rim, along with a 38mm 28h front wheel. That may be overkill, but I want to be sure they will last and stay true. I am a pretty powerfull sprinter, and roads here are often not really smooth! Please tell me if 38mm 28h front/ 50mm 32h rear is too much, and if 38mm 24h front/ 50mm 28h rear will be sturdy enough for me! Thank you very much, J-Michel

Light-Bicycle 2013/10/11

Hello Jean, My suggestion is front 24H 38mm/ rear 28H 50mm. It will be strong enough. Thanks, Light-bicycle

REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

R

Richie 2013/08/04

Hi there Sorry, was wrong in last message. 28 spokes front and 32 rear! Thanks Richie

Light-Bicycle 2013/08/05

Hello Richie, Thanks for your inquiry. For Novatec A291/F482 hubs, we only have front 20/rear 24. And we have Novatec A171/F172 hubs with front 28/rear 28, or front 32/rear 32. Is it ok for you? You can let us know which hub you prefer, then we can build the 38mm tubular accordingly. Do you like 3k/12k/UD for rims? glossy finish or matte? Thanks, Light-bicycle

REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.
